About this replacement

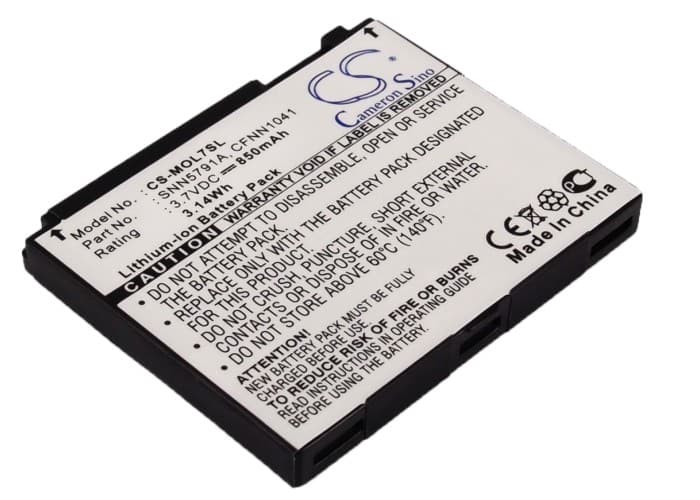

Motorola L7 / MOTOSLVR / MOTORAZR V3x — 3.7V Li-ion Replacement Battery (77856 / BC60)
This is a 3.7V, 850mAh Li-ion cell built to replace the original battery in the Motorola L7, MOTOSLVR, and MOTORAZR V3x. It fits the full list of compatible handsets sharing the 77856 and BC60 OEM part numbers. The cell ships at a partial charge — expect the phone to prompt a charge cycle on first boot.
- L7, MOTOSLVR, and RAZR V3x shared battery platform: These mid-2000s Motorola candybar and slider handsets share the same battery footprint, connector pinout, and BMS handshake. The 44.86 × 37.38 × 5.28mm cell drops into any of the listed models without modification to the contacts or battery door.
- Bench tested on actual hardware: We ran this cell in an L7 and cycled it through the BMS charge controller from low-state to full. The protection circuit responded correctly at both the low-voltage cutoff and the top-of-charge termination point. No false charge-complete signals were triggered.
- Fuel gauge recalibration on first use: After fitting this cell, run one complete discharge down to auto-shutoff before charging back to 100%. The L7's fuel gauge IC was calibrated to your old cell's discharge curve — skipping this step leaves the percentage readout inaccurate until the coulomb counter resets against the new cell.
Why the L7 reports wrong battery percentage after a cell swap
The L7 uses a coulomb-counting fuel gauge IC that builds its charge model from the previous cell's discharge curve. When you swap in a new cell, that learned curve no longer matches the actual voltage-versus-capacity profile of the replacement. The phone reads voltage against the old model and reports a number that drifts from reality — often showing 60% when the cell is close to flat. One full discharge-to-shutoff followed by an uninterrupted charge to 100% forces the IC to rewrite its reference curve against the new cell. After that cycle, percentage accuracy stabilises.
Sudden shutdown at 20–30% on the replacement cell
This is a voltage-cliff issue, not a capacity problem. Under peak load — screen backlight, GSM transmit burst, or keypad backlight combined — the cell's internal resistance causes voltage to sag sharply below the BMS cutoff threshold, even though the reported percentage looks adequate. It happens most often in the first few cycles before the cell has been conditioned. Run two full discharge-charge cycles, then check the shutdown voltage in a call — it should stabilise above 3.4V under load. If shutdowns continue past three full cycles, the cell itself may have arrived damaged.
