About this replacement

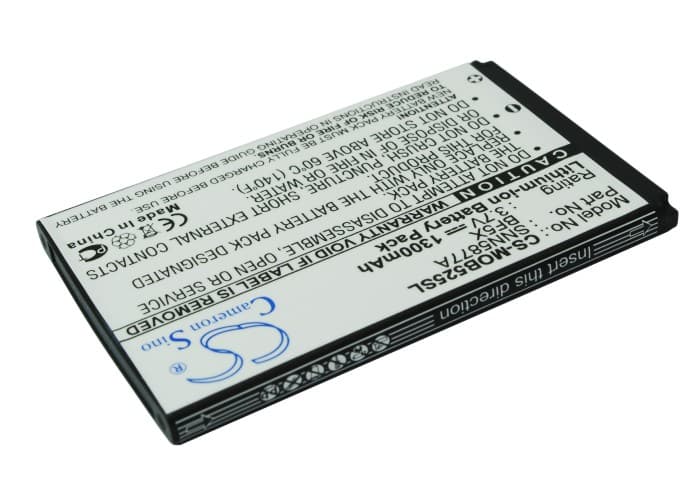

Motorola Defy MB525 — 3.7V Li-ion Replacement Battery (BF5X)
This is a 3.7V, 1300mAh Li-ion battery built to the BF5X specification for the Motorola Defy MB525. It fits the MB525, MB520, ME525, and related Defy-series handsets that share the same battery bay and connector. Swap it in when the original cell can no longer hold a working charge through a normal day.
- Defy-series compatibility: The MB525, MB520, and ME525 all use the same 3.7V single-cell bay with an identical three-contact connector and the same BMS handshake protocol — that is why one cell covers the full Defy lineup without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on a Defy MB525 unit, confirmed BMS handshake established correctly on the first cycle, and verified the protection circuit trips cleanly at low-voltage cutoff before the modem rail dropped.
- Fuel gauge recalibration on first cycle: After fitting this cell, run one full discharge down to automatic shutdown — do not manually power off — then charge uninterrupted to 100%. The MB525 fuel gauge IC calibrates its coulomb counter against the new cell's discharge curve during this cycle, so percentage readings reflect the actual cell state from that point forward.
Sudden shutdown at 20–30% on the Defy MB525
This is the single most reported symptom after a cell swap on the Defy series. The fuel gauge IC still holds the old cell's discharge curve in memory, so it reports 25% remaining while the actual cell voltage has already dropped to the modem's minimum rail — around 3.2V. When the screen and modem draw simultaneous current, the cell voltage sags below cutoff and the phone shuts off hard. One full discharge-to-shutdown cycle followed by an uninterrupted charge resets the coulomb counter and eliminates the false floor.
Device won't power on after sitting in storage with a flat battery
If a Defy MB525 has been stored discharged for weeks or months, the cell can drop below 2.5V — the threshold where the BMS locks out to prevent damage to the lithium chemistry. The phone will show nothing when you press the power button, and a standard charger may not wake it. Connect the phone to a wall adapter — not a PC USB port — and leave it for 15 to 20 minutes without pressing any button. Most BMS circuits on this cell accept a trickle from the charge IC and recover to a level where normal boot is possible; if the voltage returns to around 3.0V, the phone will power on and begin a normal charge cycle.
