About this replacement

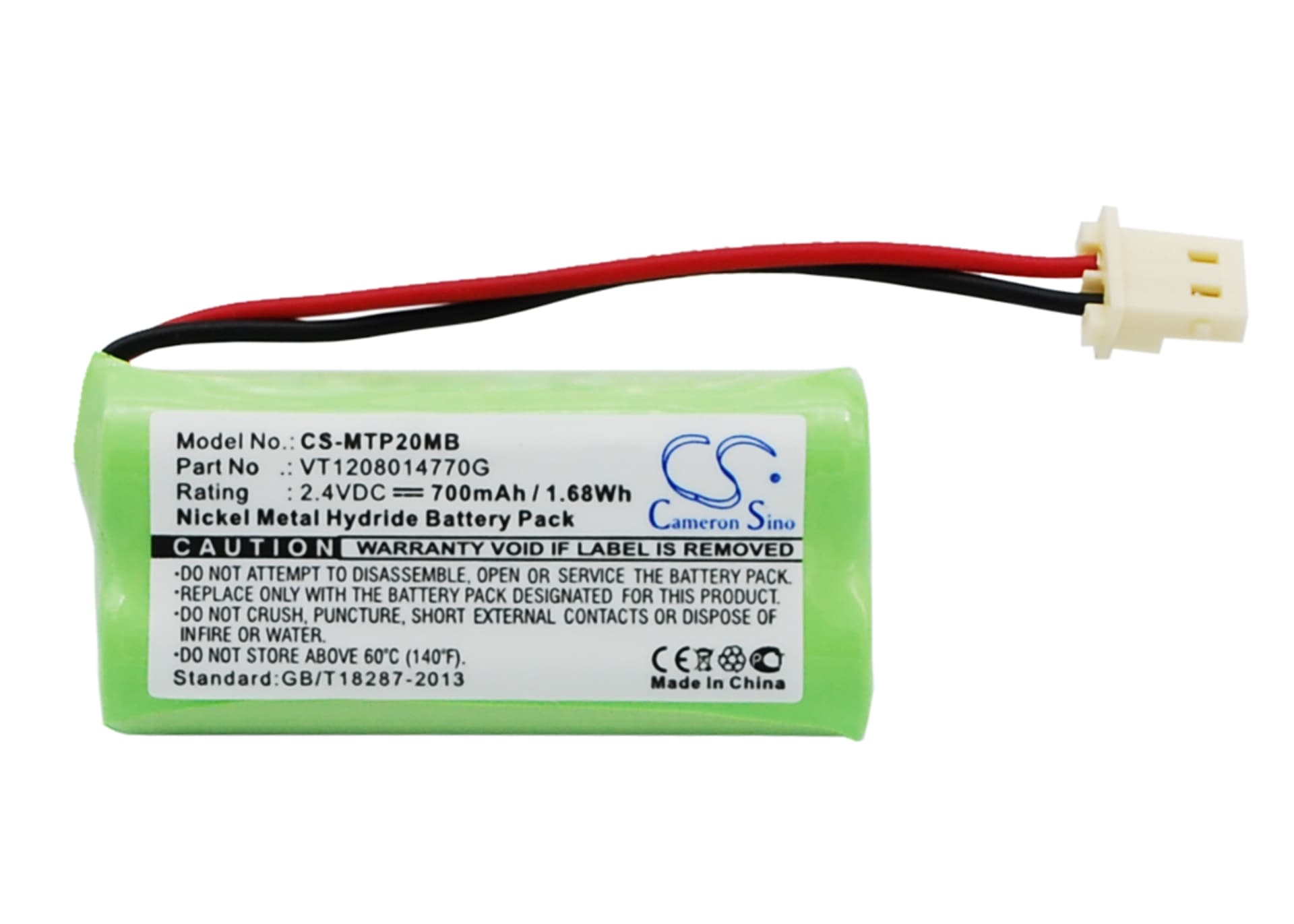

Motorola MBP20 / MBP161 Series — 2.4V Ni-MH Replacement Battery (VT1208014770G)
This is a 2.4V, 700mAh Ni-MH rechargeable battery for the Motorola MBP20 and MBP161 series parent unit. It fits the MBP20, MBP161, and MBP161TIMER audio baby monitors. The parent unit is a handheld receiver — this battery is what keeps it portable and untethered from the wall.
- MBP20 and MBP161 series compatibility: These three models share the same parent unit housing, the same 2.4V battery bay, and the same connector layout. One battery spec covers all three — no adapter or wiring change needed.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the MBP20 parent unit. The battery accepted a full charge without the BMS triggering an early cutoff, and the unit held its wireless link to the transmitter throughout.
- Re-pairing after battery swap: Cutting power completely to the parent unit clears its memory of the camera unit. After fitting this battery, power the parent unit on near the transmitter and run the pairing sequence — consult the MBP20 or MBP161 manual for the exact button steps on your model.
Why the MBP20 parent unit loses wireless connection after a battery replacement
The MBP20 parent unit stores its link to the transmitter in volatile memory. When battery voltage drops to zero — which happens during a swap — that pairing data is lost. This is not a fault with the new battery. It is how the unit's radio module initialises from a cold start. After fitting the replacement battery, charge the parent unit fully before attempting to re-pair, since the radio transmit power is voltage-sensitive and a low cell may not complete the handshake reliably.
Parent unit screen stays on all night and battery is flat by morning
The MBP20 parent unit draws significantly more current with the backlit display active than in audio-only mode. Leaving the screen on overnight is a sustained high draw that a 700mAh Ni-MH cell was not sized to handle across a full eight-hour stretch. Enable the screen timeout or VOX mode so the display only activates on sound detection. With the screen off and VOX active, the standby current drops sharply and the battery lasts through a normal night cycle.
