About this replacement

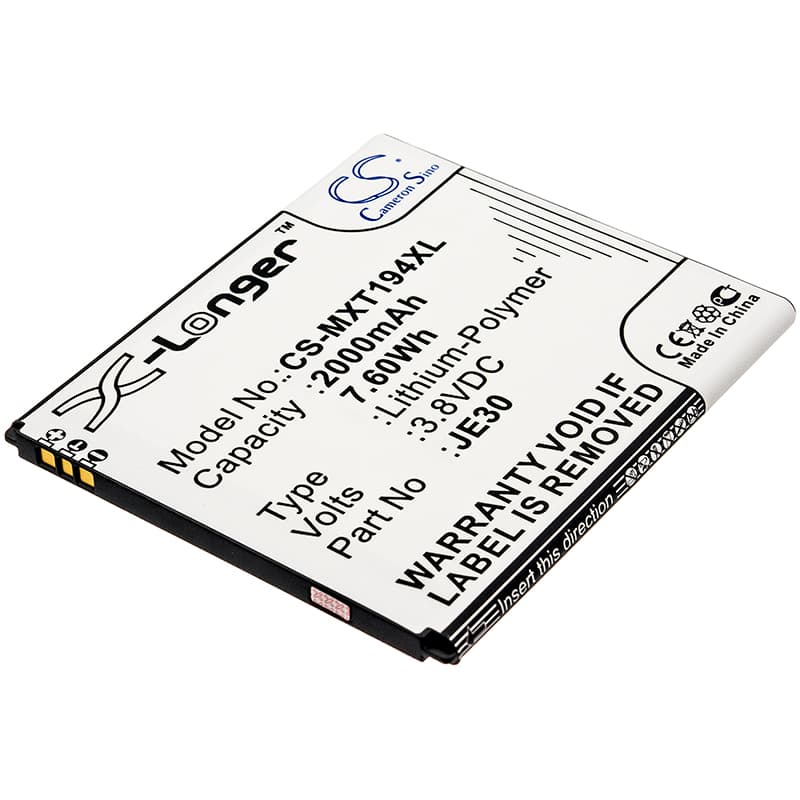

Motorola Moto E5 Play Go Edition — 3.8V Li-Polymer Replacement Battery (JE30)
The JE30 is a 3.8V, 2000mAh Li-Polymer cell for the Motorola Moto E5 Play Go Edition and its Dual SIM variants, including the TD-LTE and XT1920-15 models. It slots into the same bay as the original and connects to the same charge IC. Capacity is 7.6Wh — identical to the factory spec.
- Moto E5 Play Go Edition family fit: The Go Edition, Dual SIM, and TD-LTE variants all run the same 3.8V power rail and use the same JE30 connector pinout and BMS handshake — one cell covers all those SKUs without modification.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on an XT1920-15 unit. The BMS accepted the cell on first connection, charge termination triggered correctly at 4.35V, and the fuel gauge IC registered the cell without a manual reset.
- First-cycle fast charge protocol: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC recalibrate its coulomb counter against the new cell's discharge curve before high-current charging pushes elevated current into an uncalibrated cell.
Why the Moto E5 Play Go Edition reports wrong battery percentage after a cell swap
The fuel gauge IC on this phone stores a learned discharge curve from the previous cell. When a new cell goes in, that stored curve no longer matches the actual voltage-to-capacity relationship of the replacement. The gauge reads voltage correctly but maps it to the wrong percentage. One full discharge down to automatic shutdown followed by a full uninterrupted charge to 100% forces the IC to re-anchor its coulomb counter to the new cell. After that single cycle, percentage accuracy stabilises.
Sudden shutdown at 20–30% on the replacement cell
This happens when the cell voltage drops sharply under the combined load of the modem radio and screen backlight — a voltage cliff the fuel gauge IC did not predict. The IC sees the percentage as 25% but the cell cannot sustain the voltage under that instantaneous current draw, so the BMS trips and cuts output. The fix is the same recalibration cycle: drain fully to automatic shutoff, charge uninterrupted to 100%, and let the IC build an accurate curve for the new cell. If shutdowns continue after two full cycles, check that the battery connector is fully seated — a partial connection increases internal resistance and accelerates the voltage sag.
