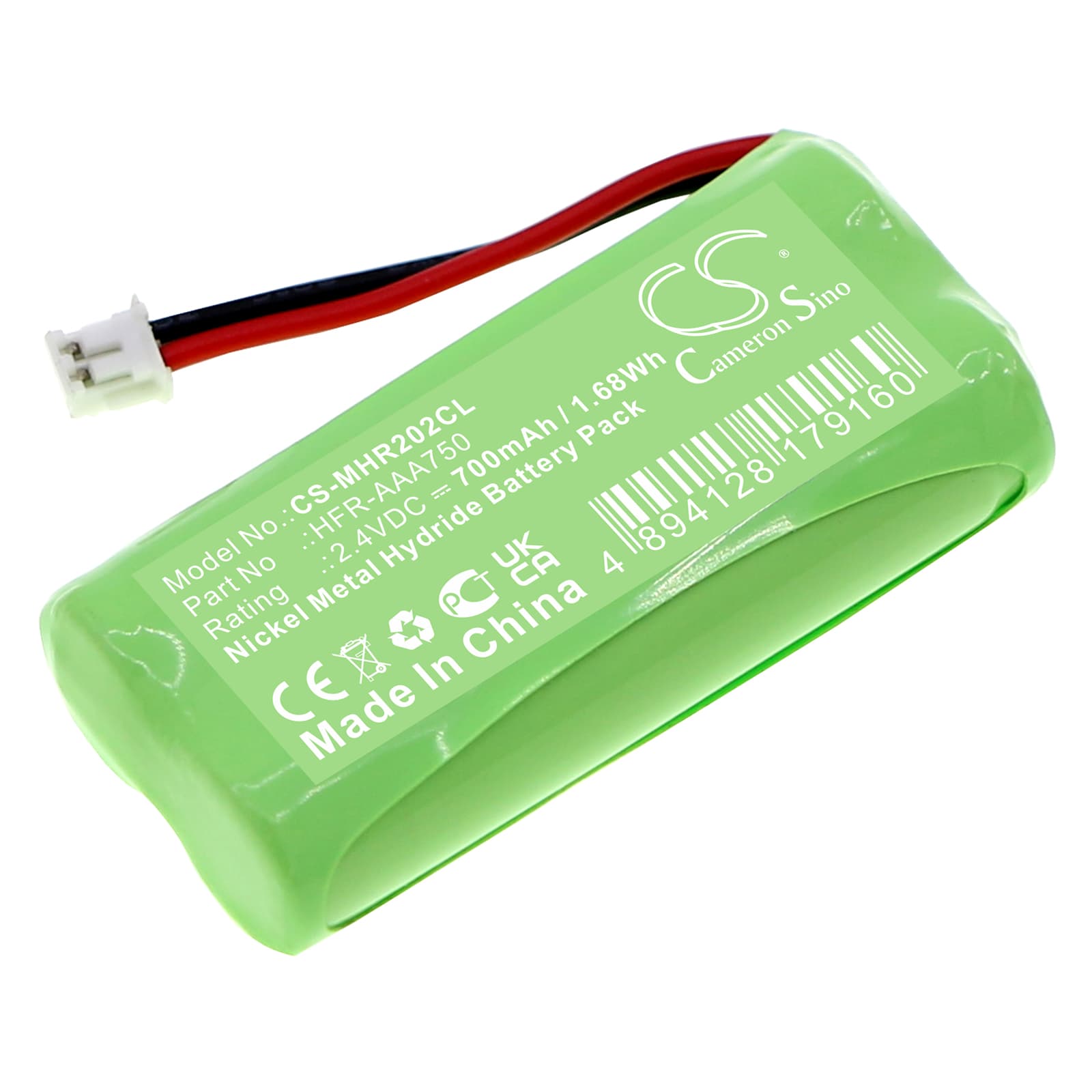

Motorola O201C / O202C — 2.4V Ni-MH Replacement Battery (HFR-AAA750)
This is a 2.4V, 700mAh Ni-MH battery pack for the Motorola O201C and O202C cordless handsets. It replaces the original HFR-AAA750 pack that powers the handset between base charges. If your handset cuts out early or won't hold a charge, this is the direct swap.
- O201C and O202C compatibility: Both models run the same 2.4V two-cell Ni-MH pack on the same connector and charge circuit. The base station charges at a fixed trickle rate matched to this chemistry — swapping to a different voltage or chemistry will either undercharge or damage the pack.
- Bench tested on actual hardware: We cycled this pack through charge and discharge on a matched 2.4V Ni-MH test rig. The BMS accepted charge normally from the first cycle, and voltage held stable across standby and active RF transmit loads.
- First-charge conditioning on Ni-MH handsets: After installing, seat the handset in the base and leave it for a full 16 hours before first use. Ni-MH cells shipped in partial-charge state won't reach rated capacity until they complete a slow, full first charge — short-cycling that first charge is the leading cause of reduced talk time complaints on new packs.
Range drops after battery swap on the O201C
DECT handsets regulate transmit power based on available battery voltage. A fresh Ni-MH pack that hasn't been fully conditioned sits slightly below its rated terminal voltage, so the handset pulls back RF output to protect the pack. The result looks like a range problem but is actually a voltage problem. Run two or three full charge-discharge cycles and the cells will reach their rated 2.4V — range returns to normal after that.
Base station shows no-charge indicator with new pack installed
Motorola cordless bases check for a minimum voltage threshold before starting the charge cycle. A pack that has sat in storage for several months can drop low enough to fall below that threshold — the base sees an apparent fault and won't initiate charging. Remove the handset, wait 30 seconds, and reseat it firmly. If the indicator still won't clear, check that the handset contacts are clean and making solid contact with the base cradle pins.
