About this replacement

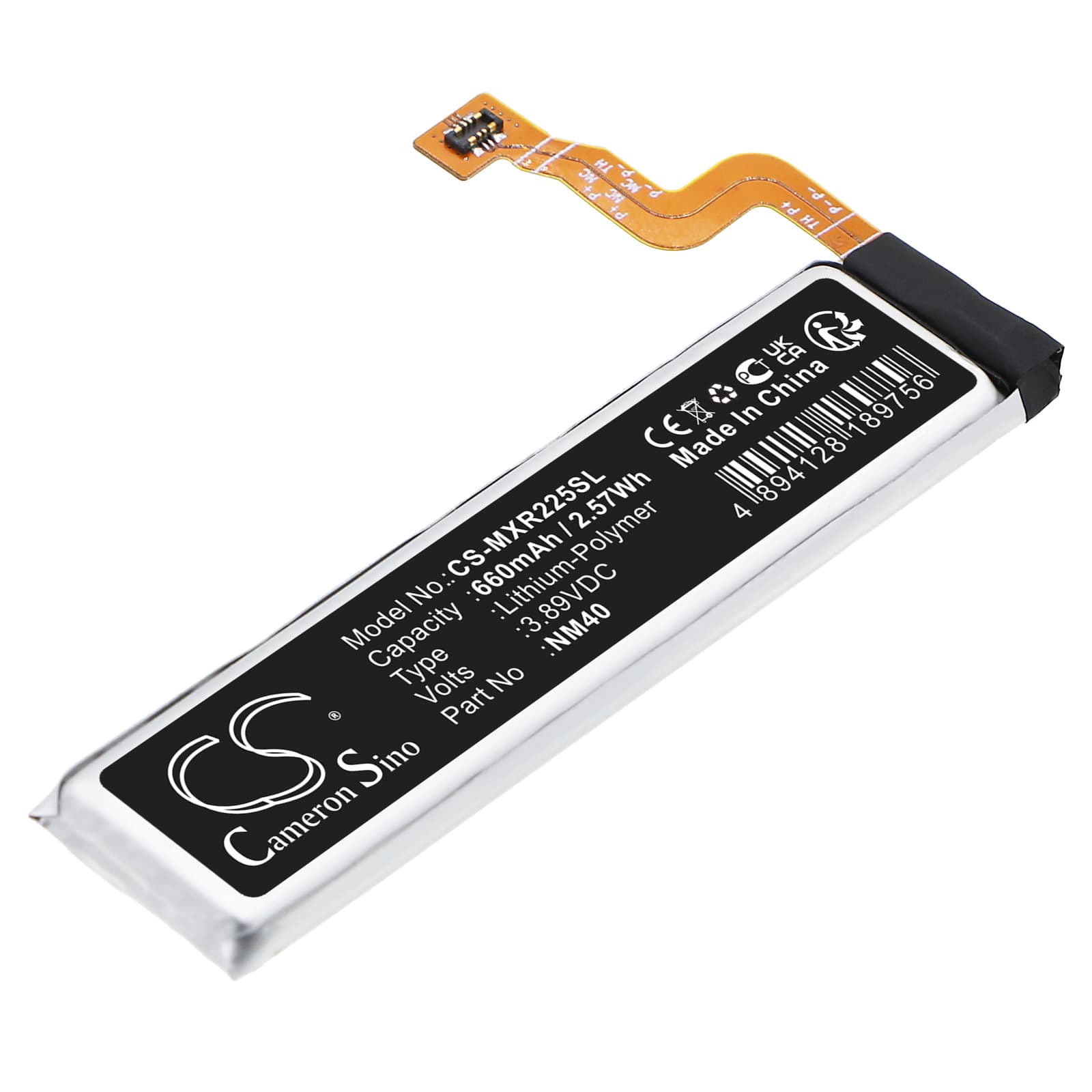

Motorola Razr 2022 — 3.89V Li-Polymer Replacement Battery (NM40)
This is a 3.89V, 660mAh Li-Polymer cell that replaces the OEM NM40 battery in the Motorola Razr 2022 and Razr 5G 3rd Gen 2022 (XT2251, XT2251-1). It slots into the same physical space as the original and connects to the same charge IC and fuel gauge circuit. Swap it when the original cell can no longer hold enough voltage under screen or modem load.
- XT2251 and XT2251-1 compatibility: Both variants share the same battery bay dimensions, connector pinout, and BMS handshake protocol — the NM40 cell works across the full XT2251 line without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the XT2251 platform. The BMS accepted the charge on first connection, and the fuel gauge IC began tracking coulombs without manual intervention.
- First-cycle fast charge hold-off: On first use after installation, disable fast charging and run one full discharge-to-charge cycle. The fuel gauge IC recalibrates its discharge curve against the new cell during that first cycle — letting it complete that pass before high-current charging pushes uncalibrated current into the cell avoids early percentage drift.
Why the Razr 2022 reports wrong battery percentage after a cell swap
The Razr 2022 uses a coulomb-counting fuel gauge IC that builds its discharge model against the original cell's impedance curve over many cycles. When you install a new cell, that learned curve no longer matches the physical cell in the bay. The gauge reports percentage against stale data until it collects new cycle data. Run one full uninterrupted discharge — screen on, no charging — down to automatic shutdown, then charge to 100% without interruption. After that single cycle the fuel gauge has a fresh reference point and percentage accuracy stabilises.
Sudden shutdown at 20–30% on the replacement cell
This happens when the modem connects to a congested cell tower or the display hits peak brightness — both events spike current draw sharply. A new cell with slightly elevated internal impedance can't sustain voltage through that spike, and it drops below the BMS cutoff threshold even though the fuel gauge still shows charge remaining. The fix is to complete one full calibration cycle as described above, then check whether shutdowns continue below 3.6V open-circuit voltage. If they stop after calibration, the fuel gauge was misreporting state-of-charge; if they continue, measure open-circuit voltage at the point of shutdown — a reading below 3.5V under load confirms a cell impedance issue.
