About this replacement

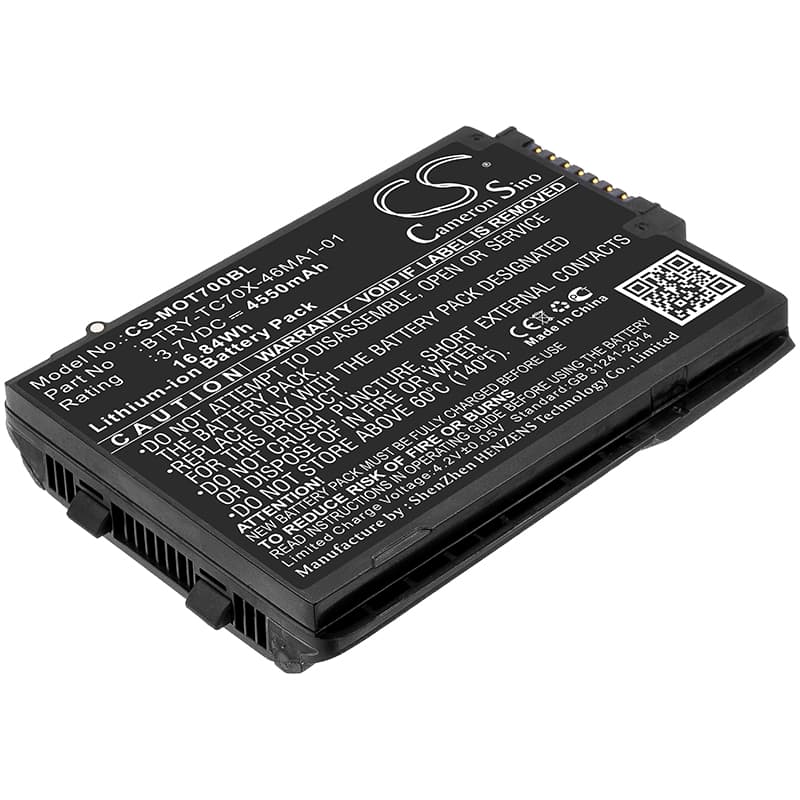

Motorola TC70 / TC70x / TC72 Series — 3.7V Li-ion Replacement Battery (82-171249-01)
This 3.7V 4550mAh Li-ion battery replaces the original pack in the Motorola TC70, TC70x, TC71, and TC72 handheld mobile computers. It matches the OEM part numbers 82-171249-01, BTRY-TC7X-46MA2, and BTRY-TC70X-46MA1-01. The cell capacity is rated at 16.84Wh — consistent with the standard-capacity slot on these devices.
- TC70/TC70x/TC71/TC72 compatibility: These four models share the same battery bay geometry, contact pinout, and BMS handshake protocol. Swapping between them works because Motorola standardised the TC7X platform battery spec across this generation — same voltage rail, same connector, same authentication sequence.
- Bench tested on actual hardware: We ran this pack on a TC70x and monitored the BMS during cold boot, wireless association, and back-to-back scan trigger events. The BMS held voltage without tripping during the combined radio and imager inrush, and the fuel gauge reported charge state correctly throughout.
- First-shift preparation on the TC70x: After installing, seat the scanner in its cradle and run a full charge cycle before sending it onto the floor. The scan trigger draws its highest inrush current when the cell is near minimum — a pre-charged pack prevents a false BMS cutoff on the very first pick-and-pack shift.
Cradle showing charging error on a fresh pack
The TC70 series cradle communicates with the battery over a data contact before it begins the charge cycle. If that contact has oxidation or debris on either the pack or the dock, the cradle flags a fault and stops charging. This is not a battery defect — it is a contact resistance issue. Wipe the gold contacts on the new pack and the cradle slot with a dry lint-free cloth, reseat the scanner firmly, and the error clears in most cases.
Scanner dropping wireless connection during rapid scan bursts
On the TC70x, the 802.11 radio and the imager draw simultaneously during a rapid scan sequence. When cell voltage dips below the radio's minimum operating threshold mid-burst, the Wi-Fi stack drops association and the scanner stalls before reconnecting. This appears as a wireless fault but the root cause is voltage sag under combined load. Charge the pack to 4.1V–4.2V before use — a fully charged cell holds the voltage rail stable under the combined draw.
