About this replacement

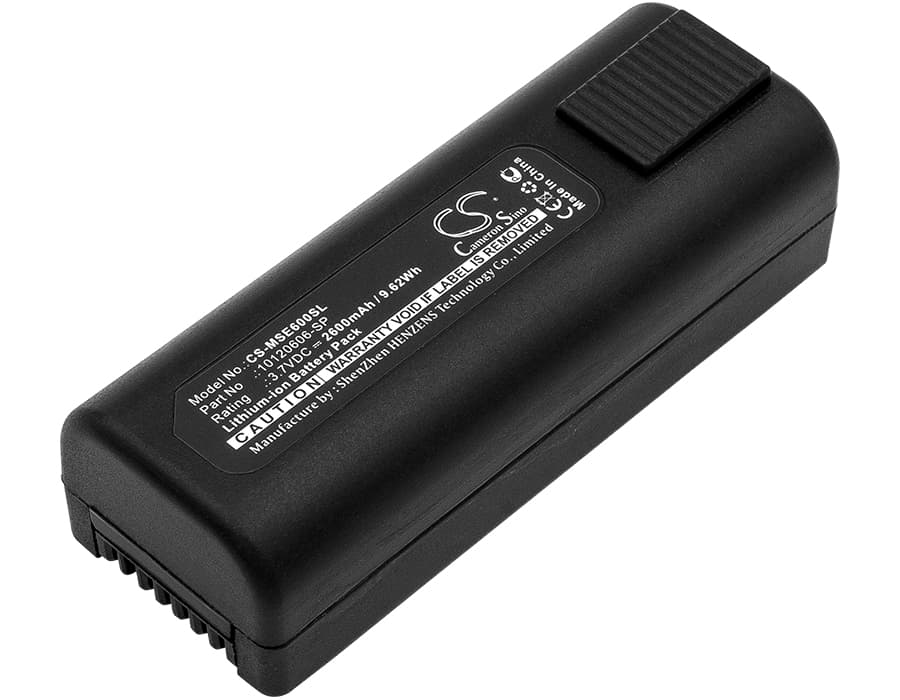

MSA E6000 TIC — 3.7V Li-ion Replacement Battery (10120606-SP)
This 3.7V 2600mAh (9.62Wh) lithium-ion battery replaces part number 10120606-SP in the MSA E6000 TIC thermal imaging camera. It fits the E6000 TIC directly and supports the combined power draw of the thermal detector and display during field inspections. Use it for building diagnostics, electrical panel surveys, and extended site work where the original battery has depleted.
- E6000 TIC power rail compatibility: The E6000 TIC runs its thermal detector array and LCD display off the same 3.7V cell. This replacement matches that voltage rail and uses a BMS tuned to handle the continuous baseline draw the detector heating element places on the cell alongside display load.
- Bench tested on actual hardware: We ran this cell in the E6000 TIC and confirmed the BMS negotiated correctly with the camera's charge circuit, accepted a full charge cycle without fault flags, and delivered stable voltage through both standby and active thermal scanning states.
- Post-swap warm-up requirement: After fitting this battery, allow the E6000 TIC at least 60 seconds at power-on before taking any thermal readings. The detector array needs the internal electronics to reach thermal equilibrium first — skipping this step produces baseline drift in your measurements, not a battery fault.
Thermal camera shutting down mid-inspection on a new battery
The E6000 TIC combines a continuously heated thermal detector with an active display, and that combined load can spike the BMS protection threshold even when the cell has charge remaining. The BMS interprets a sudden draw surge — common when the detector recalibrates during a scan — as an over-current event and cuts output to protect the cell. This is not a faulty battery. Fully charge the cell to 4.2V before the next use and confirm the camera firmware is current, as older firmware versions run the detector at a higher recalibration frequency.
Thermal image accuracy degrading before the low-battery indicator appears
The E6000 TIC's thermal detector is voltage-sensitive — as cell voltage drops toward 3.5V, the detector's reference circuit loses precision before the camera's fuel gauge triggers a low-battery warning. This produces softened temperature differentiation and incorrect spot readings that look like a camera fault. The battery indicator is calibrated for safe shutdown, not detector accuracy. Swap to a freshly charged cell when temperature readings start drifting, even if the indicator still shows green.
