About this replacement

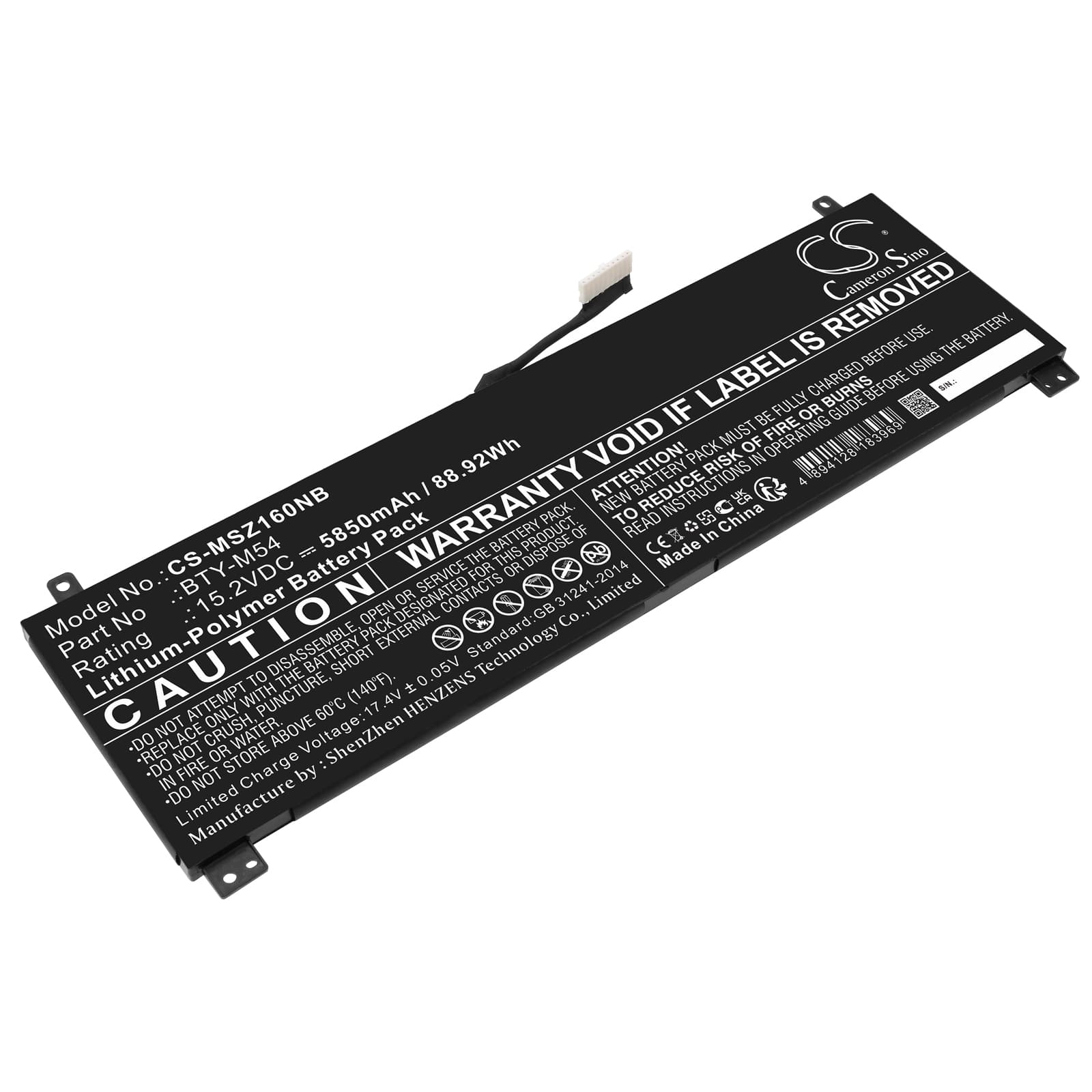

MSI Creator Z16 Series — 15.2V Li-Polymer Replacement Battery (BTY-M54)
This is a 15.2V, 5850mAh (88.92Wh) Li-Polymer replacement battery carrying OEM part number BTY-M54. It fits the MSI Creator Z16 line, including the A11UET-031UK, A11UE-088XES, A11UE-019ES, A11UET-065IT, and over 57 additional Creator Z16 variants. The connector, cell count, and BMS communication protocol match the original MSI specification.
- Creator Z16 A11U platform fit: All A11U-suffix Creator Z16 models share the same 4-cell 15.2V bus, BTY-M54 connector pinout, and BMS handshake sequence. The fuel gauge IC talks to the EC over SMBus — the cell chemistry and rated voltage have to match exactly or the EC rejects the pack.
- Bench tested on actual hardware: We ran this pack on a Creator Z16 A11UET under a combined CPU-render and display load. The BMS held the 15.2V rail without dropping into low-voltage cutoff, and the EC accepted the pack without triggering an unknown-battery warning on first boot.
- First-cycle conditioning on the Z16: After installing, run one full discharge down to hibernate cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning the EC logs automatically after every cell swap.
BIOS reporting poor battery health immediately after installing a new BTY-M54
The MSI Creator Z16 EC reads health data from EEPROM registers stored in the old cell's BMS chip. When you swap the pack, those registers are gone and the EC logs a "degraded" or "poor health" status by default — it has no baseline for the new cell yet. This is a firmware behaviour, not a fault with the replacement cell. Running one complete discharge-to-hibernate followed by an uninterrupted charge to 100% gives the EC enough data to write fresh EEPROM values. After two to three full cycles the reported health percentage will stabilise at a normal figure.
Creator Z16 shutting down abruptly at 20–30% charge shown
This happens when the fuel gauge IC's state-of-charge map still reflects the old cell's discharge curve. Under full CPU-plus-display load the actual cell voltage drops faster than the cached curve predicts, and the EC hits its low-voltage cutoff before the displayed percentage reaches zero. It is a calibration gap, not a defective cell. Run two full discharge cycles — letting the laptop reach hibernate naturally each time — so the fuel gauge IC can remap the voltage cliff against the new cell's actual chemistry. After those cycles the shutdown will track the displayed percentage accurately down to the low single digits.
