About this replacement

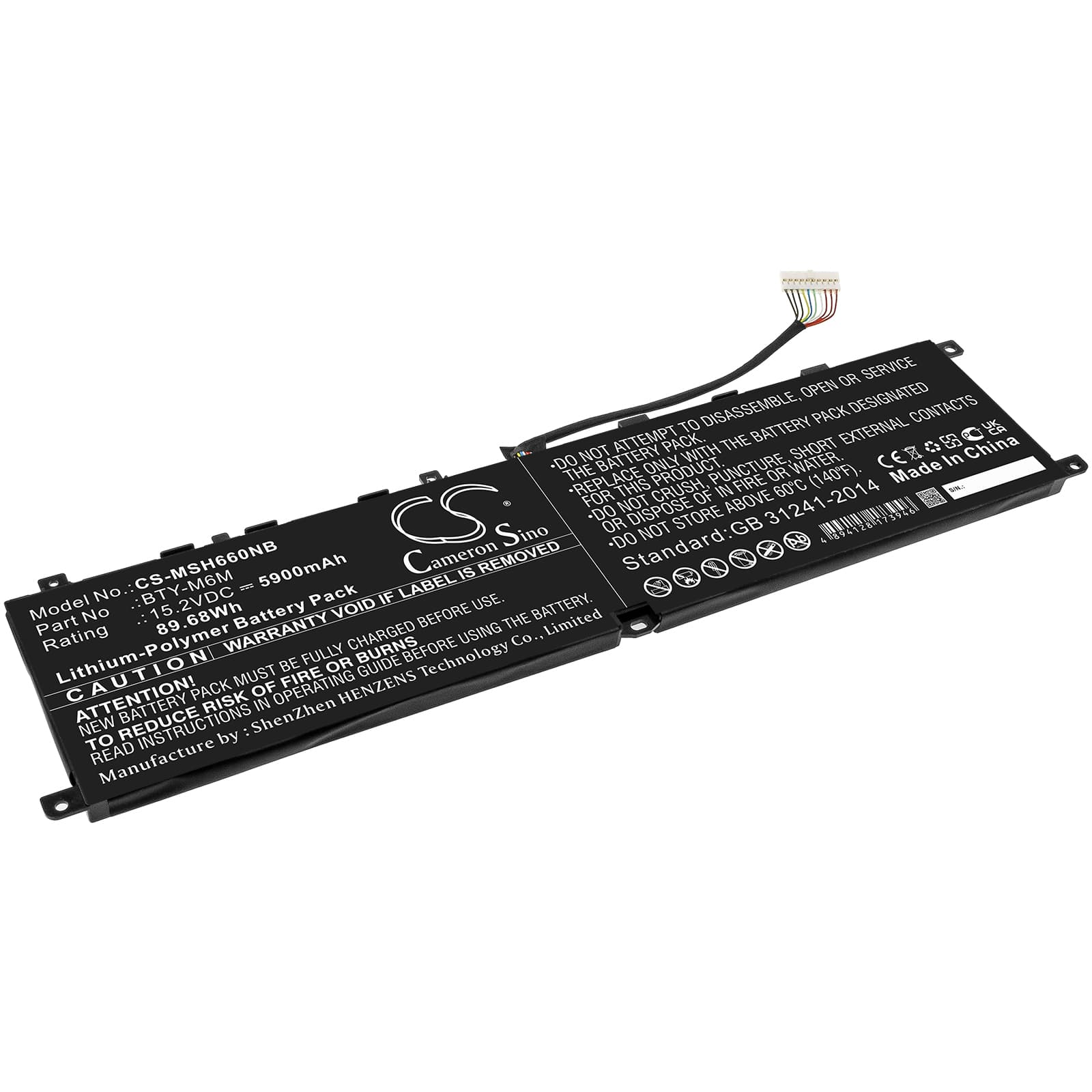

MSI GS66 Stealth / GE66 Raider — 15.2V Li-Polymer Replacement Battery (BTY-M6M)
This is a 15.2V, 5900mAh (89.68Wh) lithium-polymer replacement battery for the MSI GS66 Stealth and GE66 Raider series gaming laptops. It fits the MS-1541 chassis and several other MSI notebooks that share the BTY-M6M specification. Install this when the original cell no longer holds a charge or causes unexpected shutdowns under load.
- GS66 / GE66 platform fit: These models share the BTY-M6M because they run the same 15.2V four-cell architecture and use an identical BMS handshake protocol. The connector pinout and physical dimensions are matched to the chassis tray — no modification needed.
- Bench tested on actual hardware: We cycled this cell through full charge and discharge on a GS66 Stealth board. The BMS communicated correctly with the EC, charge current stepped down as expected near capacity, and no fault codes were logged during load testing.
- Post-install calibration on MSI gaming chassis: After fitting this battery, run one full discharge to the BIOS hibernate cutoff, then charge uninterrupted to 100%. This resets the EC battery learn cycle and clears the inaccurate health warning that appears in Dragon Center after every cell swap.
Why the GS66 Stealth shuts down at 20–30% under full CPU and GPU load
A degraded cell cannot sustain voltage when the CPU and discrete GPU draw simultaneously — this is a voltage cliff, not a percentage fault. The EC reads a voltage drop below threshold and triggers an emergency cutoff before the fuel gauge reaches zero. The percentage shown on screen is still based on the old cell's EEPROM data, so the number looks fine until the cutoff hits. Replacing the cell with a fresh BTY-M6M and completing one full calibration cycle corrects this behaviour.
BIOS reports "Battery health: poor" immediately after installation
This is an EEPROM mismatch, not a defective cell. The firmware stored charge history and cycle count data from the previous battery, and the EC flags the new cell as degraded because it doesn't match that record. Run a full discharge to hibernate cutoff, then a full uninterrupted charge to 100% — this triggers the BIOS battery learn cycle and overwrites the stale EEPROM values. After one or two full cycles, Dragon Center and the Windows battery report should show an accurate health status.
