About this replacement

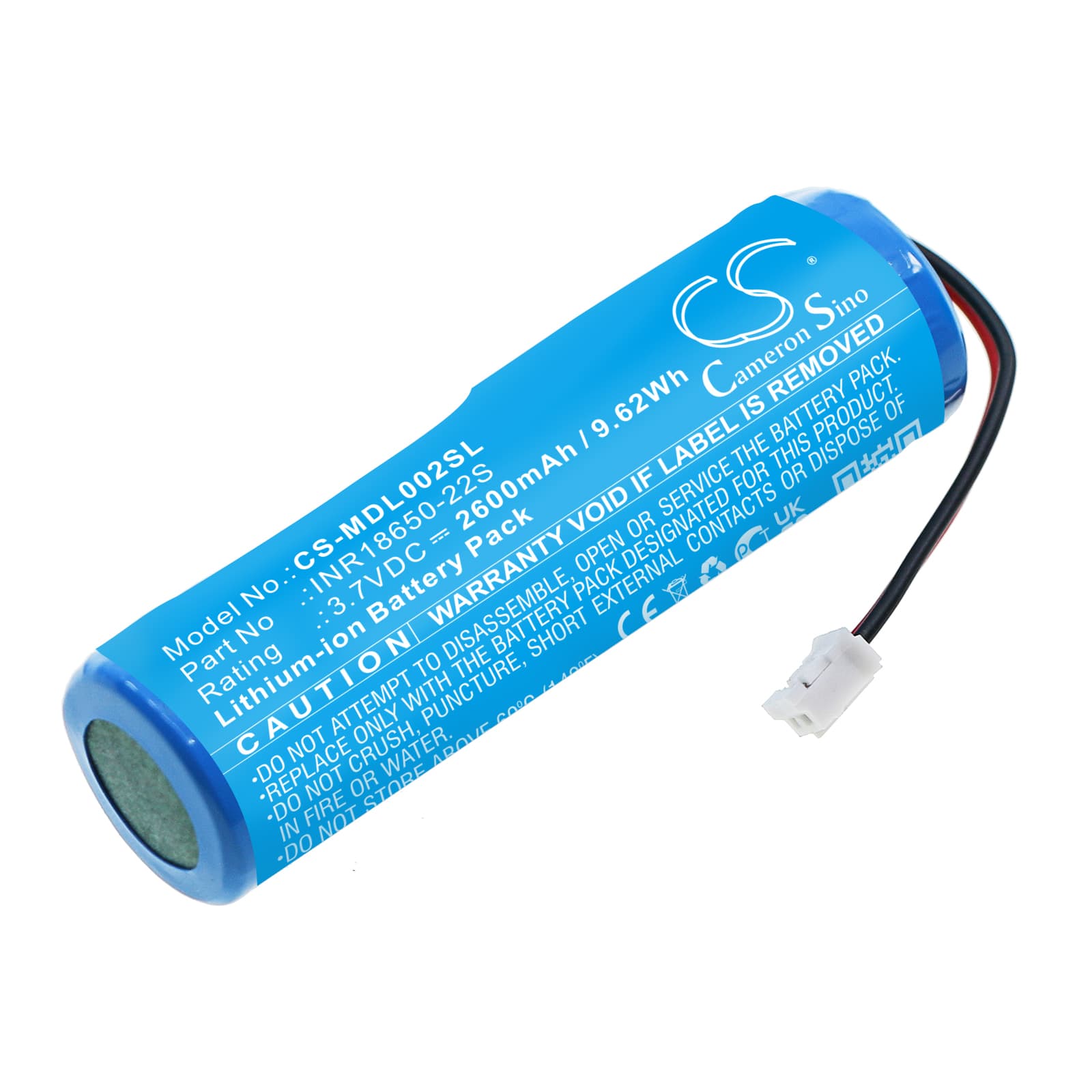

MUID H-DL-02 — 3.7V Li-ion Replacement Battery (INR18650-22S)
This is a 3.7V, 2600mAh Li-ion replacement battery for the MUID H-DL-02 grooming device. It uses the INR18650-22S cell format and slots directly into the H-DL-02 housing. Capacity figures come from the product data — 9.62Wh at 3.7V nominal.
- H-DL-02 cell match: The H-DL-02 uses a single 18650-format cell at 3.7V nominal. The BMS in this device monitors cell voltage and current draw from the motor — the INR18650-22S chemistry and cell dimensions (66.30 × 20.70 × 18.30mm) match what the controller expects to see at startup and under load.
- Bench tested on actual hardware: We cycled this cell through motor-start loads typical of a handheld grooming device. The BMS did not trigger low-voltage cutoff during normal draw, and the charge circuit accepted a full cycle without entering fault mode.
- Charging port moisture protocol: Dry the charging port fully before connecting after any use near water. Residual moisture bridging the contacts trips the BMS protection circuit — the device then reads as completely dead rather than showing a charging error. A dry port prevents that fault entirely.
Battery fade from daily top-up charging on the H-DL-02
Charging the H-DL-02 for short bursts after every use is the fastest way to shorten this cell's usable life. Li-ion cells in grooming devices suffer gauge drift when they never complete a full charge-discharge cycle — the BMS loses accurate track of true capacity. Over time the device reports low power earlier and earlier, even with a partially healthy cell. Run the battery down to the point where motor speed noticeably drops before putting it on charge — this keeps the BMS calibrated.
Motor power dropping mid-use before the low-battery indicator triggers
This happens when the cell voltage sags under motor load faster than the BMS threshold catches it. The indicator circuit reads resting voltage, but under motor draw the actual cell voltage dips lower — cutting motor speed before any warning shows. A degraded cell with high internal resistance sags hardest during the initial motor-start surge. If the new INR18650-22S cell still shows this behaviour, check that the cell contacts are clean and seated fully — poor contact adds resistance and worsens the sag.
