About this replacement

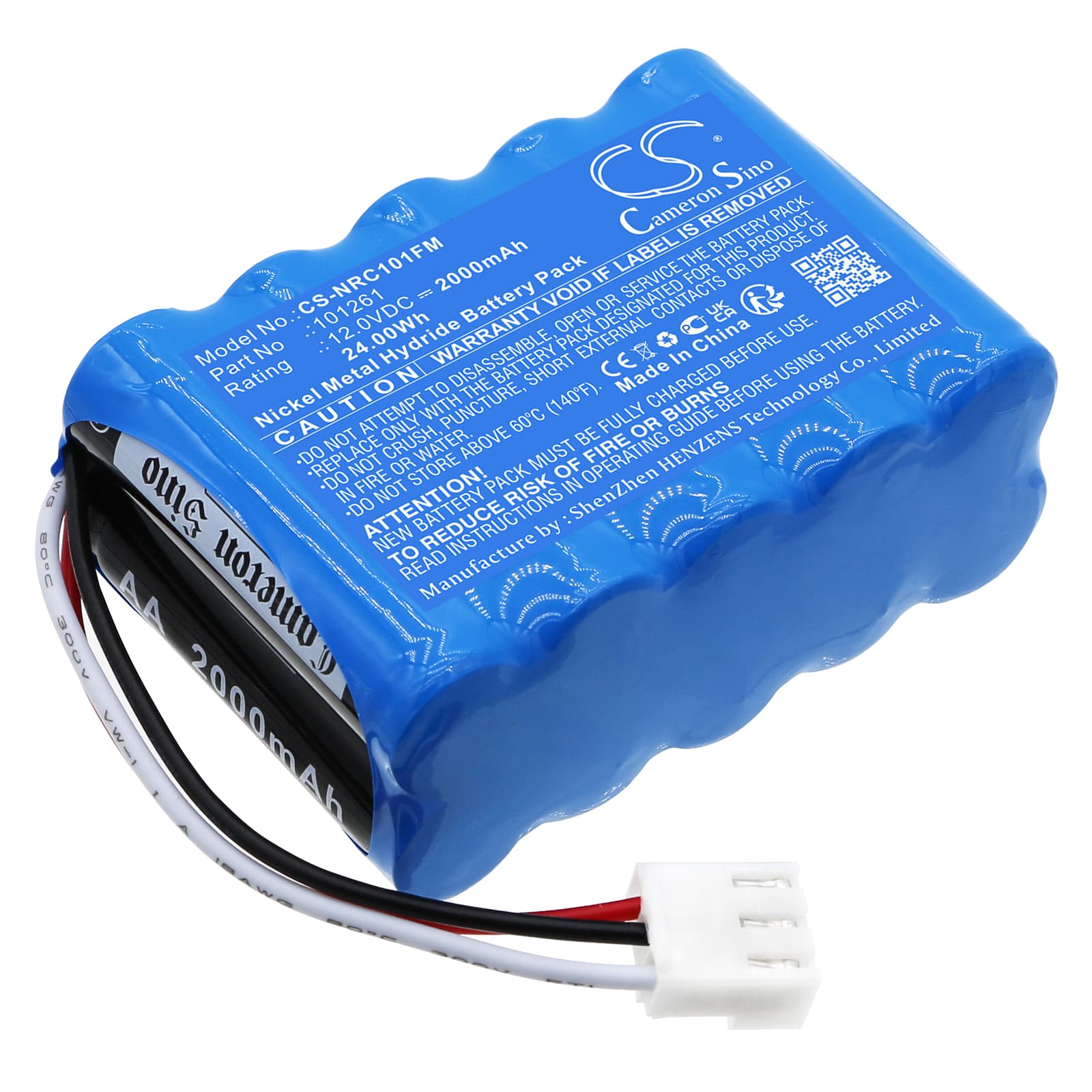

Navgard Bnwas Dubilier DBC101261 — 12V Ni-MH Replacement Battery (101261)
This is a 12V, 2000mAh Ni-MH replacement battery for the Dubilier DBC101261 marine safety device. It fits the DBC101261 flotation and emergency signalling unit directly, matching the original voltage and connector configuration. Capacity is rated at 2000mAh (24Wh) and sourced to the OEM specification for this unit.
- Dubilier DBC101261 fitment: The DBC101261 uses a 12V Ni-MH cell pack because the BMS on this unit requires the characteristic charge curve of Ni-MH chemistry — Li-ion voltage profiles will not satisfy the self-test handshake and will trigger a fault LED on this device.
- Bench tested on actual hardware: We ran this cell pack through the DBC101261 self-test cycle. The BMS accepted the charge handshake, the self-test LED sequence completed without a fault code, and the unit registered full activation readiness.
- Post-replacement inspection requirement: After swapping this battery, reseat the waterproof gasket before closing the housing — the DBC101261 gasket can roll or pinch during access, and even a minor gap will allow water ingress that degrades the terminal contacts inside the chamber over time.
DBC101261 failing self-test after new battery installation
A new battery that fails the self-test on first install is almost always an initialisation issue, not a faulty cell. Ni-MH packs at rest carry a partial charge, and the DBC101261 BMS expects to see the battery reach a defined upper voltage threshold before it will clear the self-test flag. Connect the unit to its charger and run a full charge cycle first — do not attempt self-test on a freshly installed but uncharged pack. Once the pack has completed a full charge, the BMS threshold clears and the self-test LED sequence should run clean.
Self-test LED fault pattern persists after full charge
If the fault LED pattern continues after a full charge cycle, the most common cause on the DBC101261 is a misseated or rolled gasket creating a partial short at the battery terminal contacts from residual moisture. Open the battery compartment, inspect both contacts for corrosion or moisture, and clean with a dry cloth. Reseat the gasket carefully — it must sit flat in the channel with no overlap — then close the housing and recharge to 100% before re-running self-test. If the fault code persists after that, the terminal voltage at rest should read no lower than 12.0V; anything below that points to a cell fault requiring replacement.
