About this replacement

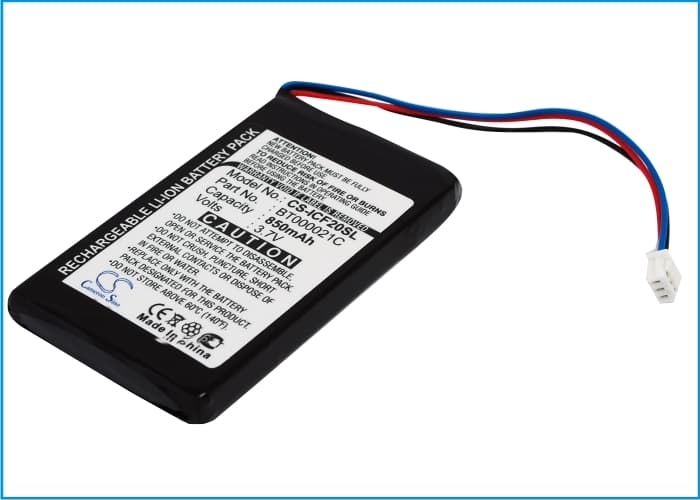

Navman F20 / F30 / F40 Series — 3.7V Li-ion Replacement Battery (BT000021C)
This is a 3.7V 850mAh lithium-ion cell replacing part number BT000021C in the Navman F20, F20 Euro, F30, and F40 portable GPS navigators. It fits the same physical footprint at 51.50 × 38.00 × 6.00mm and uses the same connector as the original. When the factory cell no longer holds a charge, this swap restores full navigation capacity.
- F20 / F30 / F40 platform compatibility: These models share a common board layout, the same 3.7V single-cell power rail, and identical battery connector pinout. One cell covers the full range without modification.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on GPS navigator hardware. The BMS held charge termination correctly at 4.2V and protected the cell at the low-voltage cutoff without tripping prematurely during satellite acquisition.
- Cold-start satellite fix after power interruption: After fitting this cell, power the unit on outdoors before your first drive. GPS navigators perform a full cold start after any complete power loss. First satellite fix typically takes 5–10 minutes outdoors with clear sky view — subsequent warm starts are much faster once almanac data is cached.
GPS battery draining faster during active turn-by-turn navigation
Active navigation draws significantly more current than standby. The GPS receiver locks onto multiple satellites continuously, the processor recalculates routes in real time, and the display runs at full brightness. At 850mAh and 3.7V, this cell meets the original spec — but if drain still feels fast, lower screen brightness to cut display draw, which is the single largest variable load on these units.
F20 shutting off without a low-battery warning
This happens when the battery indicator is uncalibrated to the new cell. The device reads voltage against a stored discharge curve from the old, degraded battery. It skips the low-battery warning and hits the undervoltage cutoff threshold with no visual alert. Run two full charge-to-cutoff cycles outdoors with active navigation to let the firmware recalibrate the discharge curve. After that, the warning indicator should appear before shutdown at approximately 3.5V.
