About this replacement

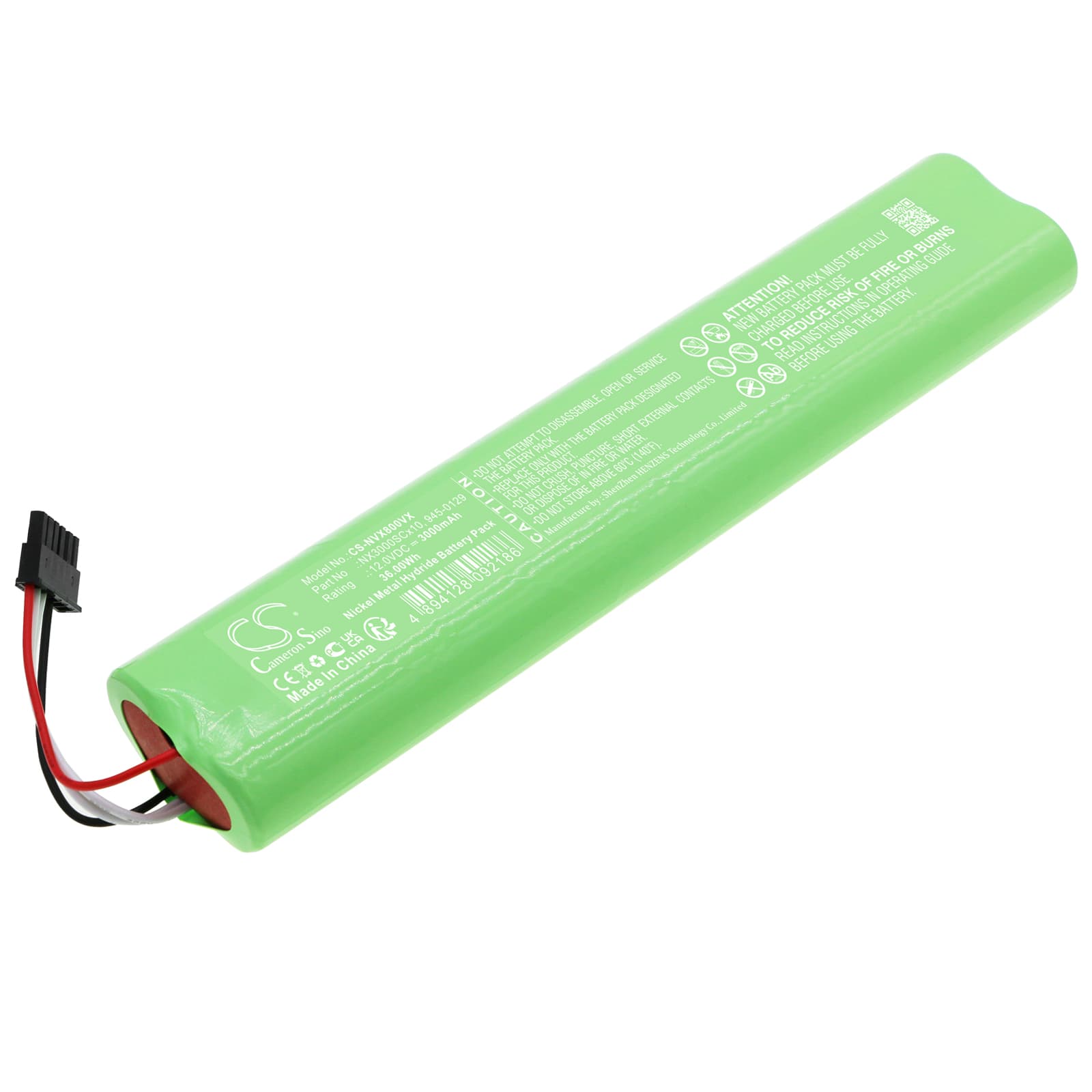

Neato Botvac 70e / 75 / 80 / 85 — 12V Ni-MH Replacement Battery (NX3000SCx10)
This is a 12V, 3000mAh Ni-MH replacement battery for the Neato Botvac 70e, 75, 80, and 85 robotic vacuum cleaners. It powers the drive motors, brush roll, and onboard navigation system. OEM part numbers NX3000SCx10, 945-0129, and 2041006 all cross to this cell pack.
- Botvac 70e / 75 / 80 / 85 platform compatibility: These four models share the same 12V battery bay, connector pinout, and BMS communication protocol — one cell pack serves the entire range without modification.
- Bench tested on actual hardware: We cycled this pack through full charge and discharge on a Botvac 85 chassis. The BMS accepted the handshake on first contact, voltage held steady at 12V under motor-start load, and the charger terminated correctly at capacity.
- Dock charging habit on the Botvac series: Do not leave the vacuum sitting on the dock between cleaning sessions. These Ni-MH cells accumulate trickle charge damage faster than Li-ion. Charge to full, then remove the vacuum from the dock until the next run.
Suction dropping before the battery indicator reaches low on the Botvac 70e
Ni-MH cells show a steeper voltage sag curve than Li-ion under sustained motor load. When the brush roll hits a thick rug or a partially blocked filter forces the motor to draw harder, voltage can dip enough to reduce suction noticeably — while the indicator still reads mid-charge. The battery gauge on the Botvac series reads state-of-charge by resting voltage, not real-time load voltage, so the display lags behind actual performance. Cleaning or replacing the filter removes the extra draw and often resolves the symptom before a battery swap is needed.
Motor cuts out mid-clean then recovers after a few seconds
This is a BMS overcurrent trip, not a flat battery. Restricted airflow — usually a clogged filter or a brush roll tangled with hair — forces the motor to sustain current above the pack's rated threshold. The BMS shuts the output rail to protect the cells, then resets once current demand drops. The recovery delay is the BMS cooldown timer, typically 3–5 seconds. Clear the brush roll, tap out the filter, and confirm airflow is unobstructed before assuming the battery is at fault.
