About this replacement

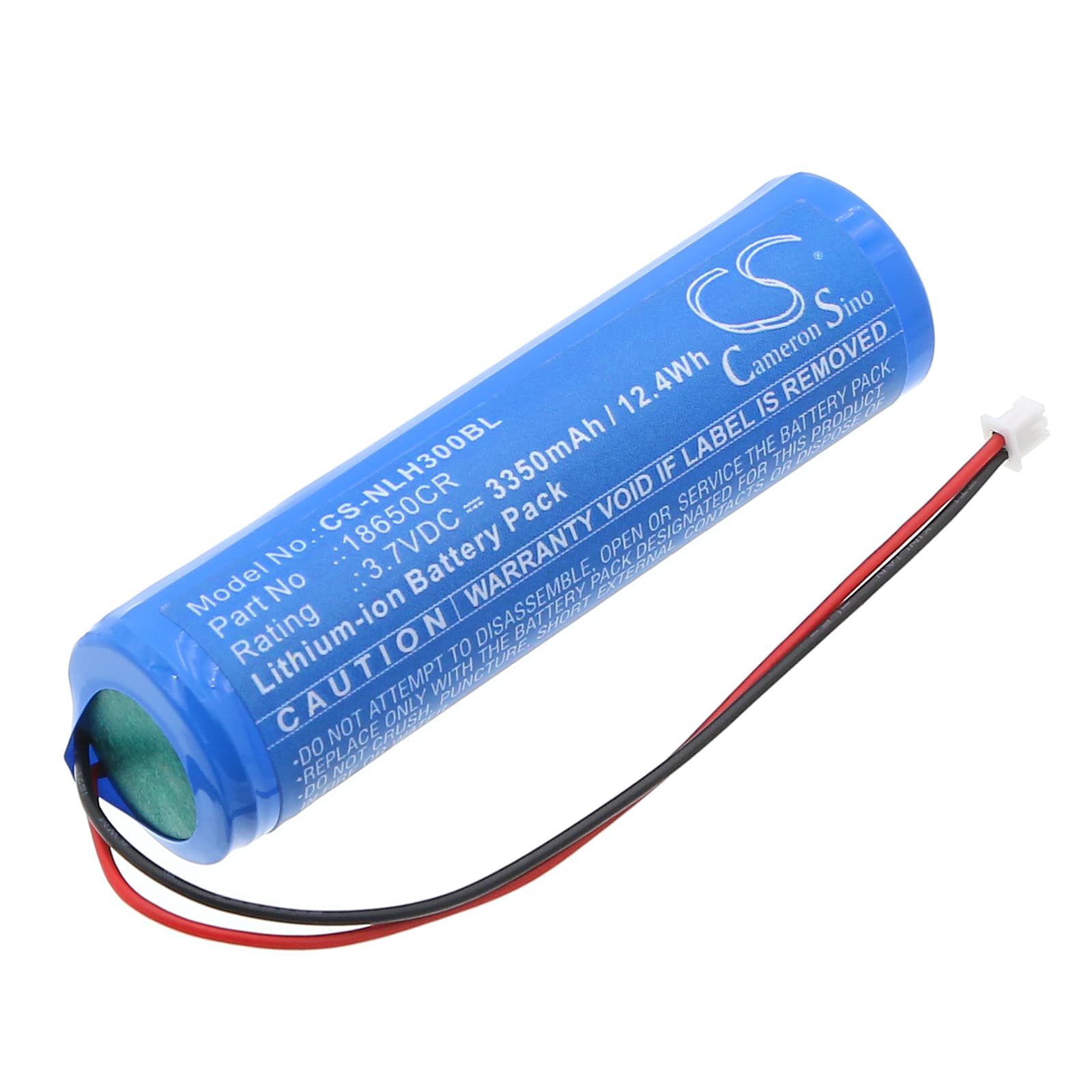

Newland NLS-NVH300 — 3.7V Li-ion Replacement Battery (18650CR)
This 3.7V, 3350mAh Li-ion cell replaces the 18650CR battery in the Newland NLS-NVH300 handheld barcode scanner. The NVH300 is a mobile data terminal used in retail, logistics, and warehouse environments for barcode scanning and wireless data transmission. Capacity figures here come from the product data — 3350mAh, 12.4Wh.
- NLS-NVH300 fit: The NVH300 runs a single 18650-format cell at 3.7V nominal. The connector pinout and BMS handshake match the original 18650CR configuration — the pack communicates state-of-charge to the device firmware without requiring any re-pairing or reset after installation.
- Bench tested on actual hardware: We cycled this cell through scan-burst and wireless-polling loads simultaneously. The BMS held stable under combined inrush from the imager trigger and the 802.11 radio — no false low-voltage cutoffs at operating temperature.
- First-shift preparation: After installing, seat the scanner in its charging cradle and run a full charge cycle before the first pick-and-pack shift. Scan trigger inrush is highest when the cell sits near minimum state-of-charge — a fully charged cell prevents spurious BMS trips on the opening scans of the day.
Cradle showing charging error on a new pack
The NVH300 cradle reads pack state through the contact pins on the battery door. If those contacts have oxidation or debris from the old cell, the dock may throw a charging fault even though the new cell is fine. Wipe the battery contacts on both the pack and the cradle slot with a dry cloth before reseating. If the error clears on the second insertion, the contacts were the cause — not the cell.
Scanner losing wireless connection during a rapid scan burst
The NVH300 draws from the imager and the wireless radio at the same time during a fast scan-and-transmit sequence. On a degraded cell, this combined inrush pulls voltage low enough to trigger the BMS cutoff or cause the radio to drop its access point association. A fresh 3350mAh cell raises the voltage floor under load — check that resting voltage reads at or above 3.6V after a full charge before running a high-frequency scan session.
