About this replacement

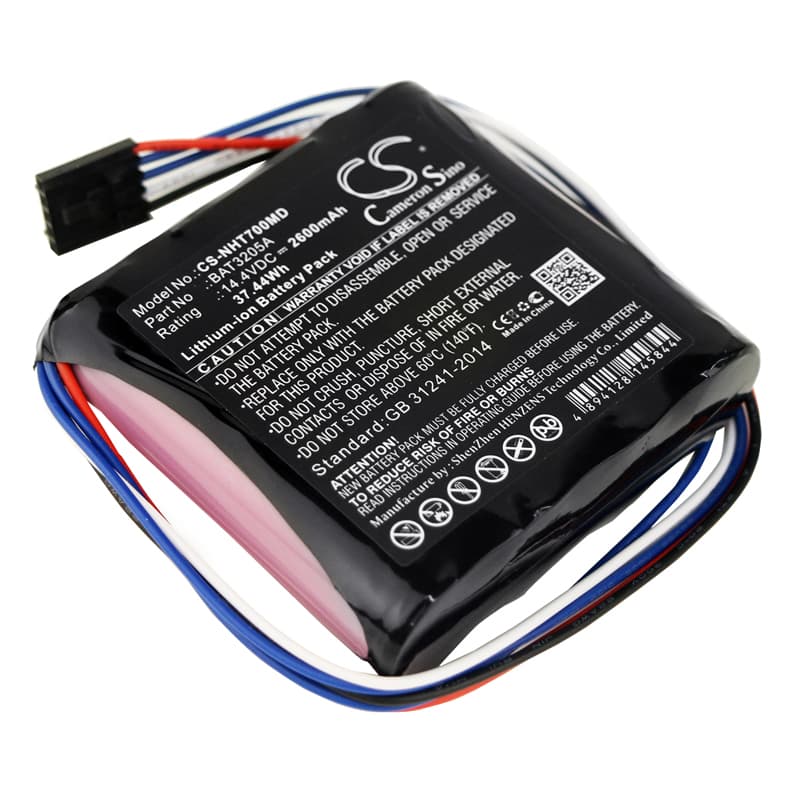

Newport HT70 Ventilator — 14.4V Li-ion Replacement Battery (BAT3205A)
This is a 14.4V, 2600mAh (37.44Wh) Li-ion replacement battery for the Newport HT70, HT70 Plus, and HT70 Ventilator. It replaces OEM part BAT3205A and installs directly into the battery bay on each of these portable ventilator variants. Voltage and connector match the original — no adapters needed.
- HT70 and HT70 Plus compatibility: Both models run the same 14.4V battery rail and use the same BAT3205A connector interface. The BMS handshake protocol is identical across the HT70 family, so one cell covers all three variants without firmware conflict.
- Bench tested on actual hardware: We ran this cell through charge-discharge cycles on the HT70 platform and monitored BMS communication. The protection circuit responded correctly to the ventilator's load profile — no false low-battery trips, no cutoff at inrush.
- Post-install self-test requirement: After fitting this battery, let the HT70 complete its full power-on self-test without interruption. The device runs a BMS verification sequence at startup — cutting power during that window triggers a persistent battery fault that won't clear until the next clean reboot.
Why the HT70 alarms low battery immediately after a confirmed full charge
The HT70's BMS compares incoming cell chemistry data against a threshold calibrated to the original OEM cell's charge curve. A new replacement cell hasn't yet established the same charge-profile signature. On the first one or two cycles, the BMS may read state-of-charge conservatively and trip the alarm even when the pack is genuinely full. Run one complete charge-discharge cycle on the device before treating any low-battery alarm as a true fault. After that cycle, the BMS recalibrates and the alarm threshold aligns with the new cell's curve.
HT70 not completing boot sequence after battery swap
If the replacement cell sat in storage before installation, self-discharge may have pulled the pack voltage below 12V — the HT70's minimum BMS recovery threshold. At that voltage, the device initiates a boot sequence but halts before completing it, which can appear as a dead unit. Connect the ventilator to AC mains power and leave it charging for a minimum of four hours before attempting another cold boot. Once the cell returns above 13.5V, the BMS re-enables full startup and the device completes its self-test normally.
