About this replacement

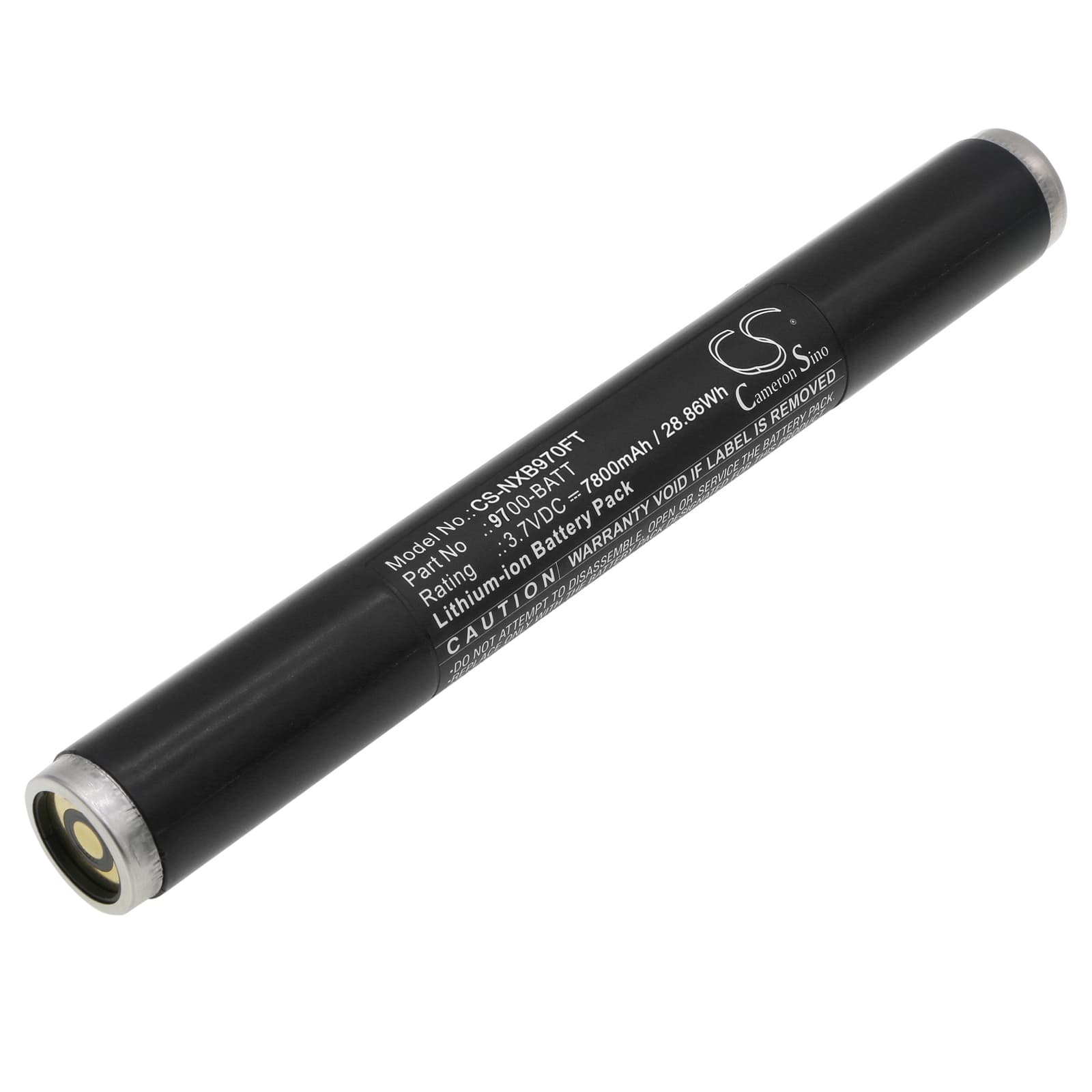

Nightstick 9700 Series — 3.7V Li-ion Replacement Battery (9700-BATT)
This is a 3.7V, 7800mAh Li-ion replacement battery for the Nightstick 9700, 9744, and 9746 flashlights. It slots directly into the original battery compartment and uses the same OEM part number 9700-BATT. Capacity matches the factory spec at 28.86Wh.
- 9700, 9744, and 9746 compatibility: These three models share the same cylindrical battery form factor, voltage rail, and driver circuit. The same 3.7V cell powers all three without any modification to the driver or housing.
- Bench tested on actual hardware: We ran this battery through charge and discharge cycles on the 9700 platform. The BMS responded correctly to both high-output and low-output driver modes, with cutoff triggering at expected low-voltage thresholds rather than dropping output abruptly.
- Turbo mode draw management: The 9700's turbo mode pulls significantly more current than standard or low modes. Running the light exclusively in turbo accelerates cell depletion and generates more heat at the cell. Rotate between output levels during extended use to keep the cell temperature in check.
Why the 9700 steps down brightness before the indicator shows low
The 9700's driver circuit monitors cell voltage continuously. When voltage sags under load — typically below 3.2V — the driver reduces output to protect the cell, even if the indicator hasn't triggered yet. This is brownout protection, not a fault. The light dims because the driver is capping current draw before the BMS hard cutoff kicks in. If this happens early in a session, the cell is likely capacity-faded and needs replacing.
Battery reads fully charged but flashlight output is noticeably weaker
A Li-ion cell that has undergone significant cycle degradation can hold a full nominal voltage at rest while delivering far less usable energy under load. The charger reads the open-circuit voltage and calls it full, but the internal resistance has climbed. Under the 9700's high-current draw, that resistance causes voltage to sag immediately, and the driver pulls back output. Check resting voltage with a multimeter — a healthy cell sits above 4.1V after a full charge. If it reads full but drops below 3.5V within the first few minutes of turbo use, replace the cell.
