About this replacement

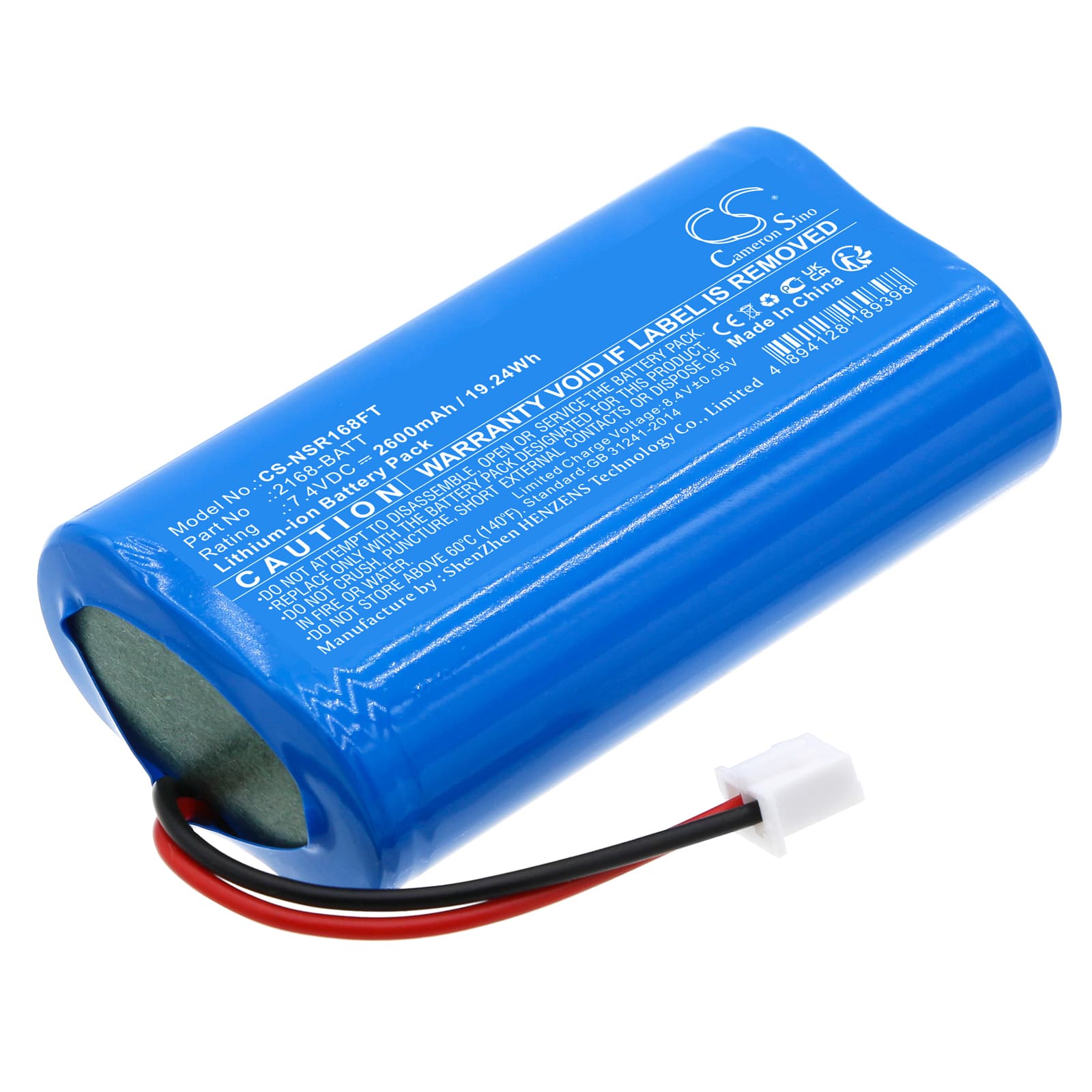

Nightstick NSR-2168 — 7.4V Li-ion Replacement Battery (2168-BATT)
This is a 7.4V 2600mAh lithium-ion replacement battery for the Nightstick NSR-2168 rechargeable tactical flashlight. It matches the OEM part number 2168-BATT and slots directly into the NSR-2168 housing. Capacity is 2600mAh (19.24Wh) — identical to the factory cell.
- NSR-2168 platform fit: The NSR-2168 uses a two-cell 7.4V Li-ion pack with a specific connector and form factor tied to its driver circuit. This replacement matches that voltage rail and physical configuration, so the driver regulates output correctly across all modes.
- Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on the NSR-2168 driver. The BMS handled high-current draw in turbo mode without nuisance cutoff, and cell balance remained within acceptable range across multiple cycles.
- Multi-cell replacement timing: The NSR-2168 pack contains two cells in series. If one cell has aged while the other is newer, the weaker cell hits cutoff voltage first under high-current draw, forcing the driver to step down output early. Replace the full pack as a unit — never mix old and new cells.
High-powered flashlight dimming before the battery indicator shows low
The NSR-2168 driver monitors cell voltage in real time and steps down output before the indicator triggers a low-battery alert. In turbo mode, current draw is high enough that voltage sag across aging cells trips the driver's brownout protection threshold first. The light dims noticeably while the indicator still reads adequate. This is the driver protecting the cells — not a fault in the new battery.
Significantly shorter use in turbo mode compared to standard mode
Turbo mode on the NSR-2168 draws five to ten times more current than standard output. That higher draw depletes the 2600mAh pack far faster and also causes greater instantaneous voltage sag across the cells. The driver interprets that sag as low voltage and throttles output, even though the pack still holds charge. Switch to standard or medium mode for extended operations — turbo is a short-burst mode, not a sustained-use setting.
