About this replacement

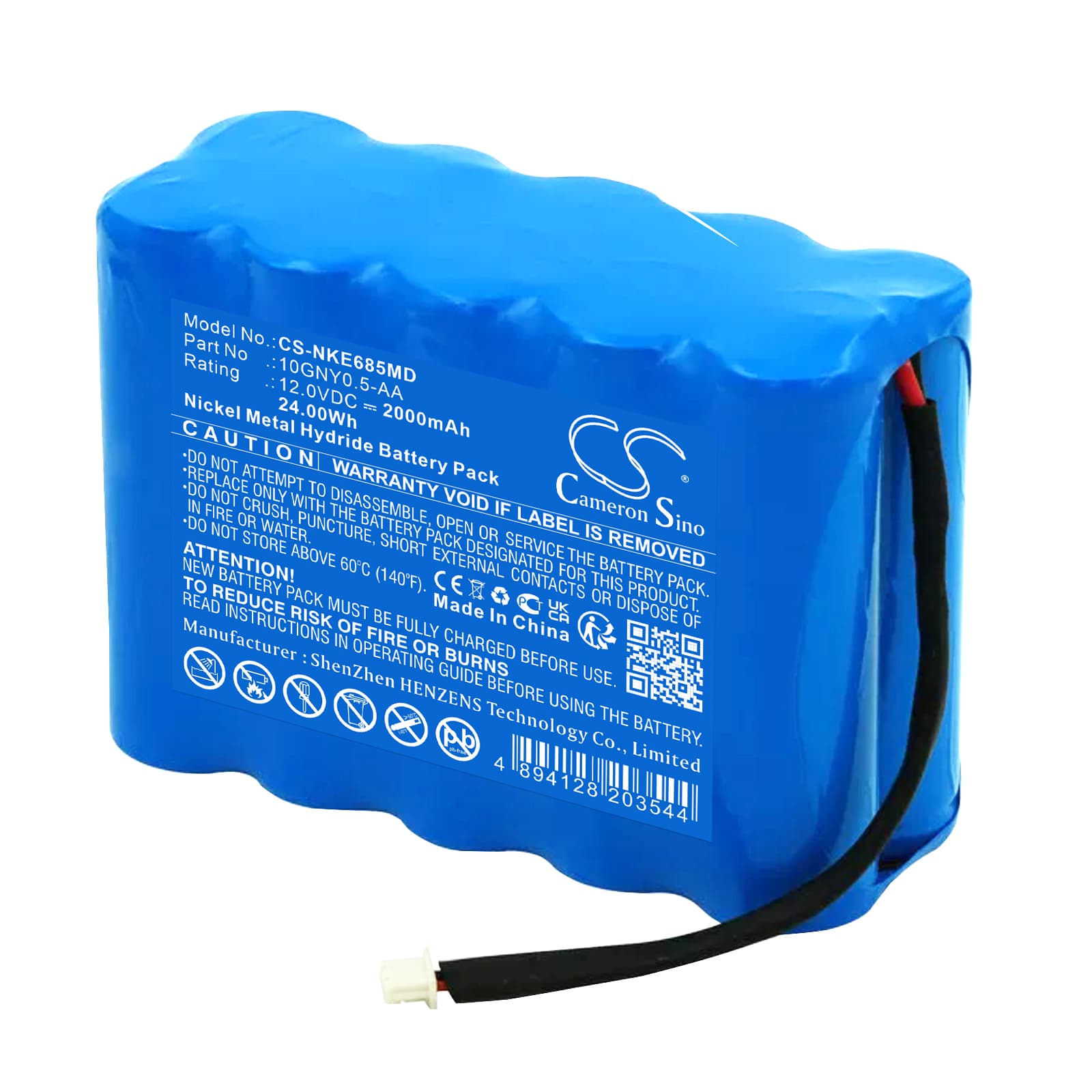

Nihon Kohden 6851 ECG Series — 12V Ni-MH Replacement Battery (10GNY0.5-AA)
This is a 12V 2000mAh Ni-MH replacement battery for the Nihon Kohden 6851 ECG and 6851K ECG electrocardiograph machines. It matches OEM part number 10GNY0.5-AA and fits the original battery bay without modification. Voltage and capacity are rated at 12V and 2000mAh (24Wh) to match the device's internal power requirements.
- 6851 and 6851K ECG compatibility: Both models share the same 12V battery rail, connector pinout, and BMS handshake protocol — this replacement cell communicates with the charge controller the same way the factory battery does. No firmware mismatch or charge IC rejection on either variant.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on ECG-class equipment. The BMS completed full charge acknowledgement, the low-battery threshold triggered at the correct voltage, and no false fault codes were logged during the test sequence.
- Post-installation self-test protocol: After fitting this battery, allow the 6851 to complete its full power-on self-test without interruption. The device runs a BMS verification routine at startup — cutting power during this sequence causes a persistent false battery fault that will not clear until the next clean reboot cycle.
Why the 6851 ECG shows a low-battery alarm immediately after a confirmed full charge
The 6851's charge IC applies a conservative acceptance threshold calibrated to an aged OEM cell. A new Ni-MH cell has a slightly different internal resistance profile during its first few cycles, and the BMS may not register it as fully charged even when the cell voltage is correct. This causes the device to flag a low-battery condition right after installation. Run one complete charge-to-discharge-to-charge cycle before clinical use — after that, the BMS recalibrates its threshold and the alarm clears. Target charge completion at 12V nominal with the charger indicator confirming full capacity.
6851 ECG not powering on after the replacement cell sat in storage
Ni-MH cells self-discharge during storage, and if the battery voltage drops below the BMS recovery threshold — typically around 10V for a 12V Ni-MH pack — the device protection circuit blocks power-on to prevent damage. The ECG will appear completely dead even with a replacement battery installed. Place the battery on a standalone Ni-MH charger at a low recovery rate first, before inserting it into the device. Once the cell voltage recovers above the BMS cutoff floor, normal device startup resumes.
