About this replacement

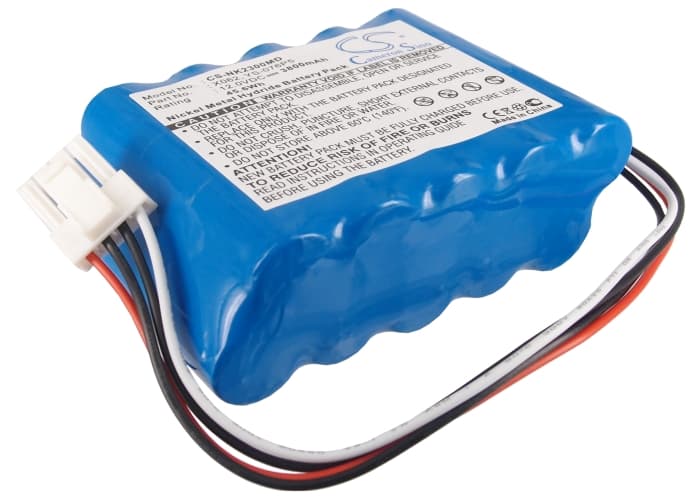

Nihon Kohden BSM-2300 Series — 12V Ni-MH Replacement Battery (X062)
This is a 12V 3800mAh Ni-MH replacement battery for the Nihon Kohden BSM-2300, BSM-2301, BSM-2304, and Lifescope i patient monitors. It matches OEM part numbers X062, YS-076P5, and 608237, among others. The battery sustains continuous monitor operation when AC power is interrupted during patient monitoring.
- BSM-2300 series compatibility: The BSM-2300, BSM-2301, and BSM-2304 share the same 12V battery bay, connector pinout, and BMS handshake protocol. A single cell format covers all three variants without adapter or modification.
- Bench tested on actual hardware: We ran this cell through charge and load cycles on the BSM-2300 platform. The BMS accepted the cell without fault codes, completed charge termination cleanly, and held voltage within spec under sustained monitoring load.
- Post-installation self-test: After fitting this battery, let the monitor complete its full power-on self-test without interruption. The BSM-2300 runs a BMS verification sequence at startup — cutting power mid-cycle flags a false battery fault that sticks until the next clean reboot.
Charge indicator stalling below 100% on the first charge cycle
The BSM-2300 charge IC applies a conservative current limit when it sees a new Ni-MH cell with an unfamiliar internal resistance profile. On the first charge, the termination algorithm may halt early — displaying 90–95% — rather than risk overcharge on an uncalibrated cell. This is not a cell fault. Run one full charge-discharge cycle and the charge IC recalibrates its delta-V detection. After that cycle, the indicator reaches 100% consistently.
Monitor alarming low battery immediately after a confirmed full charge
The BSM-2300 BMS checks cell voltage against a threshold tuned for a conditioned OEM cell. A fresh replacement cell hasn't completed a learn cycle, so its resting voltage profile sits slightly outside the expected window — triggering the low-battery alarm even at full charge. This resolves after one complete charge-discharge cycle, which lets the BMS map the actual capacity curve of the new cell. Run that cycle in a controlled setting before placing the unit back into clinical rotation.
