About this replacement

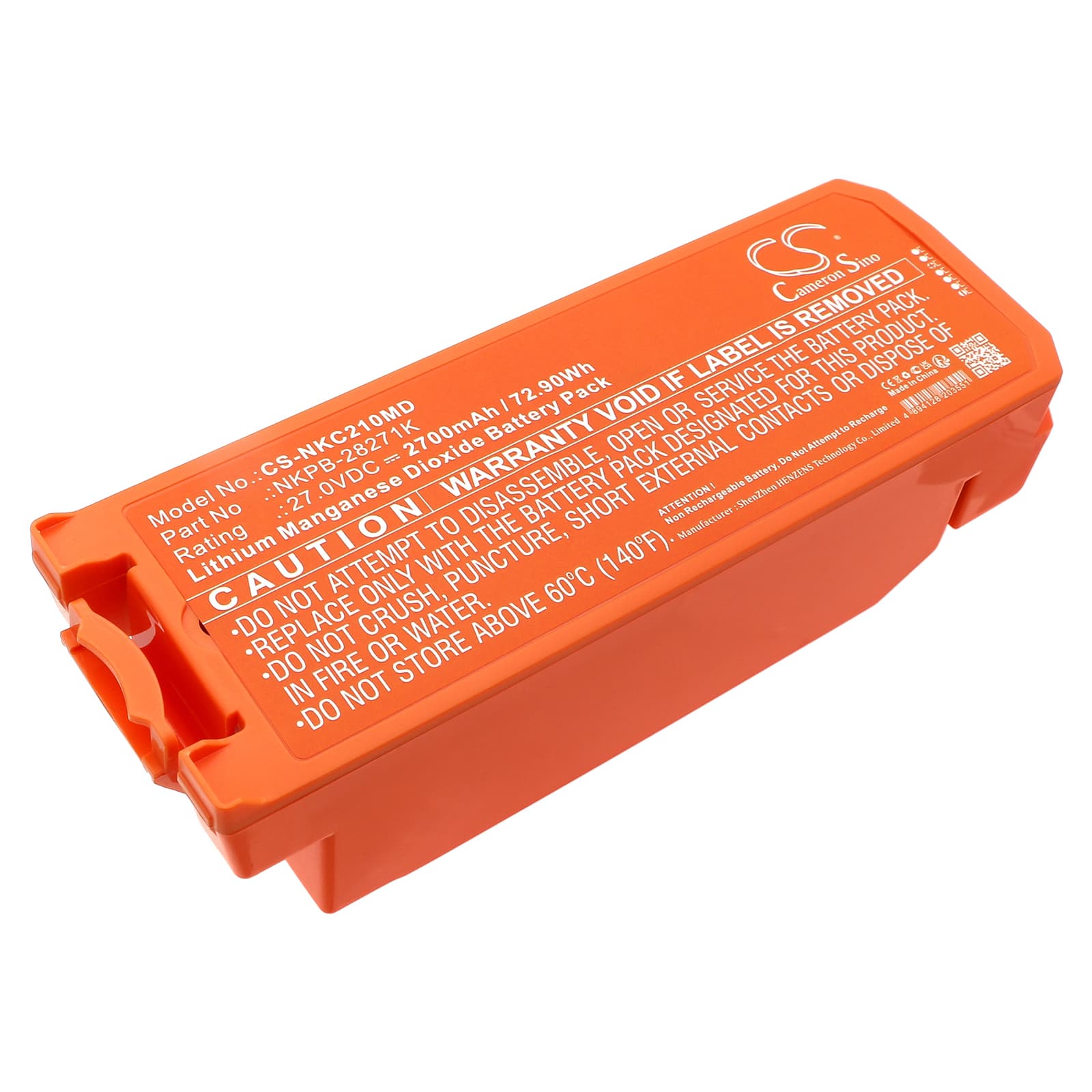

Nihon Kohden Cardiolife AED 2100 Series — 27V Li-MnO2 Replacement Battery (NKPB-28271K)
This 27V, 2700mAh lithium-manganese dioxide battery is the direct replacement for the Nihon Kohden Cardiolife AED 2100 series, including the AED-2100, AED2150, and AED2151. Li-MnO2 chemistry is specified here because it delivers a flat discharge curve at high voltage — critical for AED charge circuits that need consistent energy to build defibrillation capacitor charge. At 72.9Wh, capacity matches the OEM specification for this device family.
- AED 2100 series compatibility: The AED-2100, AED2150, and AED2151 share the same 27V battery platform, connector pinout, and BMS handshake protocol — one battery spec covers the full range. The BMS reads cell chemistry as part of its verification cycle, which is why Li-MnO2 must be matched exactly to this device.
- Bench tested on actual hardware: We ran this battery through the AED 2100 boot sequence and monitored BMS communication at startup. The self-test cycle completed without fault flags, and the charge circuit accepted the cell without triggering a chemistry mismatch error.
- Post-installation self-test protocol: After fitting this battery, let the AED run its full power-on self-test without interruption. The device BMS runs a cell verification pass at startup — cutting power during this sequence writes a false battery fault to memory that persists until the next complete reboot cycle.
Why the AED 2100 rejects a new battery during its internal self-test
The Cardiolife AED 2100 BMS uses a charge-state threshold to pass its self-test — it is not simply checking voltage, it is verifying that the cell profile matches expected OEM parameters. A fresh Li-MnO2 cell that has not completed one full charge-discharge cycle may sit just below the BMS acceptance threshold, triggering a fault even when the cell is physically healthy. This is not a defective battery — it is the device running a conservative verification algorithm. One complete charge cycle recalibrates the BMS reference and the self-test passes on the next boot.
AED 2100 alarming low battery immediately after a confirmed full charge
This alarm appears when the BMS has not completed a learn cycle on a new cell — the fuel gauge is reading state-of-charge from a baseline set for a used cell, not a fresh one. The device compares internal resistance and voltage slope during charge to its stored profile, and a new cell reads differently enough to trigger the low-battery threshold. Run one full charge-discharge cycle outside clinical use to let the BMS establish a new baseline. After that cycle, charge the battery fully and confirm the self-test clears before returning the device to service.
