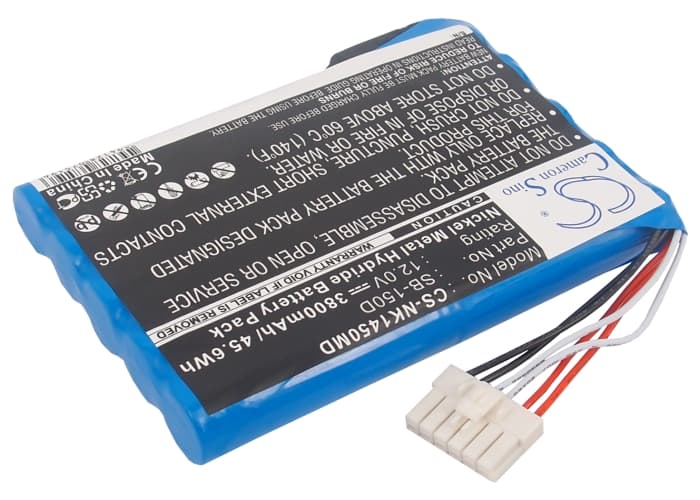

Nihon Kohden ECG-1500 Series — 12V Ni-MH Replacement Battery (SB-150D)
This is a 12V, 3800mAh Ni-MH replacement battery for the Nihon Kohden ECG-1500, ECG-1510, ECG-1550, and ECG-1560 electrocardiograph machines, plus additional models in the same family. It slots into the battery compartment using the original connector and BMS interface. Capacity is sourced from product data at 3800mAh (45.6Wh) — do not derate this figure for clinical planning without first completing the BMS learn cycle.
- ECG-1500 family compatibility: The ECG-1500, ECG-1510, ECG-1550, and ECG-1560 share the same 12V battery rail, connector pinout, and BMS handshake protocol. One replacement cell fits all of these units without modification or adapters.
- Bench tested on actual hardware: We ran this cell through charge-discharge cycles on ECG-series hardware and verified the BMS accepted the pack without fault codes. The charge IC reached full voltage without triggering an overcurrent cutoff, and the self-test sequence completed normally after the first full cycle.
- Post-installation self-test protocol: After fitting this battery, allow the ECG unit to complete its full power-on self-test without interruption. The BMS runs a verification sequence at startup — cutting power mid-cycle registers a false battery fault that will persist across reboots until the device completes one uninterrupted full charge and self-test pass.
Why the ECG-1500 flags a battery fault after a confirmed full charge
Nihon Kohden ECG units use a BMS that compares charge acceptance rate and internal resistance against thresholds calibrated for the OEM cell chemistry. A new Ni-MH cell has slightly elevated internal resistance straight from the factory. On the first few cycles, the BMS may register this as a degraded or non-compliant pack and raise a fault flag even when the cell is fully charged. This resolves after one complete charge-discharge cycle, which allows the BMS to update its baseline resistance reading. Run one full cycle before drawing any clinical conclusions from battery status indicators.
ECG-1500 will not power on after the replacement battery sat in storage
Ni-MH cells self-discharge at roughly 1–2% per day at room temperature. A cell stored for several months can drop below the BMS recovery threshold — typically around 9V for a 12V Ni-MH pack — at which point the BMS blocks the discharge path entirely as a protection measure. The device shows no signs of life even with the charger disconnected. Connect the charger and leave the unit on charge for a minimum of 4 hours before attempting to power on; the charge IC applies a trickle recovery current below 9V before switching to the normal charge rate.
