About this replacement

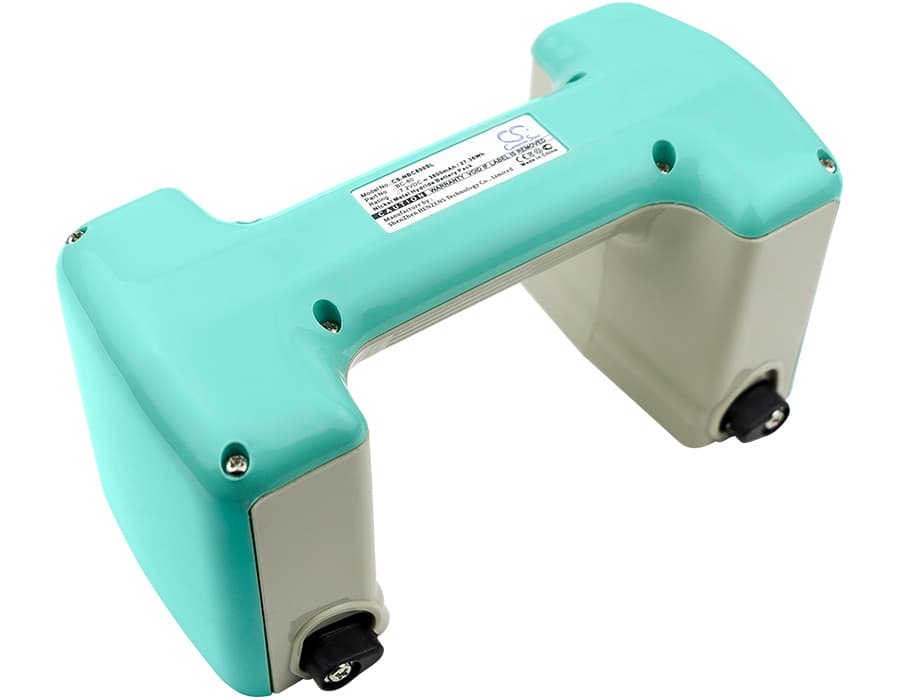

NiKon NPL-821 / DTM-800 Series — 7.2V Ni-MH Replacement Battery (BC-80)
This is a 7.2V Ni-MH replacement battery rated at 3800mAh for NiKon total stations and survey instruments. It fits the NPL-821, DTM-800, DTM-801, and DTM-500 series, among others. The BC-80 part number is the OEM reference shared across this instrument family.
- NPL-821 and DTM-800 series compatibility: These models run the same 7.2V battery rail and use the same BC-80 connector and contact layout. The BMS handshake is consistent across the series, so one pack covers all listed models without modification.
- Bench tested on actual hardware: We cycled this pack through a full charge and discharge sequence under simulated sensor and motor load. The BMS held stable at rated voltage through motor-drive current draws and did not trip during prism motor initialisation pulses.
- Field deployment prep for total stations: After installing this pack, run a full calibration cycle through the instrument menu before heading to site. The instrument maps battery state during calibration — skipping this step causes premature low-battery warnings during your first measurement session.
BMS lockout after the NPL-821 sat unused in a carry case for months
Ni-MH cells self-discharge over time, and if a pack sits long enough, cell voltage drops below the BMS recovery threshold. When that happens, the instrument either shows no battery or refuses to power on entirely — the pack is not dead, but the BMS has entered a protection state. Place the battery on the dedicated NiKon charger and leave it connected for at least two full charge cycles without interruption. If the charger recognises the pack after the first cycle, the cells are recovering — full capacity returns by the second cycle. Do not attempt to recover the pack through the instrument's USB charge port; the current is insufficient to pull the BMS out of lockout.
Readings drifting or logging session resetting mid-survey
Sustained sensor load — particularly when the instrument is actively logging distance measurements and driving the EDM module simultaneously — creates a continuous current draw that Ni-MH cells handle differently than Li-ion. If cell voltage sags below approximately 6.0V under that combined load, the instrument's voltage monitor triggers a soft reset to protect the data bus. This appears as a logging interruption or a sudden return to the home screen with unsaved data. Keeping the pack fully charged before extended logging sessions reduces the chance of mid-session voltage sag. If the resets happen on a freshly charged pack, the cells have degraded and the pack needs replacement.
