About this replacement

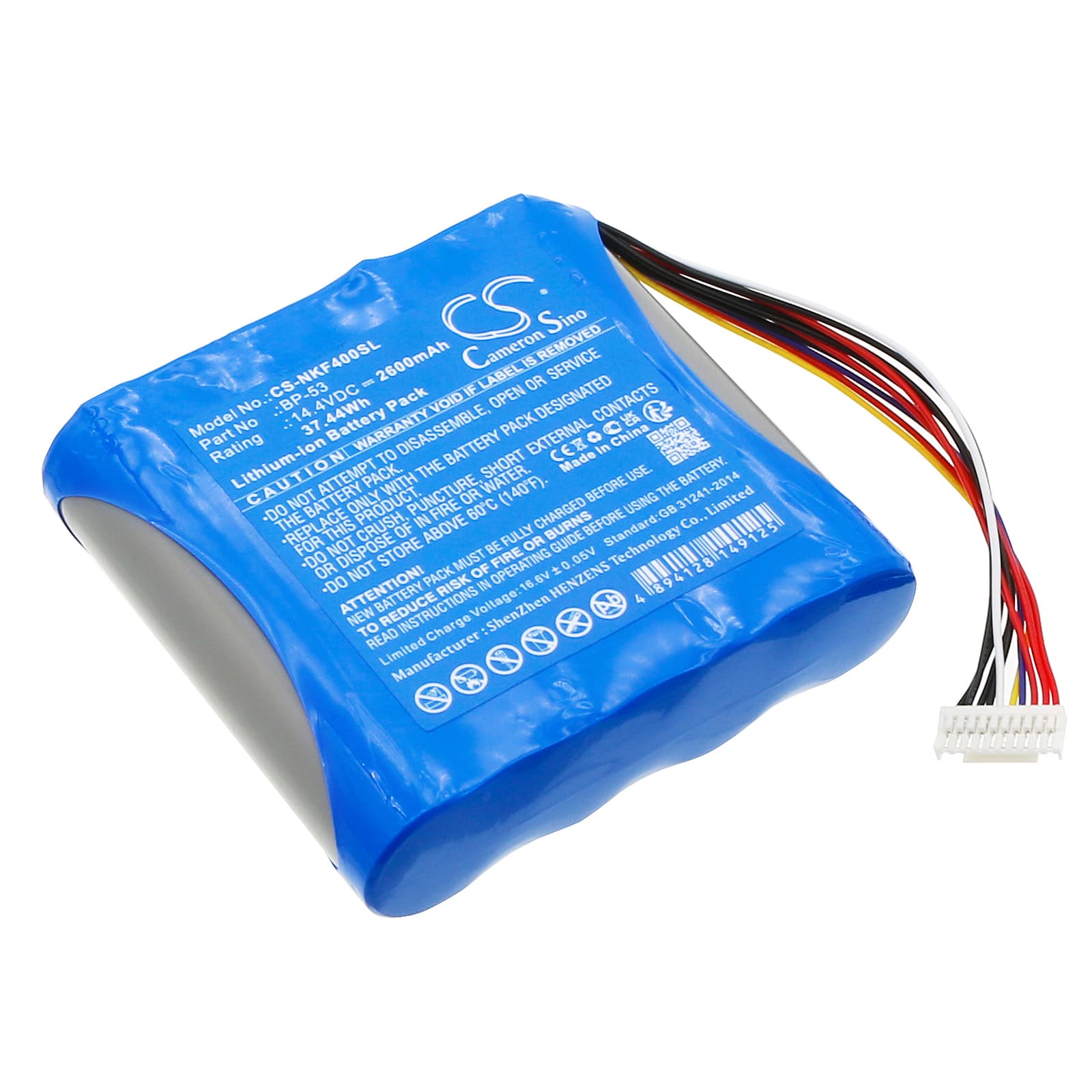

Nissin KF4 / KF4A — 14.4V Li-ion Replacement Battery (BP-53)
This is a 14.4V, 2600mAh Li-ion replacement for the Nissin BP-53 battery pack. It fits the KF4 and KF4A flash units. The pack supplies the sustained current the flash capacitor bank needs to charge and fire repeatedly during a shoot.
- KF4 and KF4A compatibility: Both units use the same BP-53 form factor, connector pinout, and 14.4V power rail. The BMS handshake between the flash control board and the battery pack is identical across both models, so one pack covers both without modification.
- Bench tested on actual hardware: We cycled this pack through repeated rapid-fire sequences and monitored the BMS response. The protection circuit held steady during the capacitor recharge current spikes — no premature cutoff observed across sustained burst shooting.
- Flash capacitor charge cycling: After installing the new pack, run at least five full charge-and-fire cycles before a critical shoot. The KF4's charging circuit recalibrates recycle time estimates against actual cell output during early cycles, and skipping this step can cause the ready indicator to lag behind true capacitor charge state.
Why the KF4 shows a slow recycle time with a freshly charged pack
The KF4 monitors capacitor recharge current to estimate battery state. A new or recently stored Li-ion cell has slightly elevated internal resistance until it completes a few full discharge-charge cycles. During this break-in period, the flash control board reads the higher resistance as reduced available current and extends recycle intervals accordingly. After three to five full cycles, internal resistance drops to rated levels and recycle speed returns to normal. No settings change is needed — the pack self-conditions through use.
KF4 powers on but shuts off immediately when the flash fires
A capacitor dump during flash firing draws a sharp current spike that can exceed the BMS overcurrent threshold if the pack has been stored below 12V. At that state of charge, the BMS trips as a protection response — not a fault with the pack itself. Connect the BP-53 pack to the KF4's charger and bring it to a full charge before attempting to fire. Once resting voltage reaches 16.4V at full charge, the BMS resets automatically and firing resumes normally.
