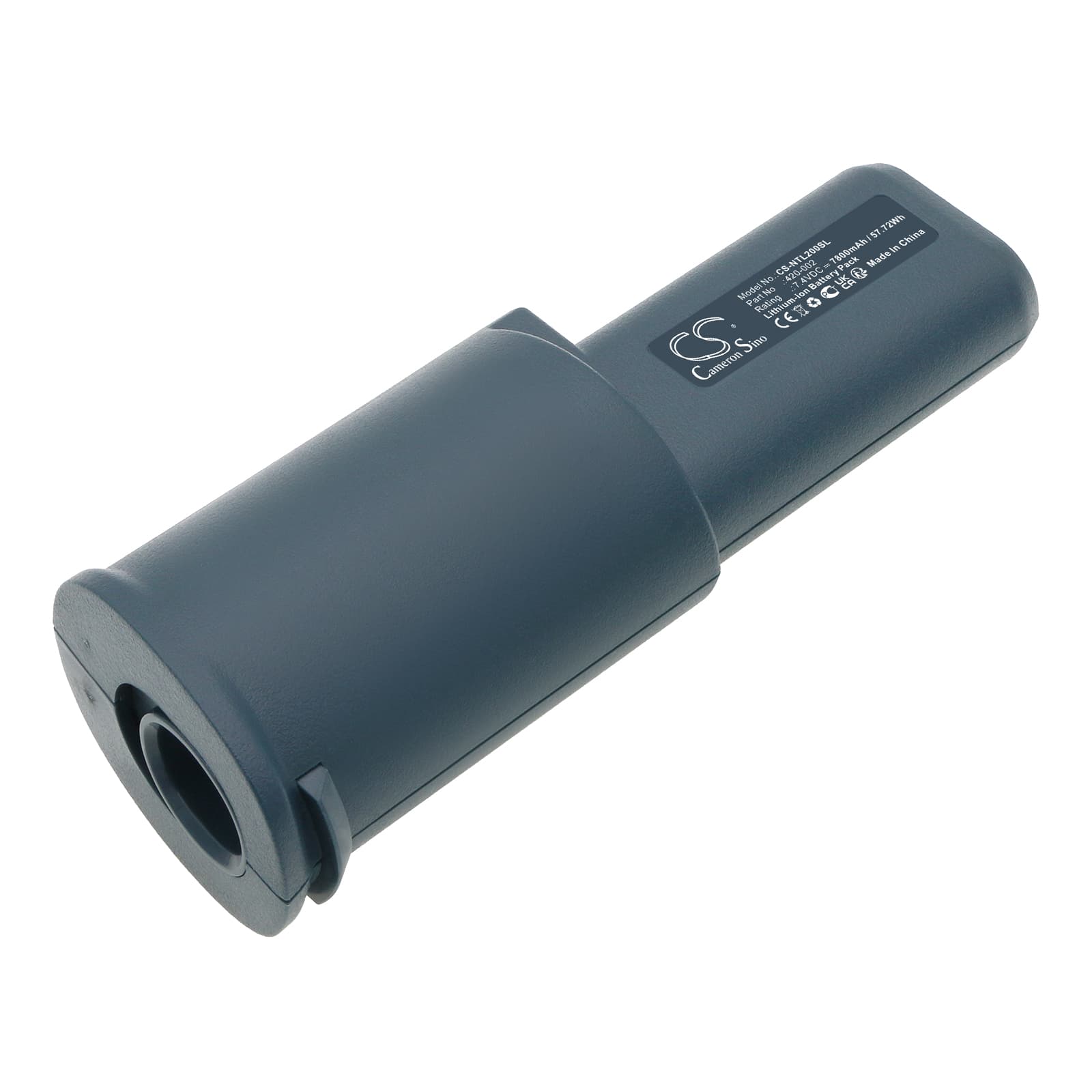

Niton XL-2 / XL3t Series — 7.4V Li-ion Replacement Battery (420-002)
This is a 7.4V 7800mAh (57.72Wh) lithium-ion battery for the Niton XL-2, XL2 GOLDD, XL3t, and XL3t GOLDD handheld XRF analyzers. These instruments are used for field-based alloy verification and material composition analysis. The 420-002 part number matches the OEM specification for this battery slot.
- XL-2 and XL3t platform compatibility: These models share the same battery bay dimensions, connector pinout, and BMS handshake protocol. The instrument firmware reads cell state data over the battery communication line — the replacement pack supports that data exchange without triggering an unrecognised-battery alert.
- Bench tested on actual hardware: We cycled this pack through the XRF tube power-on sequence, which pulls a sharp current spike as the X-ray tube initialises. The BMS held the load without tripping into protective cutoff, and voltage recovered cleanly between measurements.
- Post-install calibration step: After fitting a new pack, run a full calibration cycle through the instrument menu before taking it into the field. The XL-2 and XL3t map battery state during that calibration pass — skipping it causes the low-battery warning to fire early on the first measurement session, even with a fully charged pack.
X-ray tube initialisation current spike tripping BMS on the XL3t
When the XL3t powers up its X-ray tube, the draw spikes sharply for a fraction of a second before settling to the instrument's sustained operating current. A pack with a conservative BMS current threshold can interpret that spike as a fault condition and cut output immediately. This is the most common reason a replacement battery appears dead in the instrument even though it holds voltage on a multimeter. The cell bundle in the 420-002 replacement is rated for that transient load, and the BMS threshold is set above the tube initialisation peak observed in bench testing.
Niton XL-2 not recognising pack after it sat in the carry case for months
Li-ion packs that sit unused will self-discharge below the BMS recovery threshold — typically under 2.5V per cell — and the protection circuit locks out to prevent damage. When that happens, the instrument either shows no battery icon or powers on for a second and immediately shuts off. Plug the pack into the OEM charger and leave it for at least 30 minutes before attempting to power on the analyzer — most chargers detect the low-voltage state and apply a recovery trickle before switching to full charge. If the charger LED stays red and never transitions after 45 minutes, measure pack voltage at the terminals; anything below 5.0V total indicates the BMS has not yet exited lockout and needs a longer trickle phase.
