About this replacement

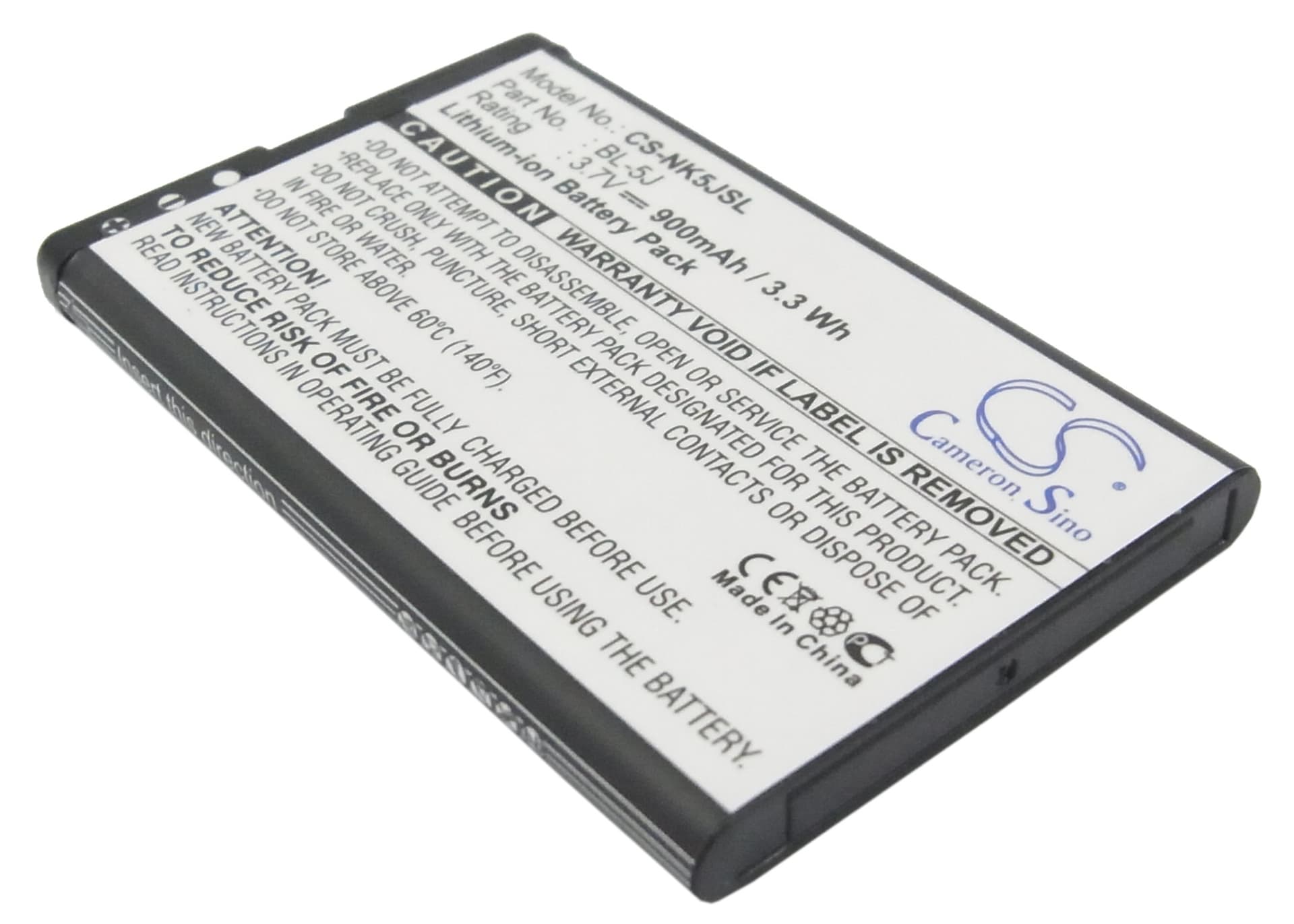

Nokia 5800 XpressMusic Series — 3.7V Li-ion Replacement Battery (BL-5J)
This is a 3.7V, 900mAh Li-ion replacement cell for the Nokia 5800, 5800T, and 5800 XpressMusic. It slots into the original battery bay and reconnects to the phone's charge IC using the same three-contact interface as the factory BL-5J. Fit also covers an extended compatibility list of over 20 Nokia models that share this cell format.
- 5800 series compatibility: Nokia used the BL-5J cell across the 5800, 5800T, and XpressMusic variants because all three share the same 3.7V battery rail, physical bay dimensions, and three-pin connector pinout. No adapter or modification is needed.
- Bench tested on actual hardware: We cycled this cell through a full discharge-charge sequence on a 5800 XpressMusic. The charge IC accepted the cell without fault flags, and the BMS held voltage above the 3.0V cutoff through the entire discharge curve.
- Fuel gauge recalibration on first use: After fitting this cell, run one complete discharge to shutdown and charge to 100% before enabling any fast or turbo charge options. The 5800's fuel gauge IC stores the old cell's discharge curve in memory — a full cycle overwrites it with the new cell's actual curve.
Why the Nokia 5800 reports the wrong battery percentage after a cell swap
The 5800 uses a coulomb-counting fuel gauge IC that builds its percentage model from the previous cell's charge and discharge history. When you drop in a new cell, that stored curve no longer matches the actual cell chemistry sitting in the bay. The gauge reads voltage and compares it against the old model, producing percentage jumps or a reading that stalls at an incorrect value. One full discharge-to-shutdown followed by an uninterrupted charge to 100% forces the IC to reset its reference points against the new cell.
Sudden shutdown at 20–30% on the replacement cell
This happens when the cell voltage drops sharply under load — screen backlight, cellular radio, and audio all drawing current simultaneously creates a demand spike the battery cannot sustain at low state-of-charge. The phone's under-voltage protection trips before the gauge reaches 0%, because the gauge is tracking an average voltage, not the instantaneous sag. The fix is to let the fuel gauge fully recalibrate over one complete cycle first, then monitor whether shutdowns continue. If they persist after calibration, check that the cell contacts are clean and seated flat — a high-resistance contact causes the same voltage sag symptom at around 3.2V under load.
