About this replacement

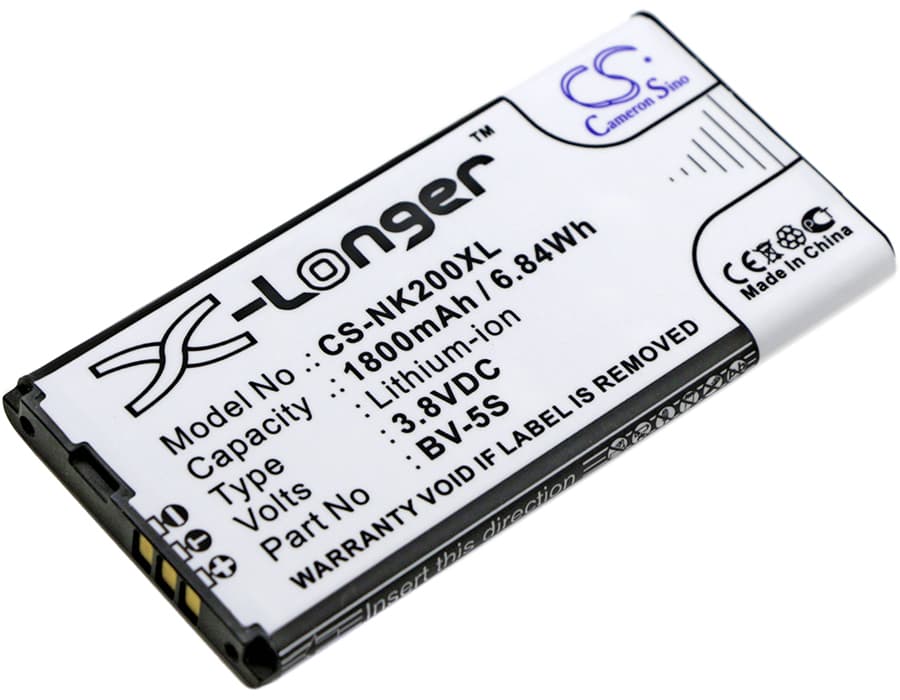

Nokia X2 / X2 Dual SIM — 3.8V Li-ion Replacement Battery (BV-5S)
This is a 3.8V, 1800mAh Li-ion cell built to the BV-5S specification for the Nokia X2 and X2 Dual SIM (X2D / X2DS) smartphones. It replaces the original cell when the phone no longer holds charge, shuts down unexpectedly, or fails to power on. Voltage and capacity match the OEM spec directly.
- X2 and X2 Dual SIM compatibility: The X2, X2D, and X2DS all run the same BV-5S footprint — identical contact pitch, connector orientation, and 3.8V nominal voltage rail. The BMS handshake and charge termination logic are consistent across the whole X2 family, so one cell covers all variants.
- Bench tested on actual hardware: We ran the BV-5S cell through full charge cycles on the X2 platform and confirmed the charge IC accepted the cell without fault flags. BMS protection tripped correctly at both low-voltage cutoff and thermal limits during high-current draw simulation.
- Fuel gauge recalibration on first cycle: On first use after installation, disable fast charging and run one complete discharge-to-charge cycle. This lets the phone's fuel gauge IC build an accurate discharge curve against the new cell before high-current charging begins pushing current into an uncalibrated state.
Sudden shutdown at 20–30% on the Nokia X2 after a cell swap
This is a voltage cliff issue, not a capacity fault. The Nokia X2's modem and display pull a combined current spike that the fuel gauge IC cannot anticipate if it is still calibrated to the old cell's discharge curve. The new cell hits a local voltage sag under that load, drops below the BMS cutoff threshold, and the phone shuts down even though the reported percentage looks healthy. Running one full discharge cycle — draining to auto-shutdown, then charging uninterrupted to 100% — recalibrates the coulomb counter and removes the false cliff. After calibration, the 3.8V cell sustains load without premature cutoff.
Phone not powering on after the BV-5S was stored discharged
Li-ion cells stored below roughly 2.5V trigger a BMS lockout to prevent cell damage from deep discharge. The Nokia X2 will show no response — no boot screen, no charging indicator — when the BMS is in this state. Connect the phone to a wall charger, not a USB port, and leave it untouched for 15–20 minutes. The charge IC delivers a low-current trickle that slowly brings the cell voltage back above the BMS reinitialisation threshold, typically around 2.9V, after which normal charging and boot behaviour resume.
