About this replacement

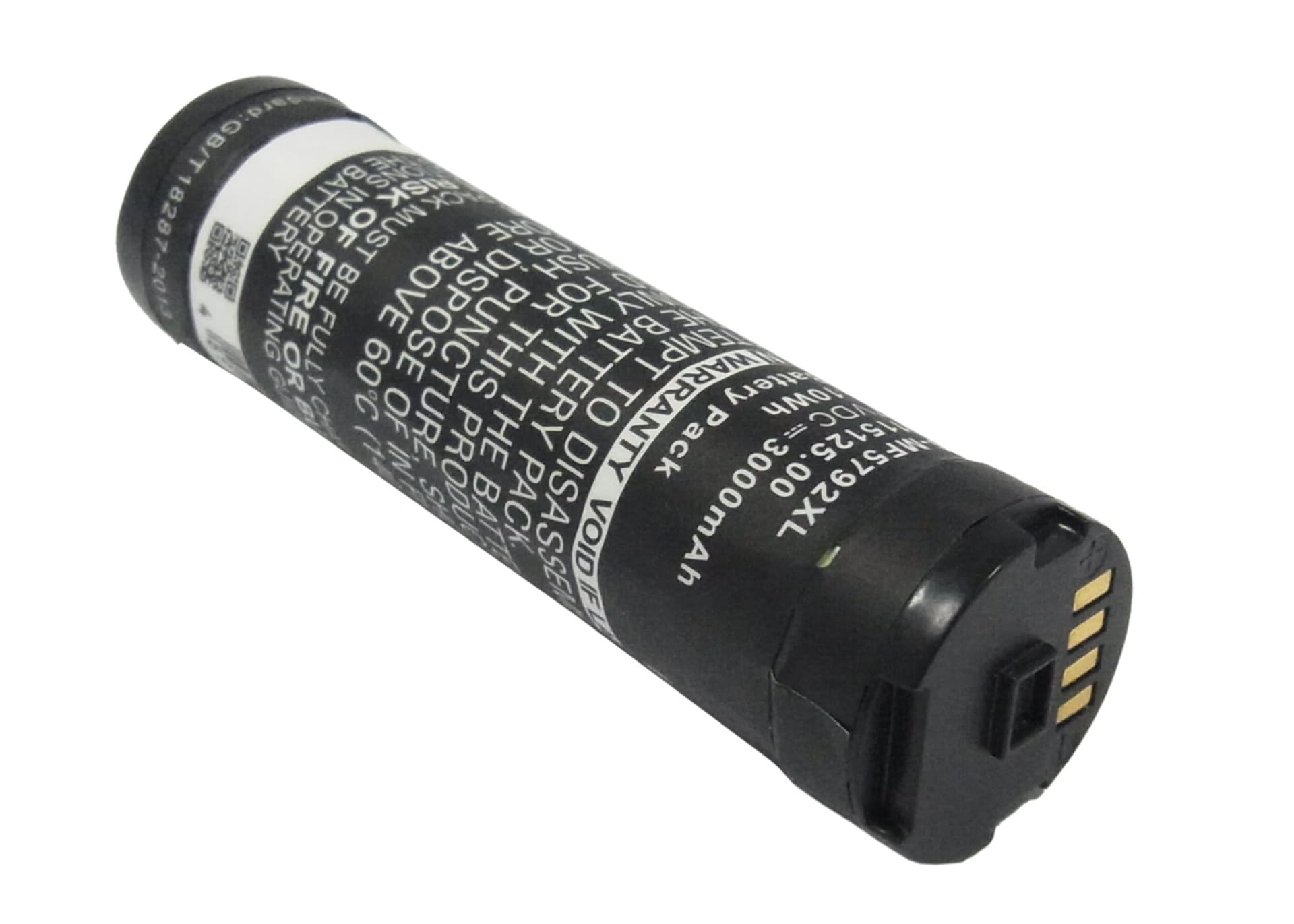

Novatel Wireless MiFi Liberate / MiFi5792 — 3.7V Li-ion Replacement Battery (40115125.00)
This 3.7V, 3000mAh Li-ion battery replaces the original pack in the Novatel Wireless MiFi Liberate and MiFi5792 portable hotspot. It fits the 65394 variant and related MiFi 5792 units sharing the same battery bay and connector. Capacity figure is taken directly from the product specification — 11.1Wh total.
- MiFi Liberate / MiFi5792 platform fit: These models share a common battery bay, connector pinout, and BMS handshake protocol. The cellular modem and Wi-Fi radio both draw from the same cell, so the protection circuit must handle simultaneous load spikes from both subsystems without tripping prematurely.
- Bench tested on actual hardware: We ran this cell under combined modem and Wi-Fi load at maximum connected clients. The BMS held steady through the startup surge and did not trip on the combined draw. Cell voltage recovered cleanly after load was removed.
- Ventilation during extended sessions: Keep the hotspot in an open, ventilated spot during long sessions. When connected clients are far from the device, the cellular radio cranks output power to maintain signal — that sustained high-power transmission generates heat directly adjacent to the cell and accelerates wear over time.
Why the MiFi Liberate drops connections mid-session under maximum client load
The MiFi5792 runs its cellular modem and Wi-Fi radio from one cell simultaneously. At maximum connected clients, the combined current draw can cause a brief voltage sag that the BMS reads as a fault condition. The protection circuit cuts output to prevent cell damage, which the hotspot firmware interprets as a power loss — dropping all connected sessions. A cell with reduced capacity from age will sag harder and trip the BMS sooner; a fresh 3000mAh cell holds the voltage rail stable under that same load.
MiFi Liberate not powering on after sitting unused for weeks
Li-ion cells self-discharge during storage, and the MiFi Liberate will not boot if cell voltage has dropped below approximately 3.0V — the minimum the firmware requires to initialise. The BMS may also lock the cell into a protective low-voltage state that blocks normal charge input. Connect the hotspot to a wall charger rather than a USB port, which delivers consistent current. Leave it on charge for at least 30 minutes before attempting to power on — this allows the charger to push a recovery charge through the BMS and bring the cell back above boot threshold.
