About this replacement

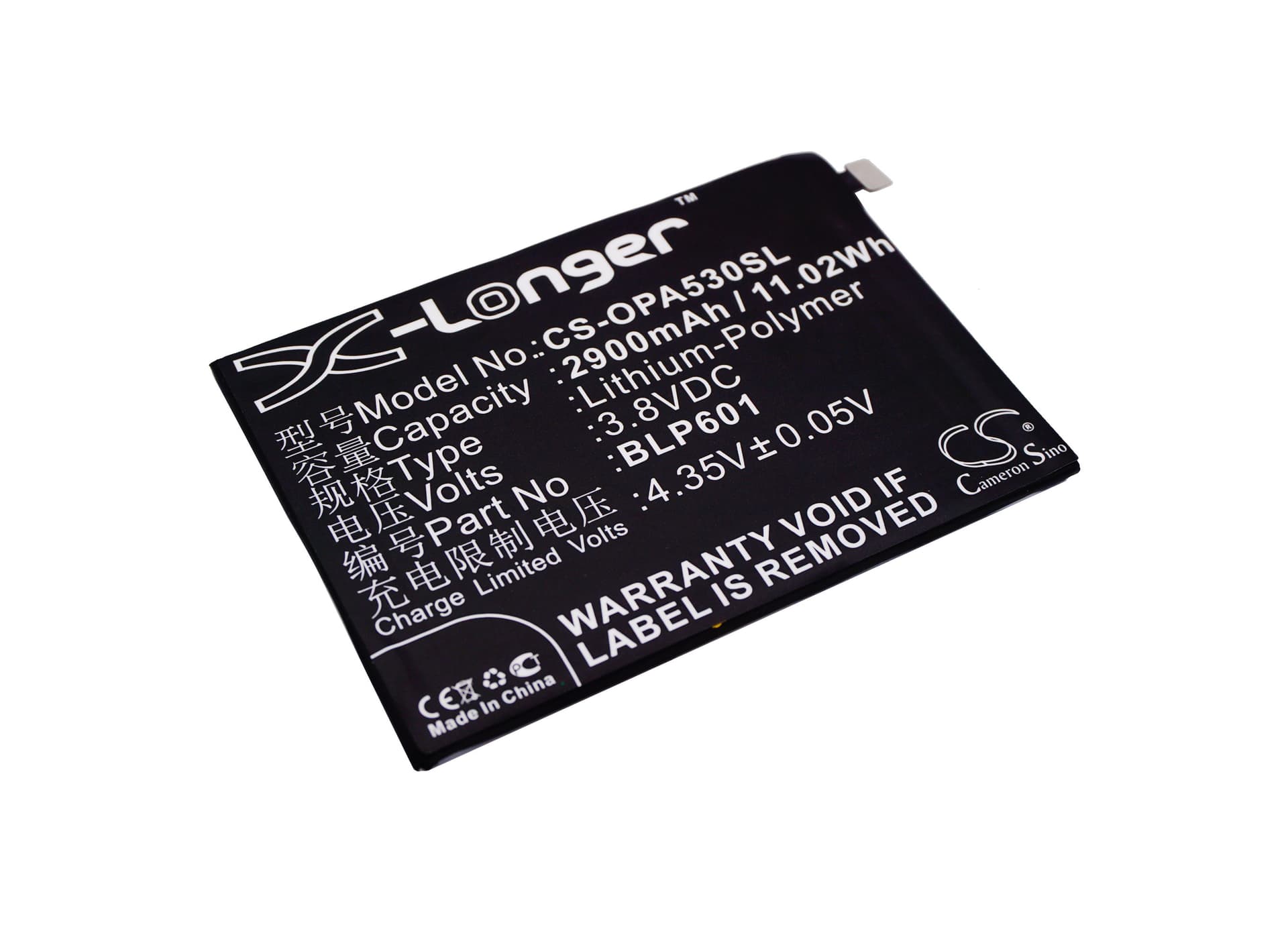

Oppo A53 Series — 3.8V Li-Polymer Replacement Battery (BLP601)
This is a 3.8V, 2900mAh Li-Polymer replacement battery for the Oppo A53, A53m, A53t, and A53 Dual SIM TD-LTE. It fits the original BLP601 footprint and restores power to phones that no longer hold charge or fail to power on. At 89.40 × 64.82 × 3.40mm, it slots into the same bay as the factory cell.
- A53 variant coverage: The A53, A53m, A53t, and Dual SIM TD-LTE variants all share the same chassis width, connector pinout, and BMS handshake spec — one BLP601 cell covers the full range without modification.
- Bench tested on actual hardware: We ran this cell through charge and load cycles on the A53 platform. The BMS accepted handshake on first connect, charge termination triggered correctly at 4.35V, and the protection circuit tripped as expected under over-discharge conditions.
- Fuel gauge recalibration on first use: After installation, disable fast charging and run one full discharge-to-charge cycle at standard rate. The A53's fuel gauge IC calibrates its coulomb counter against the new cell's discharge curve — skipping this step causes percentage jumps and premature low-battery warnings for several days.
Why the Oppo A53 reports wrong battery percentage after a cell swap
The A53 uses a coulomb-counting fuel gauge IC that builds its model from the original cell's charge and discharge history. When a new cell goes in, that stored model no longer matches the physical cell. The IC reports percentage against stale data, so readings appear stuck, jump suddenly, or show full charge when the cell is not actually full. One complete discharge below 10% followed by a full charge at standard rate forces the IC to rebuild its curve against the new cell.
Sudden shutdown at 20–30% on the replacement cell
This happens when the fuel gauge IC hasn't recalibrated yet and the cell hits a voltage cliff under load. The modem radio and screen together can pull enough current to drop cell voltage below the BMS cutoff threshold — even when the OS still shows 25%. The phone cuts out not because the cell is empty, but because voltage sags below 3.4V under that combined draw. Run one full unconstrained discharge cycle and the fuel gauge will remap the low-end voltage curve, pushing the reported cutoff point closer to true empty.
