About this replacement

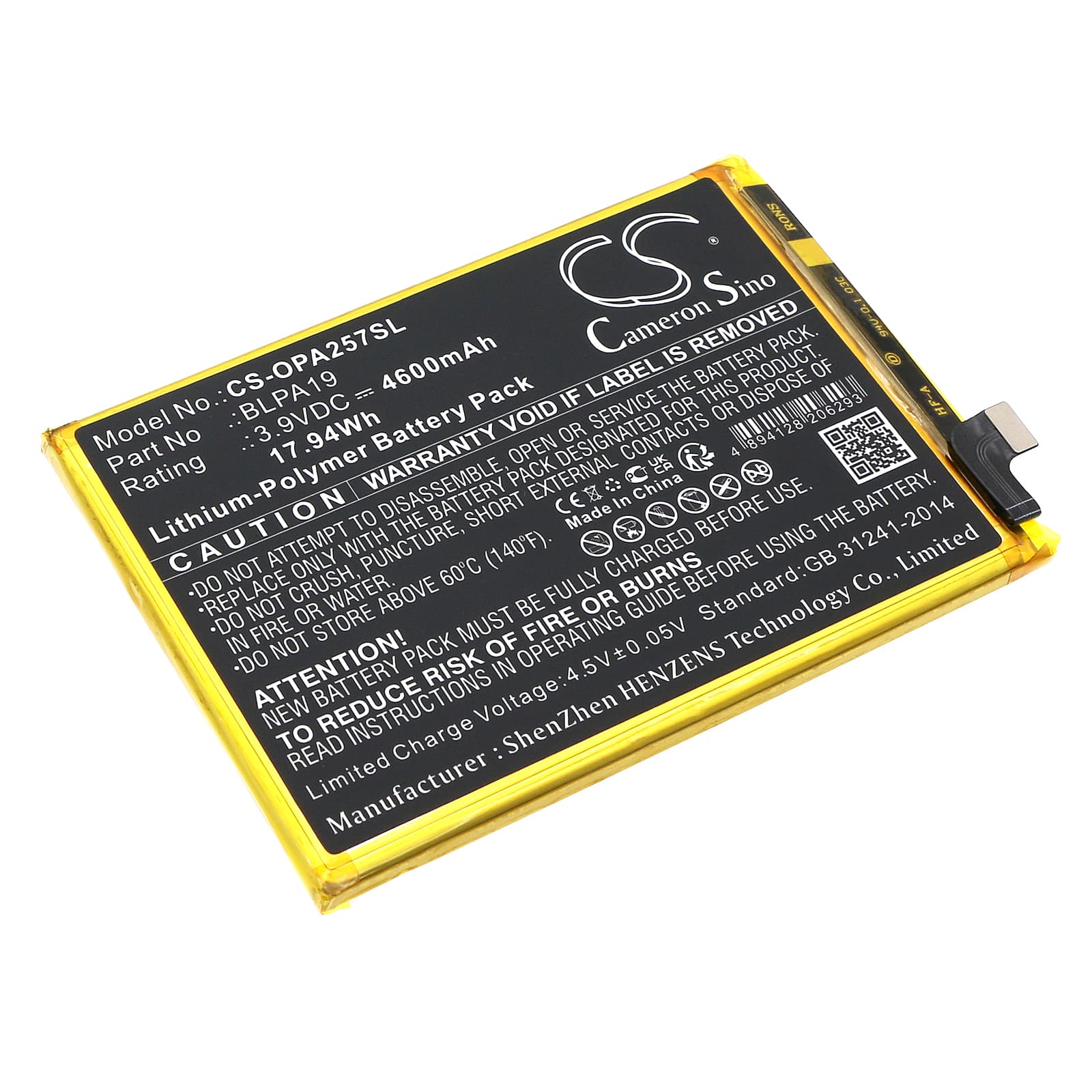

Oppo A58 / CPH2577 — 3.9V Li-Polymer Replacement Battery (BLPA19)
This is a 3.9V, 4600mAh Li-Polymer cell replacing the OEM BLPA19 battery in the Oppo A58 (CPH2577). It fits directly into the original battery bay with no modification. Capacity is rated at 17.94Wh — matching the stock specification.
- A58 and CPH2577 compatibility: Both model designations are the same handset sold across different regions. They share identical battery bay dimensions (93.80 × 66.00 × 4.60mm), the same 3.9V nominal voltage rail, and the same BLPA19 connector and BMS handshake — so one cell covers both variants.
- Bench tested on actual hardware: We ran this cell through charge and discharge cycles on an Oppo A58 unit. The BMS accepted the cell without fault codes, and the charge IC completed a full cycle without thermal shutdown or communication errors.
- Fuel gauge recalibration on first use: After installation, disable SUPERVOOC or fast charging and run one complete discharge-to-charge cycle at standard speed. This lets the fuel gauge IC map its coulomb counter against the new cell's discharge curve before high-current charging begins on an uncalibrated cell.
Why the Oppo A58 reports wrong battery percentage after a cell swap
The A58 uses a coulomb-counting fuel gauge IC that builds its discharge model from the previous cell's behaviour. When a new cell goes in, the IC still references the old degraded curve, so percentage readings can appear inflated or jump unexpectedly. The fix is a single uninterrupted discharge from 100% down to automatic shutdown, followed by a full charge at standard speed — no fast charging during this first cycle. After that cycle the fuel gauge recalibrates its internal model to the new cell and percentage accuracy stabilises.
Sudden shutdown at 20–30% on the replacement cell
This happens when the fuel gauge IC hasn't yet recalibrated — it reports a percentage that doesn't match actual cell voltage, and the phone cuts out the moment voltage drops below the protection threshold under modem or display load. It is not a faulty cell. Run the recalibration cycle above, then check that the phone shuts down closer to 3–3.5V per cell under normal use. If shutdowns continue after two full cycles, confirm the battery connector is fully seated and not lifting at one edge.
