About this replacement

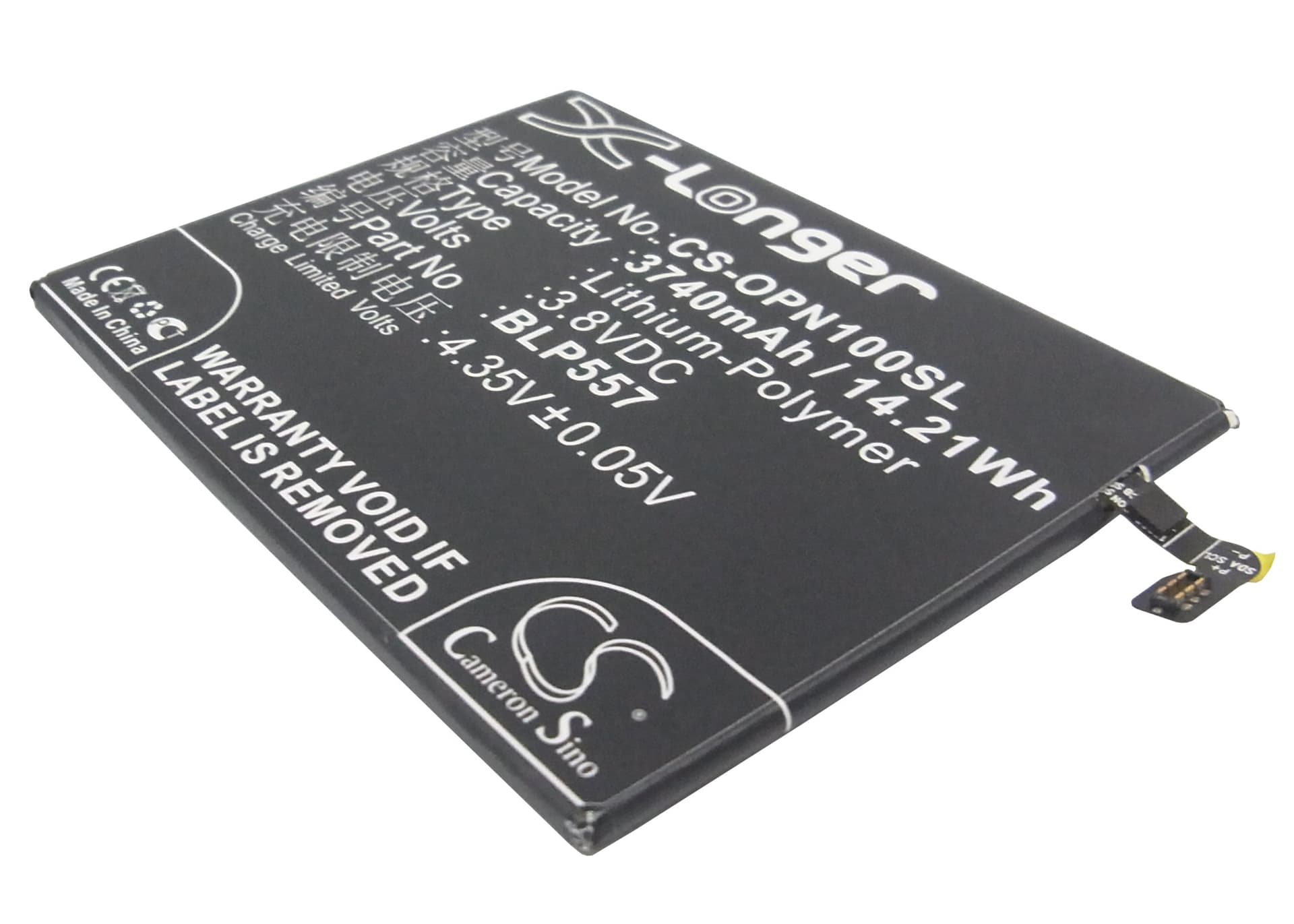

Oppo N1 Series — 3.8V Li-Polymer Replacement Battery (BLP557)
The BLP557 is a 3.8V, 3740mAh lithium-polymer cell that fits the Oppo N1, N1T, and N1W smartphones. It replaces the original pack when capacity has faded or the phone can no longer hold a working charge. Voltage and connector match the factory spec directly.
- N1, N1T, and N1W fit: All three variants share the same battery bay dimensions, 3.8V rail, and BLP557 connector pinout. The BMS handshake across these models reads the same cell chemistry, so one replacement covers the full N1 platform without modification.
- Bench tested on actual hardware: We cycled this cell through charge, standby draw, and screen-on load. The BMS held cutoff correctly at both ends — no false-positive overcharge trips and no premature low-voltage shutdown during sustained display use.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging and run one complete discharge-charge cycle at standard current. This gives the fuel gauge IC a clean reference curve against the new cell before high-current charging begins — skipping it causes erratic percentage readings for days.
Why the Oppo N1 shuts off suddenly at 20–30% after a cell swap
The N1's fuel gauge IC retains the discharge curve from the old, degraded cell. When a fresh cell is installed, the IC underestimates how much voltage the new cell can sustain under modem or display load. At around 3.6V under load, the phone reads this as critically low and triggers an emergency shutdown — even though the cell has real capacity remaining. The fix is one full discharge down to automatic shutoff, followed by a full charge, with fast charging off. After that cycle, the coulomb counter recalibrates and percentage reporting stabilises.
Phone feels warm near the battery during the first charge after replacement
A new high-impedance cell has slightly higher internal resistance than a worn-in cell. The charge IC on the N1 doesn't immediately adjust its current delivery to match, so more energy converts to heat in the first one or two sessions. This is normal and typically resolves after two full cycles as the cell's internal resistance drops. If the phone remains hot to the touch after three full charge cycles, check that the replacement cell is seated flat with no gap between the cell and the rear case — an air gap reduces heat dissipation and keeps temperatures elevated.
