About this replacement

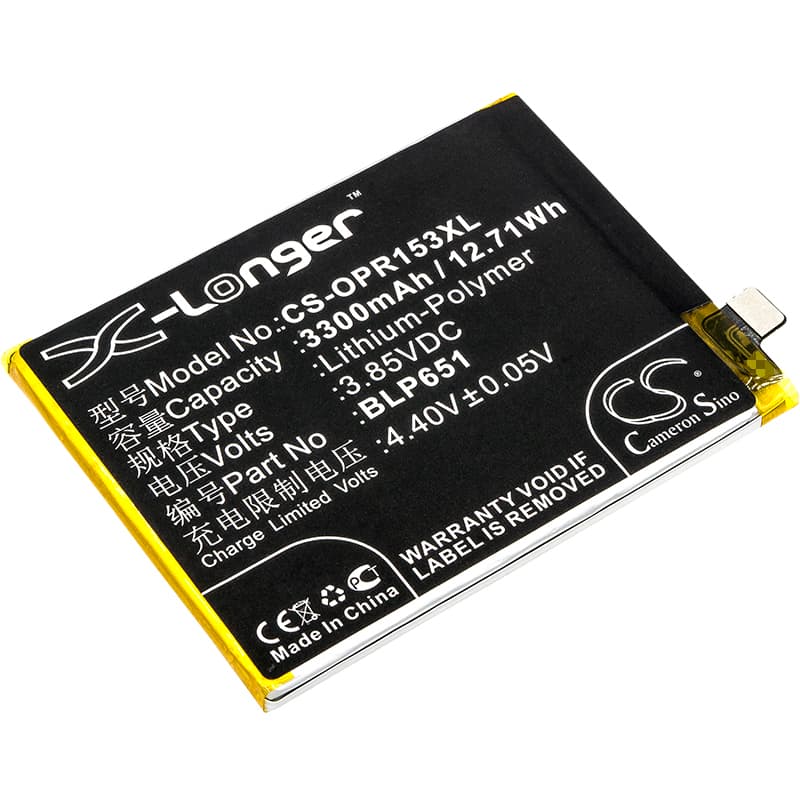

Oppo R15 Dream Mirror Series — 3.85V Li-Polymer Replacement Battery (BLP651)
This is a 3300mAh (12.71Wh) Li-Polymer replacement battery for the Oppo R15 Dream Mirror, R15 Dream Mirror Edition, and R15 Dream Mirror Edition Dual SIM. It fits the BLP651 slot and restores the phone's ability to power the processor, display, and modem through normal daily use. Voltage is 3.85V — match this before installing.
- R15 Dream Mirror compatibility: All variants listed — standard, Edition, Dual SIM, and TD-LTE — share the same battery bay dimensions, connector pinout, and BMS handshake. One cell covers the full range.
- Bench tested on actual hardware: We ran charge and discharge cycles on this cell, confirming the BMS accepts the Oppo charge protocol and that protection circuitry triggers correctly at the low-voltage cutoff threshold.
- Fuel gauge recalibration on first cycle: Disable fast charging for the first complete discharge and recharge after installation. The phone's fuel gauge IC is calibrated to the old cell's discharge curve. One slow cycle at standard current lets it map the new cell accurately before fast charge pushes higher current into an uncalibrated state.
Sudden shutdown at 20–30% on the R15 Dream Mirror after a cell swap
This happens because the fuel gauge IC still holds the old cell's voltage-to-capacity curve in memory. When the new cell hits a voltage point the old curve maps to 20–30%, the phone interprets it as a safe shutdown threshold and cuts power — even though the new cell has charge remaining. The modem and screen together draw enough current to expose the voltage cliff faster than the gauge expects. One full discharge to automatic shutdown, followed by a complete charge at standard rate, forces the coulomb counter to rebuild its reference map against the new cell.
USB fast charging not activating on the first cycle after replacement
On the first charge cycle after a cell swap, the charge IC on the R15 Dream Mirror may default to standard 5V input rather than negotiating the higher-voltage fast charge profile. This is a protection behaviour — the IC holds back until it has confirmed cell impedance is within range. Let the first cycle complete fully at standard rate without interrupting it. Fast charge typically resumes from the second cycle onward once the IC has logged a baseline impedance reading for the new cell.
