About this replacement
Oppo Realme 10 Pro+ — 3.87V Li-Polymer Replacement Battery (BLP951)

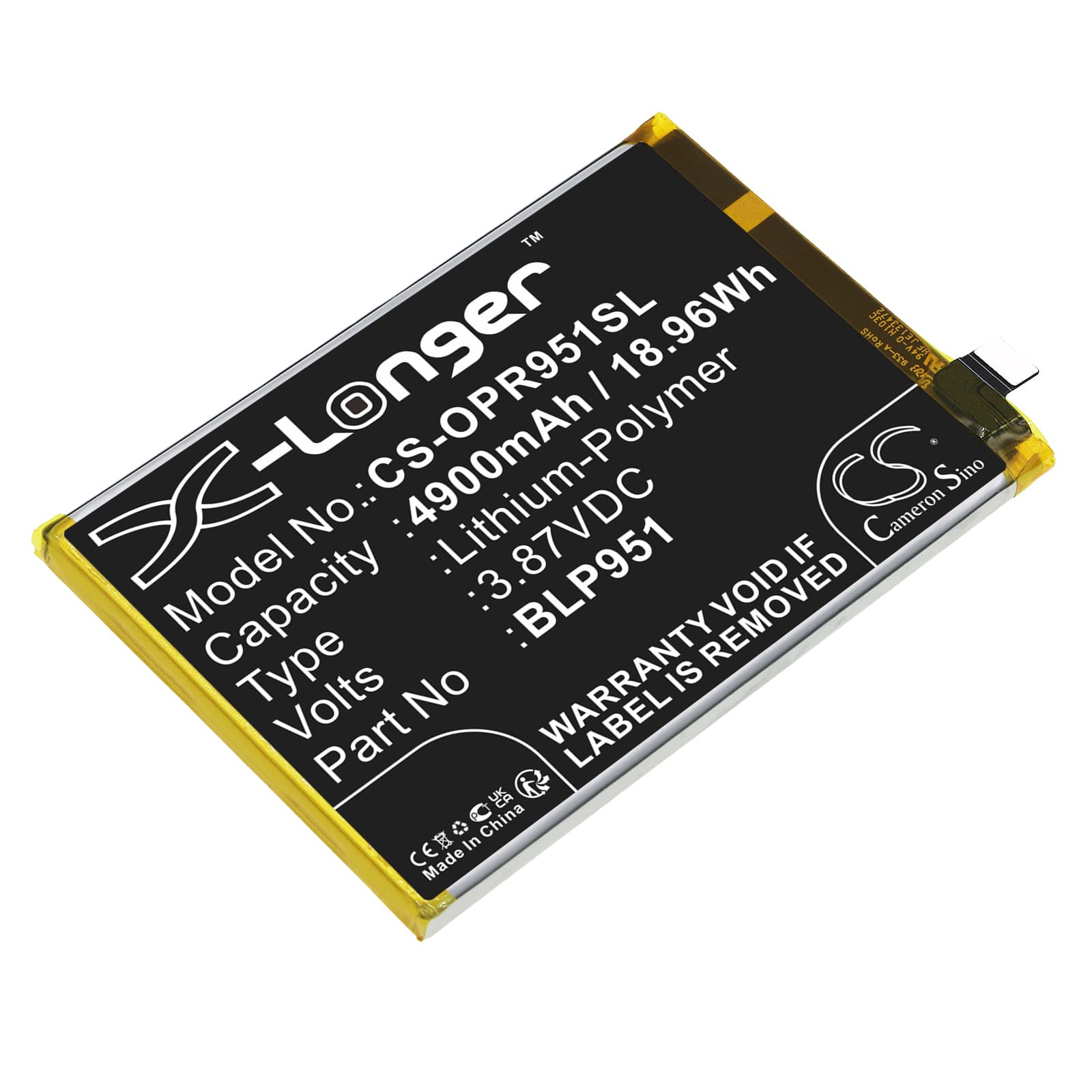

The BLP951 is a 3.87V, 4900mAh lithium-polymer cell that fits the Realme 10 Pro+, RMX3687, and RMX3686. It replaces a degraded or failed original battery in the device's rear housing. At 18.96Wh, it matches the stock energy capacity these phones draw across the display, modem, and processor.
- RMX3687 and RMX3686 compatibility: Both board revisions use the same 3.87V power rail, BMS handshake protocol, and flex connector pinout — the BLP951 cell covers both without any modification to the connector or cable routing.
- Bench tested on actual hardware: We ran the cell through a full discharge-charge cycle on a Realme 10 Pro+ test unit. The BMS accepted the cell without fault codes, and the charge IC stepped through CC/CV phases cleanly at the rated voltage ceiling.
- Fuel gauge recalibration on first use: On first use after installation, disable fast charging for one complete discharge-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging pushes load into an uncalibrated coulomb counter — preventing erratic percentage readings early on.
Sudden shutdown at 20–30% on the replacement cell
A new cell has a slightly different internal resistance profile than the worn cell the fuel gauge IC was calibrated against. Under peak load — 5G modem handoff, high-brightness display, or a background sync burst — voltage can sag below the BMS cutoff threshold even when the OS still reports 20–30% remaining. The fuel gauge IC is reading a stored model of the old cell, not the actual charge state of the new one. Run one full discharge to auto-off, then charge uninterrupted to 100% to force the IC to rewrite its reference curve against the BLP951's actual characteristics.
USB-PD or VOOC fast charge not triggering after installation
On the first charge cycle after a cell swap, the charge IC sometimes withholds proprietary fast-charge negotiation until it confirms the new cell's impedance is within an expected range. This shows as the phone charging at standard 5W even when plugged into a VOOC or PD adapter. Disconnect and reconnect the charging cable after the phone has been on charge for roughly five minutes — by that point the charge IC has sampled the cell and will re-initiate the fast-charge handshake. If it still doesn't trigger, complete one full standard-rate charge cycle first, then retry the fast-charge adapter.
