About this replacement

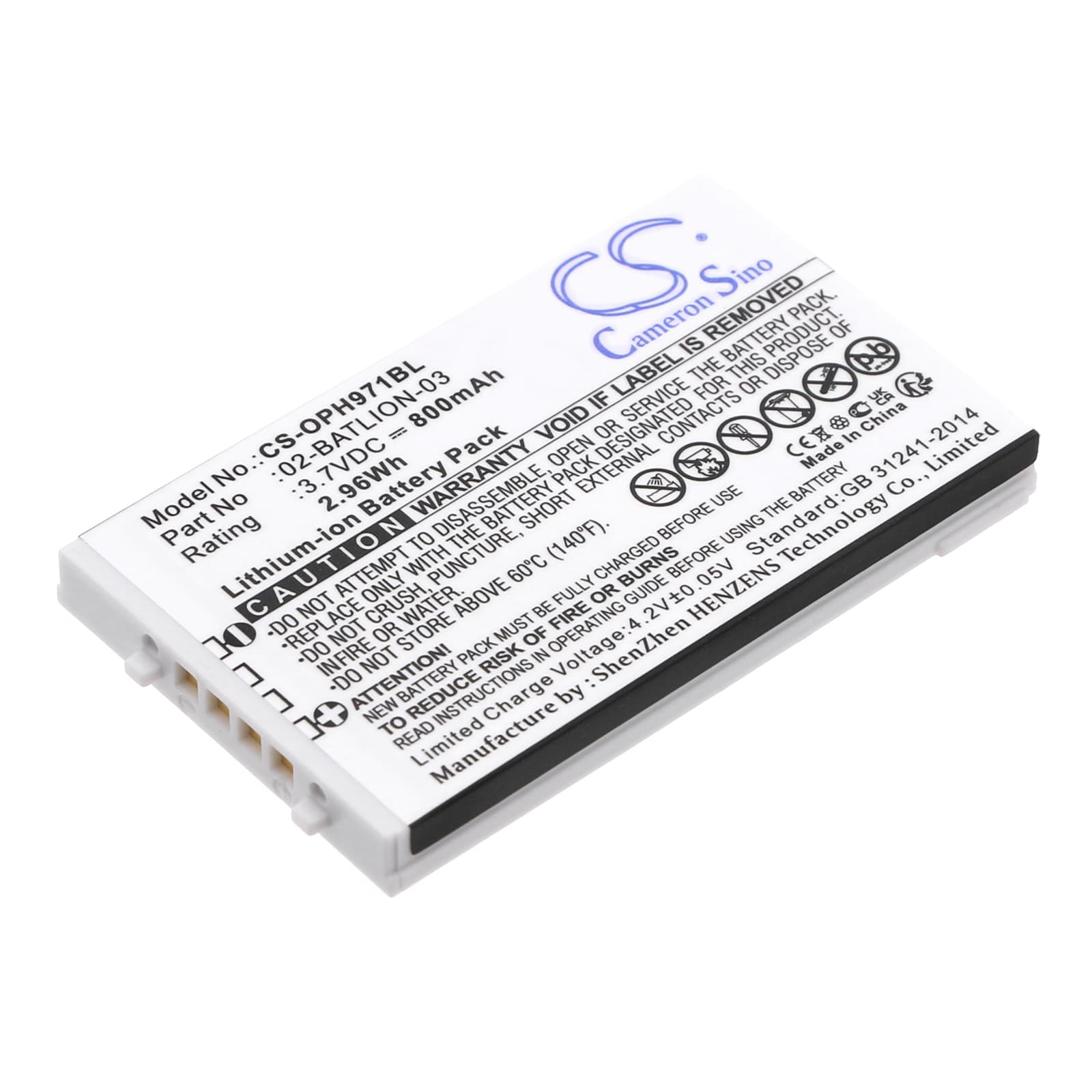

Opticon OPL-9700 Series — 3.7V Li-ion Replacement Battery (02-BATLION-03)
This 3.7V 800mAh Li-ion cell replaces the factory battery in the Opticon OPL-9700 handheld barcode scanner. It also fits the OPL-9712, OPL-9723, and OPL-9724 across the same scanner family. Capacity is 800mAh (2.96Wh) — matched to the original specification.
- OPL-9700 series compatibility: The OPL-9700, OPL-9712, OPL-9723, and OPL-9724 share the same battery bay geometry, connector pinout, and BMS handshake protocol. One cell fits all four without modification.
- Bench tested on actual hardware: We cycled this pack through scan trigger bursts and wireless polling loads on the OPL-9700 platform. The BMS held correct cutoff thresholds at both the low-voltage floor and charge termination point across repeated cycles.
- First-shift preparation: After installing, seat the scanner in its cradle for a full charge cycle before use. Scan trigger inrush current peaks when the cell is near minimum — a fully charged pack prevents false BMS trips during the first high-frequency scan burst of the shift.
Cradle charging error on a new pack
The OPL-9700 cradle reads contact resistance before initiating a charge cycle. If the dock contacts on the scanner or cradle have oxidation or debris, the cradle flags a charging error even with a brand-new cell installed. Remove the scanner, wipe the gold contacts on the battery face and cradle dock with a dry cloth, then reseat firmly. The error clears once contact resistance drops below the cradle's threshold — typically confirmed by the charge LED switching from red to amber within 10 seconds of reseating.
Scanner losing wireless connection during rapid scan bursts
On the OPL-9700, the wireless radio and scan trigger draw current simultaneously during a rapid scan sequence. If the cell voltage sags below 3.4V under combined load, the radio stack resets to protect the processor — which the host system reads as a dropped connection. This is not a radio fault. Charge the pack to full before a high-throughput shift and check that the cradle contact is clean so charge termination completes correctly at 4.2V.
