About this replacement

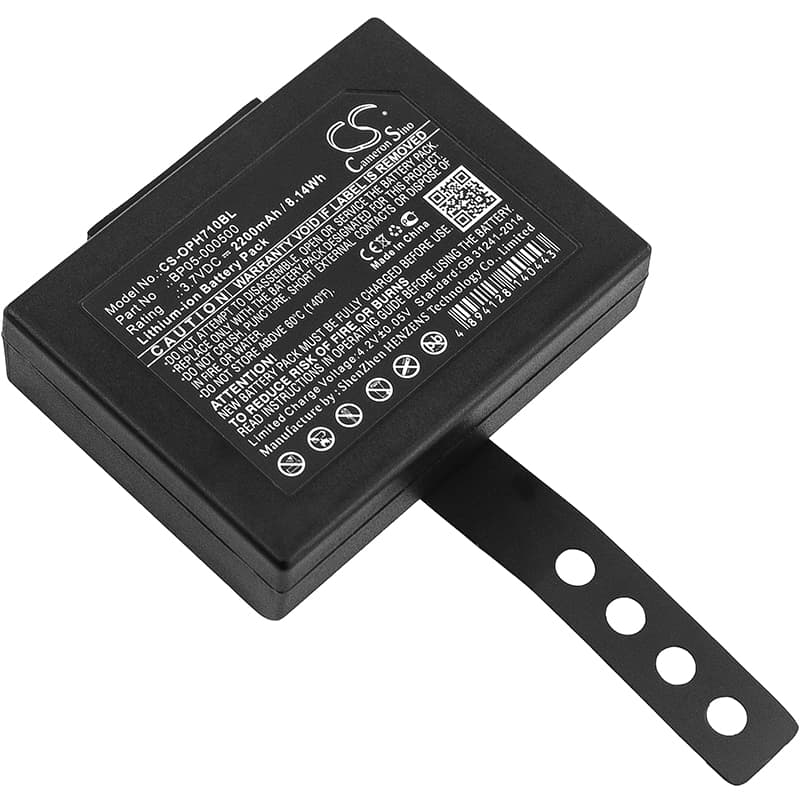

Opticon PHL-7112 / PHL-7114 Series — 3.7V Li-ion Replacement Battery (BP05-000500)
This 3.7V 2200mAh Li-ion battery replaces the OEM pack in the Opticon PHL-7112, PHL-7114, PHL-7142, and PHL-7214 handheld barcode scanners, plus 17 additional PHL-series models. It matches the original BP05-000500 footprint and connector, so the swap takes under a minute. Capacity is 2200mAh (8.14Wh) — identical to the factory specification.
- PHL-7100 series compatibility: The PHL-7112, PHL-7114, PHL-7142, and PHL-7214 all run the same 3.7V power rail, share the same connector pinout, and use the same BMS handshake protocol — that is why a single cell covers the full range without modification.
- Bench tested on actual hardware: We cycled this pack through repeated scan-and-transmit bursts on the PHL-7112 bench unit. The BMS held steady across both the laser trigger inrush and the concurrent Wi-Fi polling load, with no low-voltage cutoff events during sustained high-frequency scanning.
- First-shift cradle charge: After installing the new pack, seat the scanner in its charging cradle for a complete charge cycle before putting it on the pick floor. The scan trigger draws its highest inrush current when the cell is near minimum — a fully charged cell prevents a false BMS trip during the first burst of the shift.
Cradle showing a charging error on a brand-new pack
Charging docks on the PHL series use contact resistance to verify a valid pack before starting the charge cycle. If the contacts on the new battery or the cradle bay are slightly oxidised or dirty, the dock reads an open circuit and flags a fault instead of charging. Wipe the gold contacts on both the battery and the cradle slot with a dry lint-free cloth, then reseat the scanner firmly until it clicks. If the error clears, run one full charge cycle before deploying the unit.
Scanner losing wireless connection mid-shift during rapid scan bursts
The PHL-7112 fires the scan trigger and transmits the decoded data over the wireless link almost simultaneously — that combined inrush can pull the cell voltage down sharply if the pack is aged or partially discharged. A voltage sag below the radio module's minimum rail causes the wireless stack to drop its association before reconnecting seconds later. This becomes more frequent as the shift progresses and the cell drains toward its lower threshold. Starting each shift with a full charge keeps the cell voltage high enough to handle both loads without sag-induced disconnects.
