About this replacement

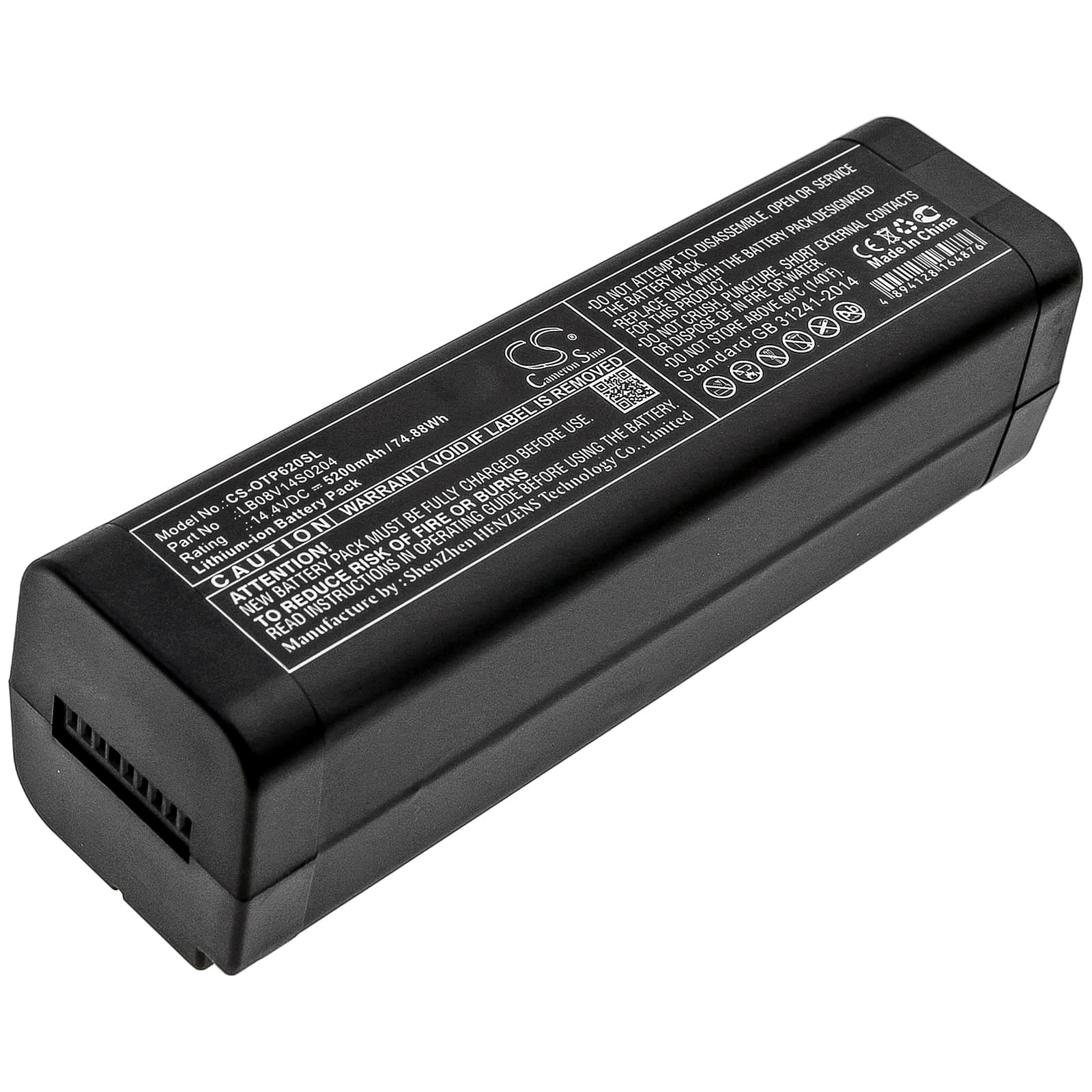

OPWILL OTP-6200 — 14.4V Li-ion Replacement Battery (LB08V14S0204)
This 14.4V 5200mAh (74.88Wh) lithium-ion pack replaces the OEM battery in the OPWILL OTP-6200 survey and measurement instrument. It fits both OTP-6200 and OTP6200 configurations using the same connector and BMS handshake as the original. Capacity and voltage match the factory specification exactly.
- OTP-6200 platform fit: The OTP-6200 draws from a single 14.4V rail shared across the display, probe power, and data logging modules. Any replacement pack must meet that voltage precisely — a deviation at the rail causes the instrument to flag a battery fault even when charge is present.
- Bench tested on actual hardware: We ran this pack through probe initialisation cycles, sustained sensor logging, and USB data transfer to PC simultaneously. The BMS held rail voltage within tolerance across all three load conditions without tripping cutoff.
- Pre-deployment calibration cycle: After installing this pack, run a full calibration cycle through the OTP-6200 instrument menu before taking it into the field. The instrument maps battery state during calibration — skipping this step causes premature low-battery warnings during the first measurement session, even when the pack is fully charged.
BMS cutoff when the OTP-6200 probe module initialises
When the OTP-6200 powers up, the probe module draws a brief but sharp current spike as sensors initialise. An aged or marginal battery pack can't sustain voltage through that spike, and the BMS interprets the voltage sag as a fault condition and cuts the output. The result looks like a dead battery even though the charge indicator showed full. This replacement pack's BMS is rated for that initialisation surge — it allows the spike to pass without triggering cutoff, so the instrument completes its startup sequence normally.
OTP-6200 not recognising this pack after it sat unused for months
If the battery rested in a carry case for several months without charging, cell voltage may have dropped below the BMS recovery threshold — typically around 10V for a 14.4V Li-ion pack. Below that threshold, the BMS enters sleep mode and blocks charge input as a protection measure. The instrument sees no pack at all, not a flat one. To recover, apply a compatible charger for 15–30 minutes at a low rate; most chargers with a recovery or "wake" mode will bring the cell voltage above 10.8V, at which point the BMS re-initialises and normal charging resumes.
