About this replacement

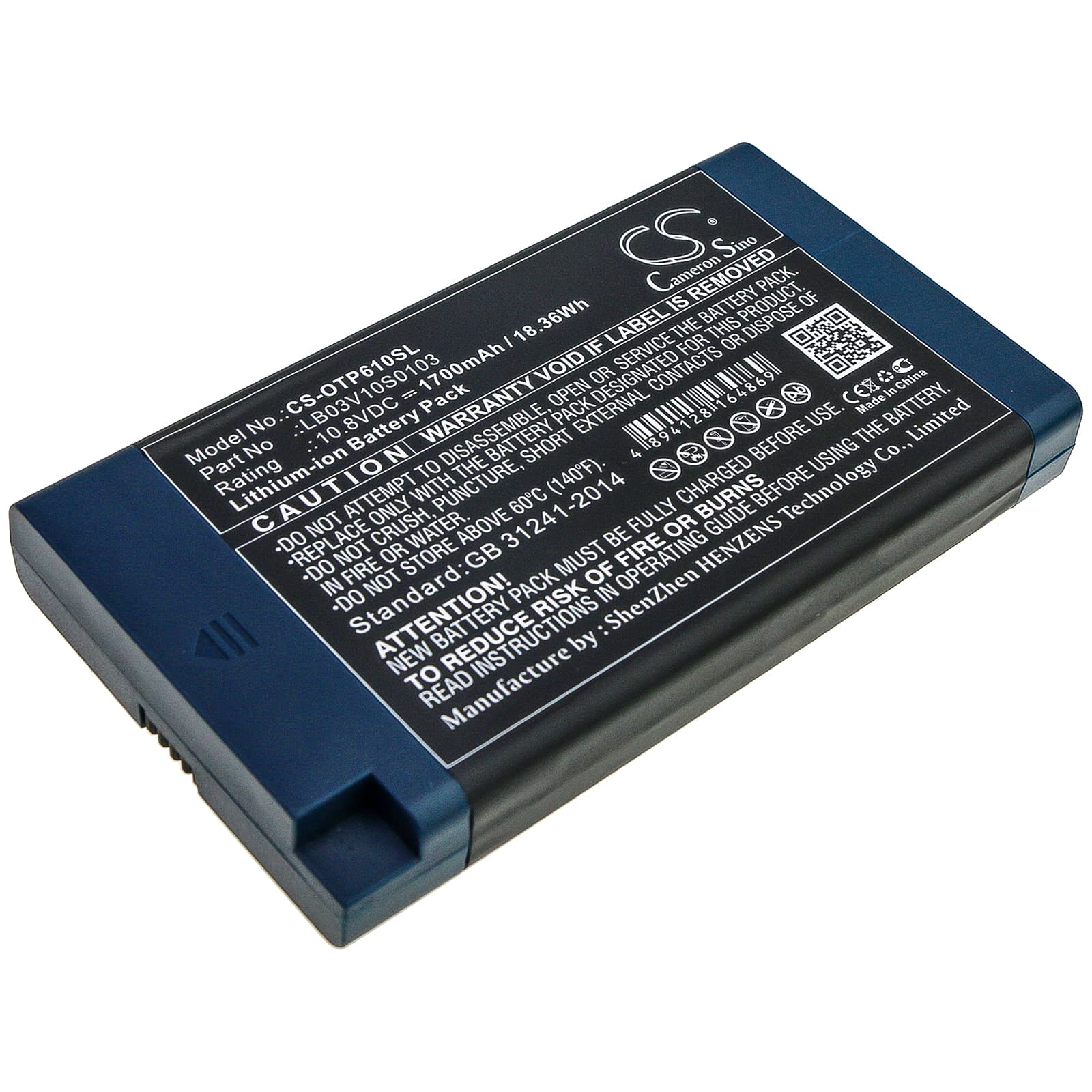

OPWILL OTP6123 / OTP6103 Series — 10.8V Li-ion Replacement Battery (LB03V10S0103)
This is a 10.8V, 1700mAh Li-ion replacement battery for OPWILL surveying and measurement instruments. It fits the OTP6123, OTP6103, OPT6123L, and OTP6105, along with four additional models in the same platform family. The OEM part number is LB03V10S0103.
- OTP6103 / OTP6123 platform compatibility: These models share the same 10.8V power rail, physical form factor, and BMS handshake protocol. The connector and cell configuration are identical across the listed variants, so one pack serves the full instrument family.
- Bench tested on actual hardware: We cycled this pack through instrument power-up, probe initialisation, and sustained sensor logging. The BMS handled the current spike at probe activation without tripping, and cell voltage held stable under continuous measurement load.
- Calibration cycle before first field use: After installing this pack, run a full calibration cycle through the instrument menu before taking it to site. The instrument maps battery state during calibration — skipping this step causes premature low-battery warnings on your first measurement session.
BMS lockout after the OTP6123 sat unused in a carry case for months
Li-ion cells self-discharge slowly in storage. If an OPWILL instrument sits unused long enough, the pack voltage drops below the BMS recovery threshold — typically around 2.5V per cell. At that point the BMS enters a protective lockout state and the instrument will not respond to the power button at all. Connecting the charger immediately and leaving it for 30–45 minutes allows the charger's trickle circuit to bring cell voltage back above the recovery threshold. Once the BMS exits lockout, normal charging resumes automatically.
OTP6123 shuts down mid-measurement with no low-battery warning
This happens when sustained sensor load pulls enough current to cause a momentary voltage dropout at the cell terminals. The instrument's voltage monitor interprets that drop as a critically low cell and triggers an immediate shutdown — even if the charge indicator was showing healthy. It is more common during long logging sessions or when multiple probe modules are active simultaneously. Reducing active probe channels during logging, or checking that cell voltage reads above 10.0V before starting a session, eliminates most of these mid-session shutdowns.
