About this replacement

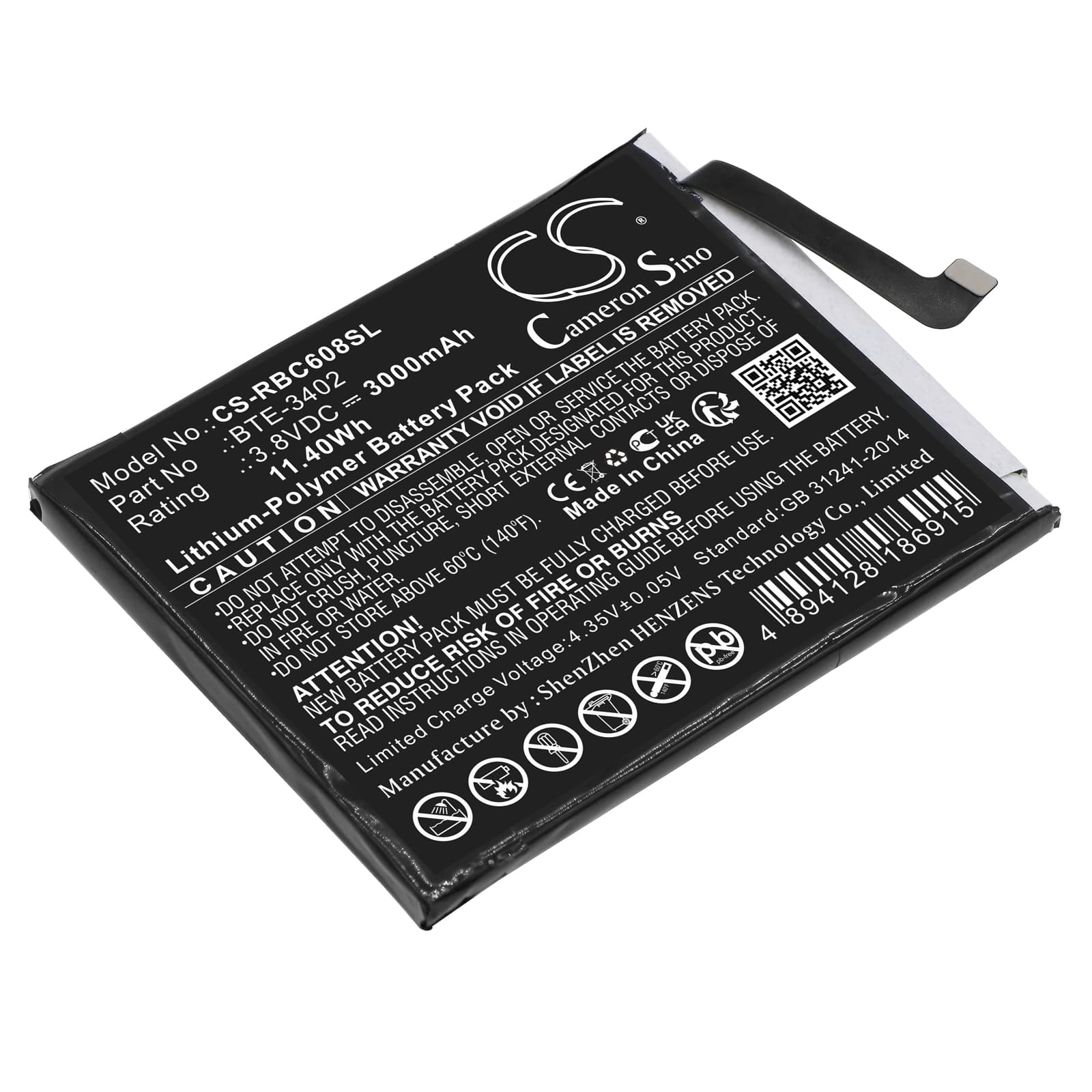

Orbic JOY RC608L — 3.8V Li-Polymer Replacement Battery (BTE-3402)
This 3.8V, 3000mAh Li-Polymer cell replaces the OEM battery in the Orbic JOY, RC608L, ORB608LBVZPP, and Q10 4G. It matches the original BTE-3402 spec for voltage, capacity, and connector type. If your Orbic JOY shuts down unexpectedly or won't hold a charge through a normal day, this cell restores full capacity.
- JOY RC608L / ORB608LBVZPP fit group: These models share the same battery bay dimensions, connector pinout, and charge IC interface. Swapping between them uses the identical BTE-3402 cell — no adapter or rewiring needed.
- Bench tested on actual hardware: We cycled this cell through charge and discharge on the RC608L platform. The BMS communicated cleanly with the charge IC, held the 3.8V nominal rail, and tripped protection correctly at both high-voltage cutoff and low-voltage floor.
- Fuel gauge recalibration tip: On first use after installation, disable fast charging and run one full discharge-to-charge cycle. This lets the fuel gauge IC map the new cell's discharge curve before high-current charging begins — skipping this step causes erratic percentage readings for the first several days.
Why the Orbic JOY reports wrong battery percentage after a cell swap
The JOY's fuel gauge IC stores a learned discharge curve from the original cell. When you fit a new cell, that stored curve no longer matches actual cell behavior — the IC keeps reading against old data. This causes the percentage bar to jump, stall, or drop suddenly. One complete slow-charge cycle forces the coulomb counter to reset and relearn the new cell's voltage-to-capacity relationship. After that cycle, readings stabilize.
Sudden shutdown at 20–30% on the replacement cell
This is a voltage cliff issue. Under modem load or screen brightness spikes, the cell voltage sags below the threshold the OS uses to trigger emergency shutdown — even though the reported percentage says 20–30% remaining. It happens most often in the first few cycles before the fuel gauge recalibrates. Run two full discharge-charge cycles without fast charging, then check whether shutdowns persist. If the cell voltage at shutdown reads below 3.4V under load, the fuel gauge IC has not finished recalibrating — complete a third full cycle.
