About this replacement

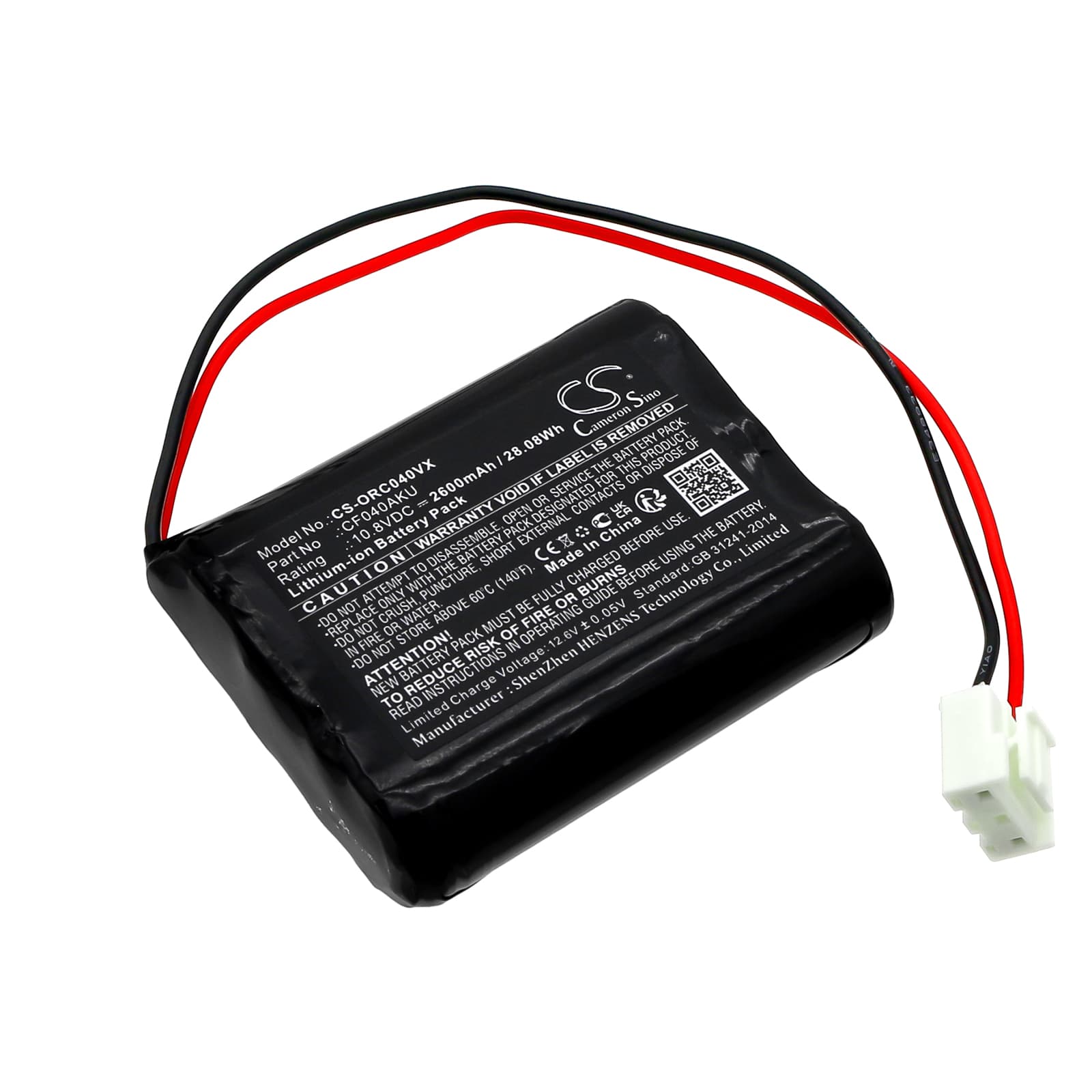

ORCA 040 Series — 10.8V Li-ion Replacement Battery (CF040AKU)
This is a 10.8V, 2600mAh Li-ion replacement battery for the ORCA 040 cordless vacuum cleaner. It matches the OEM part number CF040AKU and restores full power to vacuums where the original cell has faded or failed completely. Voltage and capacity are exact to factory spec.
- ORCA 040 compatibility: The 040 platform runs a 10.8V Li-ion rail with a specific BMS handshake that governs motor start current and cutoff thresholds. This cell meets those parameters — voltage, connector pinout, and BMS communication all match the original pack.
- Bench tested on actual hardware: We cycled this battery through motor-start load on the 040 platform. The BMS handled the inrush current without tripping, held voltage above the low-cutoff threshold under sustained suction, and accepted a full charge cycle without fault codes.
- Dock charging on the ORCA 040: Do not leave the vacuum sitting on the charging dock permanently. The 040 charges via a trickle circuit that does not cut off once full — continuous dock time accelerates capacity fade. Charge to full and remove the vacuum from the dock.
Suction dropping before the battery indicator reaches low on the ORCA 040
This happens because the motor draws more current under a restricted airpath — a partially blocked filter or clogged brush roll forces the motor to work harder than rated load. The BMS reads that elevated draw as a low-voltage condition and begins throttling output before the indicator reflects it. The fix is not the battery — clean or replace the filter first. If suction recovers after that, the cell is functioning correctly and voltage at the motor is staying above the 9.0V cutoff floor.
Motor cuts out mid-clean and then restarts after a short pause
This is a BMS overcurrent trip, not a dead battery. When the brush roll or nozzle is blocked, suction restriction spikes the motor's current draw sharply — the BMS cuts power to protect the cell, then resets after a few seconds once the overcurrent condition clears. Clear the blockage at the brush roll or nozzle, then check the filter. If the cutout stops after clearing the restriction, the battery and BMS are working as intended. If it continues on an unblocked vacuum with a new filter, verify that cell voltage under load is staying above 9.5V.
