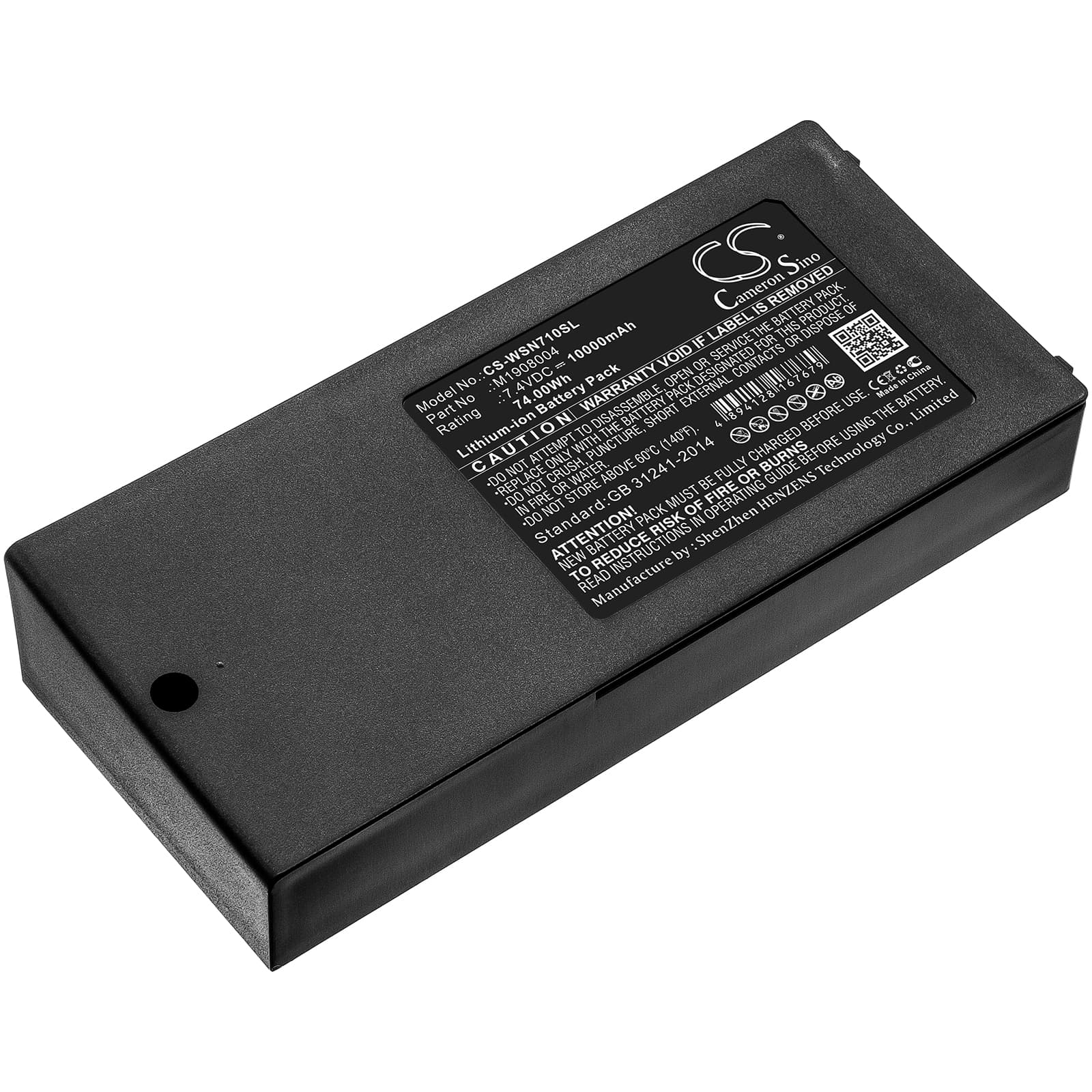

Owon MSO7062TD / MSO7102TD / MSO8202T — 7.4V Li-ion Replacement Battery (M1908004)
This is a 7.4V, 10000mAh (74Wh) Li-ion replacement battery for Owon Powers MSO Oscilloscopes, including the MSO7062TD, MSO7102TD, and MSO8202T. It fits the multi-model MSO series that shares the M1908004 battery format across its portable mixed-signal instrument lineup. The pack slots into the battery bay and connects to the same BMS communication rail as the original cell.
- MSO series compatibility: Owon's portable MSO instruments in this lineup share a common battery bay geometry and 7.4V power rail. The BMS handshake protocol and connector pinout are consistent across MSO7062TD, MSO7102TD, MSO8202T, and the extended fit model list, which is why a single pack covers the full range without hardware modification.
- Bench tested on actual hardware: We cycled this pack through instrument power-on, channel acquisition, and probe initialisation sequences. The BMS held steady through the current spike at probe power-up and did not trip during sustained analog and digital channel logging.
- Post-install calibration cycle: After fitting this pack, run a full calibration cycle through the instrument's system menu before field deployment. The MSO maps battery state during calibration — skipping this step causes the fuel indicator to report premature low-battery warnings on the first measurement session, even with a fully charged pack.
BMS lockout after the MSO sat unused in a carry case for months
Li-ion cells bleed charge slowly during storage. If an Owon MSO sits unused long enough, the pack voltage drops below the BMS's minimum recovery threshold — typically around 2.5V per cell — and the protection circuit opens, refusing charge input. The instrument will show no charge activity even when connected to a known-good adapter. To recover, connect the charger and leave it undisturbed for 20–40 minutes; some BMS controllers require a trickle current at the charge port before they re-engage the main charge path. If the pack does not respond after that window, the cells have likely dropped below 2.0V per cell and the pack needs replacement.
Voltage dropout causing readings to reset or drift mid-logging session
During a sustained logging session with multiple active channels, the MSO draws a consistent load that a degraded or partially charged pack may not sustain cleanly. If the cell voltage sags under that load — even briefly — the instrument's internal regulators can momentarily drop below their operating threshold, causing the acquisition engine to reset or live readings to stutter. This is not a firmware fault; it is a supply voltage issue at the battery terminals. Check the pack's resting voltage after a session: if it reads below 7.0V with charge remaining on the indicator, cell degradation is the cause and the pack should be replaced.
