About this replacement

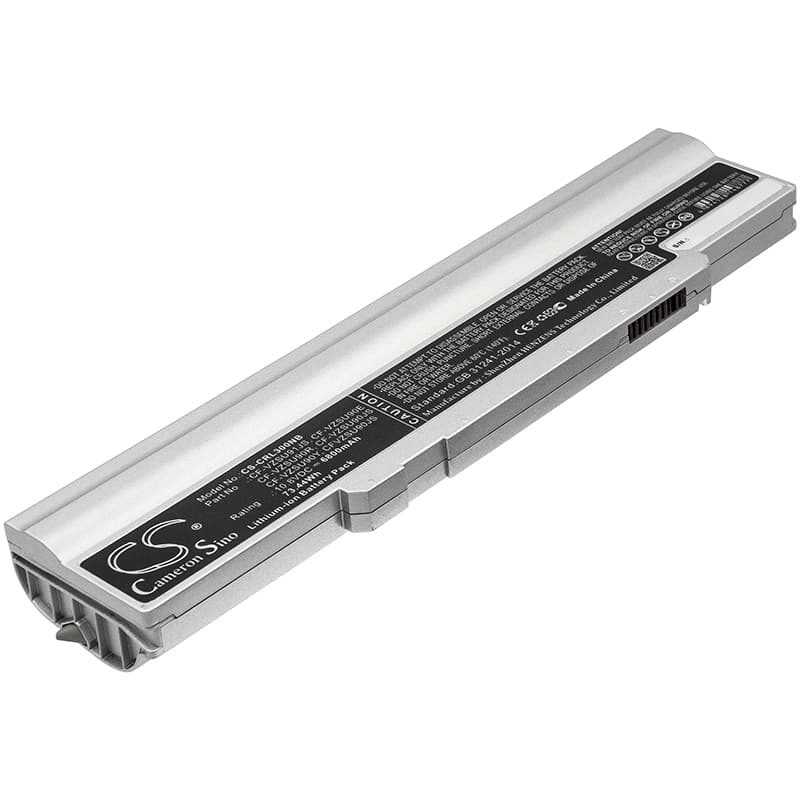

Panasonic CF-LX Series — 10.8V Li-ion Replacement Battery (CF-VZSU90E)
This is a 10.8V, 6800mAh (73.44Wh) Li-ion replacement battery for Panasonic CF-LX series laptops, including the CF-LX3, CF-LX3DDABR, and CF-LX3DDAWR. It cross-references OEM part numbers CF-VZSU90E, CF-VZSU90JS, CF-VZSU90R, CF-VZSU90Y, CF-VZSU91JS, and CFVZSU90JS. Physical dimensions are 203.42 × 49.00 × 22.10mm — confirm fitment against your base tray before installing.
- CF-LX3 platform compatibility: The CF-LX and CF-LX3 share the same 10.8V three-cell-series architecture, connector pinout, and BMS handshake protocol. That common electrical platform is why one part number covers the full CF-LX range, including regional variants like the DDABR and DDAWR.
- Bench tested on actual hardware: We ran this cell through a full charge–discharge cycle on a CF-LX3 unit. The BMS negotiated correctly at first contact, accepted a full charge without interrupting at the BIOS charge limit, and the protection circuit engaged cleanly at the low-voltage cutoff threshold.
- First-cycle learn procedure for CF-LX laptops: After fitting, run one full discharge until the laptop hibernates on its own, then charge uninterrupted to 100% without powering on mid-cycle. This forces the BIOS battery learn cycle to reset against the new cell's actual capacity and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting battery health as poor immediately after fitting this cell
The CF-LX BIOS reads health data from EEPROM registers on the battery controller, not from live voltage. When a new cell is installed, those registers still reflect the degradation profile of the old battery, so the system flags poor health even though the cell is new. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% forces the BIOS to rewrite those registers against the new cell. After one to two complete cycles, the health indicator resets to normal. If the warning persists beyond three cycles, check the battery status page in Panasonic PC Settings Utility for a fault code.
Laptop shuts down abruptly at 20–30% charge shown on screen
This is a voltage cliff, not a capacity fault. Under combined CPU and display load, the cell voltage drops faster than the fuel gauge IC can track, and the laptop hits the hardware cutoff voltage before the percentage reaches zero. It is common in the first few cycles on a new cell because the fuel gauge IC has not yet calibrated its discharge curve against the new chemistry. Run two to three full discharge-to-hibernate cycles to let the IC map the actual voltage-to-percentage curve. After calibration, the shutoff point should track accurately down to approximately 3.0V per cell.
