About this replacement

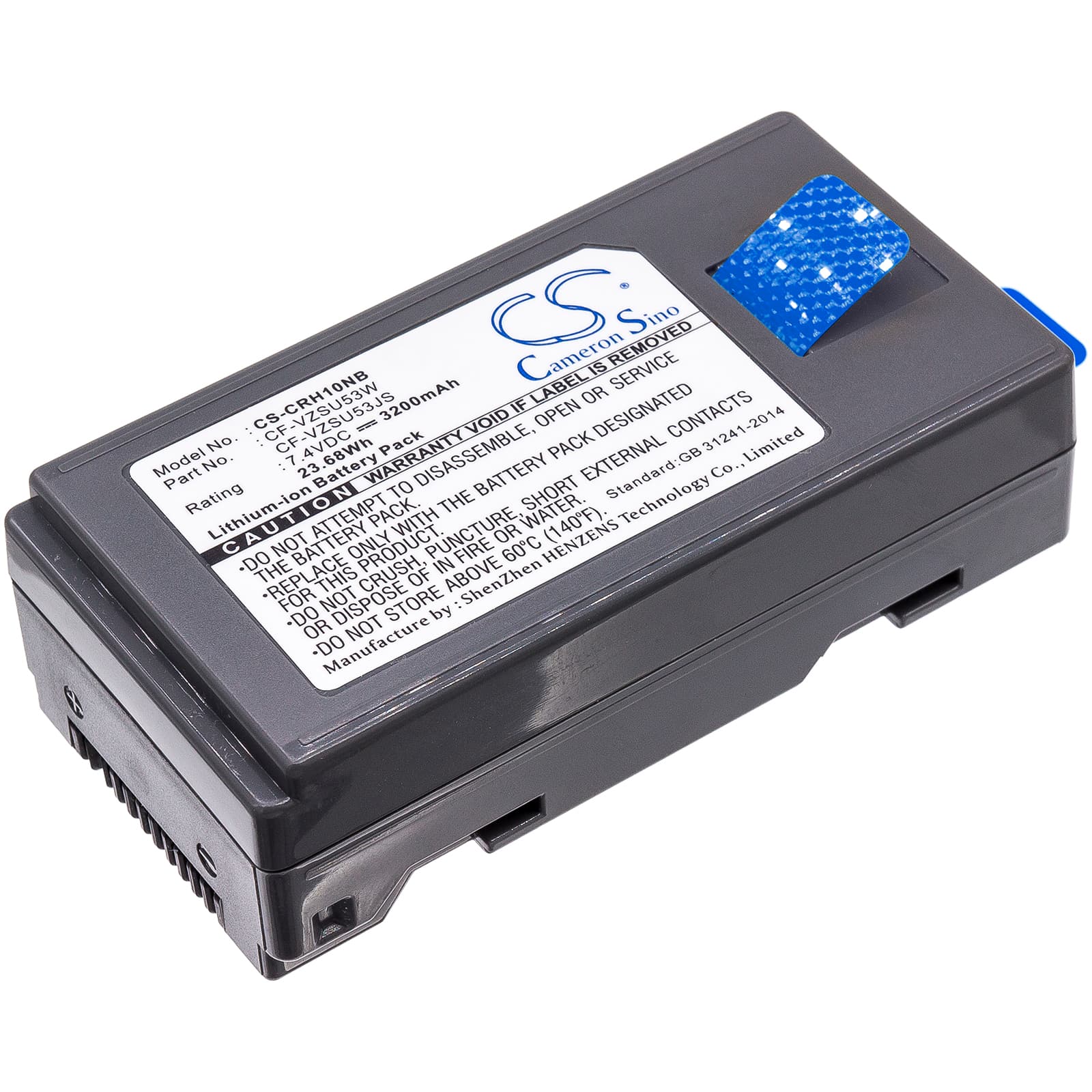

Panasonic CF-U1 / CF-H1 Toughbook — 7.4V Li-ion Replacement Battery (CF-VZSU53W)
This is a 7.4V, 3200mAh Li-ion replacement battery for the Panasonic Toughbook CF-U1 and CF-H1 ultraportable field computers. It cross-references OEM part numbers CF-VZSU53W, CF-VZSU53JS, and CF-VZSU53AW. Capacity is 23.68Wh, matching the original cell specification.
- CF-U1 and CF-H1 compatibility: Both models share the same 7.4V battery bay, connector pinout, and BMS communication protocol — one cell fits both. The SMBus handshake is identical across the CF-U1 and CF-H1 production runs, so the BIOS recognises this cell without firmware flags.
- Bench tested on actual hardware: We cycled this cell on a CF-U1 unit through charge, full load discharge, and BMS cutoff. The protection circuit triggered cleanly at the low-voltage threshold, and charge acceptance held steady across three consecutive cycles.
- Post-install calibration on the CF-U1: After fitting, run the battery down to hibernate cutoff under normal use — screen on, CPU active — then charge uninterrupted to 100%. This resets the BIOS battery learn cycle and clears the inaccurate health warning that appears after every cell swap.
BIOS reporting poor battery health immediately after fitting a new cell
The CF-U1 BIOS reads health data from the battery's EEPROM, which stores cycle count and state-of-health values written by the original cell. A new cell arrives with factory EEPROM data that does not match the host system's learned parameters. Until a full discharge-to-cutoff and uninterrupted recharge cycle is completed, the BIOS treats the cell as degraded. After one full learn cycle, the health indicator resets to normal.
CF-U1 shutting down at 25–30% battery shown on screen
This is a fuel gauge calibration issue, not a faulty cell. The fuel gauge IC on the CF-U1 uses a coulomb-counting model calibrated to the old cell's discharge curve. When a new cell is installed, the stored curve no longer matches actual cell chemistry, so the gauge calls empty too early. Run two to three full discharge-to-hibernate cycles without interruption. By the third cycle the gauge IC recalculates its empty threshold and the shutdown point corrects to below 5% shown.
