About this replacement

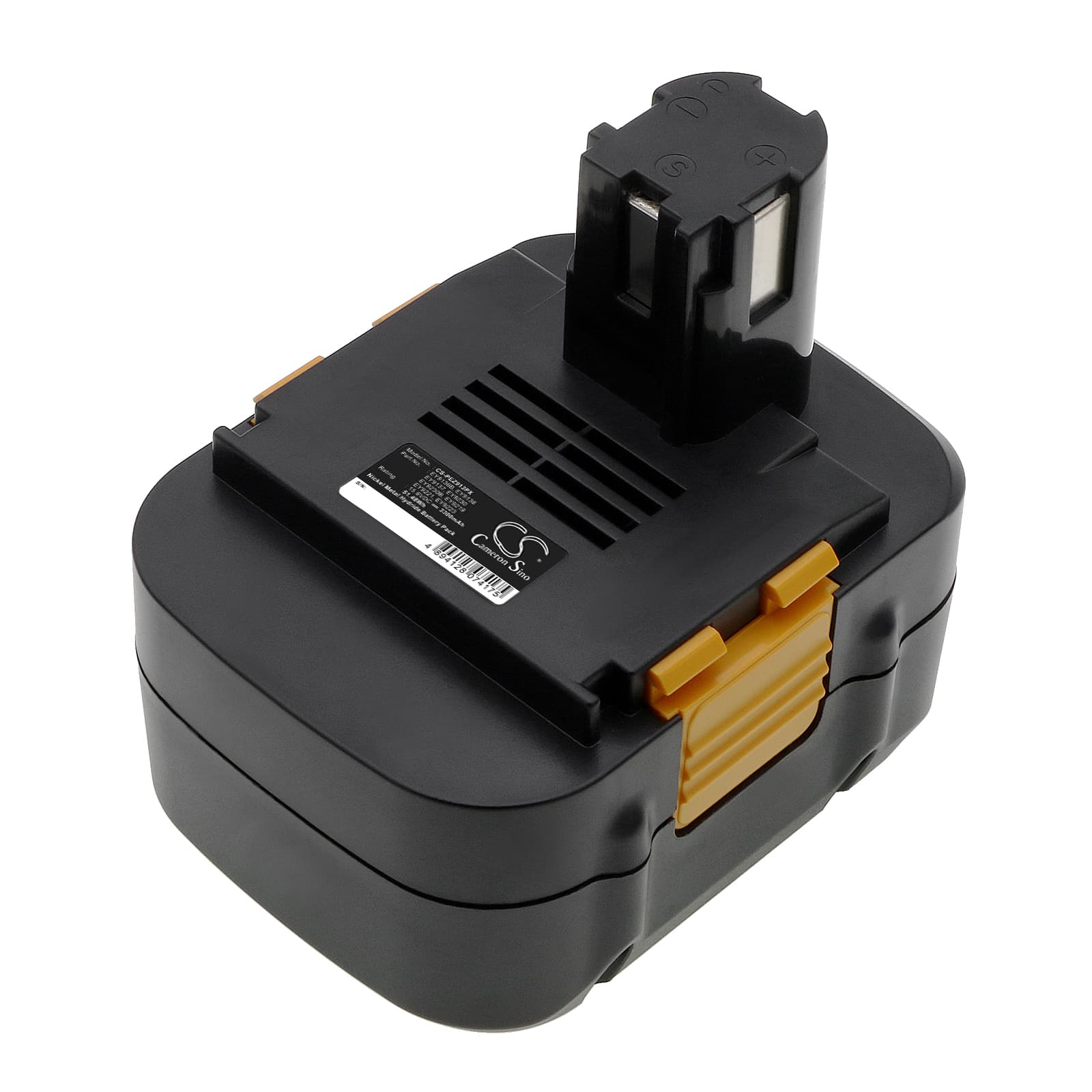

Panasonic EY3530FQMKW Series — 15.6V Ni-MH Replacement Battery (EY9136B)
This is a 15.6V Ni-MH battery rated at 3300mAh (51.48Wh), built to replace the OEM EY9136B pack. It fits the Panasonic EY3530FQMKW and EY3530NQWKW cordless drill and driver series, along with over 28 additional models sharing the same 15.6V platform. Voltage, terminal layout, and BMS handshake all match the original specification.
- EY3530 and EY3531 platform fit: These models share a common 15.6V power rail, identical terminal block geometry, and the same BMS communication protocol — which is why one battery pack spans the full range from EY9136 through EY9239B without modification.
- Bench tested on actual hardware: We cycled this pack on an EY3530 drill through repeated trigger-pull events and monitored the BMS overcurrent response. The protection circuit handled motor-start inrush correctly and did not false-trip under standard torque loads.
- Ni-MH break-in on first use: On first use, run the tool at half load for two cycles before applying maximum torque. Ni-MH cells need light cycling to reach full charge acceptance — pushing full inrush from the first trigger pull can cause the BMS to set a conservative overcurrent threshold that limits peak output.
BMS cutoff on EY3530 motor-start inrush surge
When a cordless drill starts under load, current draw spikes sharply before the motor reaches operating speed. On the 15.6V Ni-MH platform, this inrush can briefly exceed 20A. The BMS monitors this spike and will cut output if it reads above the overcurrent threshold — which it sets based on early cycle data. A pack that was stored long-term or that skipped the break-in cycles is more likely to trip on the first heavy-load pull. Running two light-load cycles first allows the BMS to recalibrate before it sees full motor-start current.
Tool bogs under sustained load after the pack reads full
Voltage sag is the most common cause of a drill that reads charged but loses torque mid-task. Under sustained draw, Ni-MH cells drop their terminal voltage faster than the state-of-charge indicator tracks. Check rail contact resistance first — corroded or bent terminals at the battery interface add resistance and amplify the sag. Clean the contacts and re-seat the pack. If the tool still bogs, measure the pack's voltage under load: anything dropping below 13.5V during operation points to cell degradation rather than a contact fault.
