About this replacement

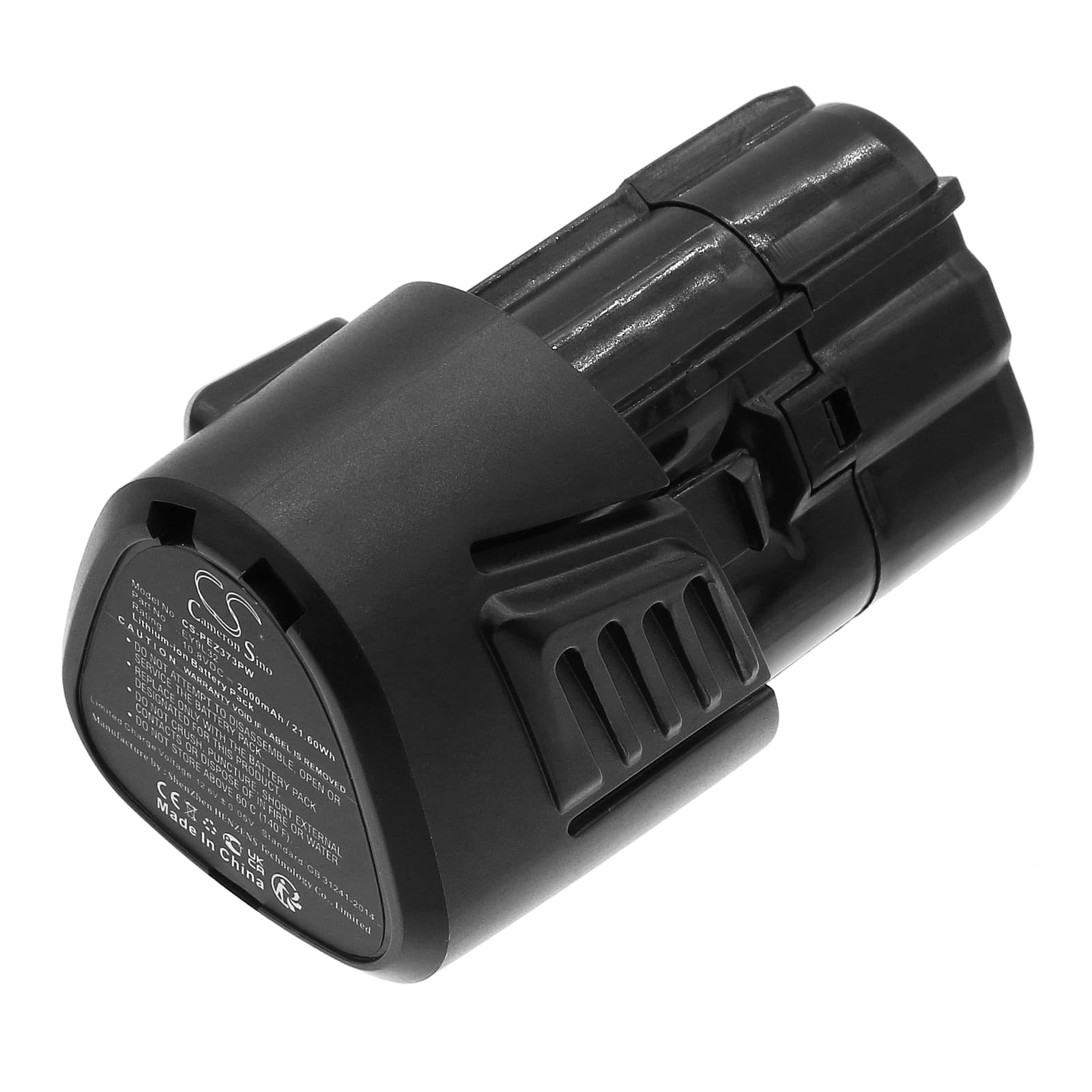

Panasonic EY3732 / EY7430 Series — 10.8V Li-ion Replacement Battery (EY9L32)
This is a 10.8V 2000mAh Li-ion battery pack for the Panasonic EY3732 and EY7430 cordless drill/driver series. It replaces OEM part numbers EY9L32 and EY9L32B. The pack slots into the same slide-rail mount and uses the same BMS handshake as the original Panasonic cells.
- EY3732 and EY7430 platform compatibility: Both the EY3732 and EY7430 run the same 10.8V rail with an identical connector footprint and BMS communication protocol. One pack covers the full range without adapter or modification.
- Bench tested on actual hardware: We cycled this pack through trigger-pull inrush events on the EY3732 drill. The BMS held across repeated motor-start current spikes without tripping overcurrent protection during normal drilling sequences.
- First-use load break-in on this drill: Run the EY3732 at half load — light drilling, no high-torque fastener driving — for the first two charge cycles. This lets the BMS log the motor's inrush current profile and calibrate overcurrent thresholds before you push maximum torque.
BMS cutoff on EY3732 motor-start inrush surge
When you pull the trigger on a cordless drill, the motor draws a brief but sharp inrush current — often three to five times the running draw. On a new or recently stored pack, the BMS may read that spike as an overcurrent event and cut power immediately. This is not a fault with the pack; it is the protection circuit doing its job before it has profiled the motor load. Running two break-in cycles at reduced load trains the BMS to recognise the EY3732's normal inrush signature and raises the effective trip threshold for real-world use.
Charger not recognising the pack after extended storage
Li-ion packs that sit unused for several months can drop below the charger's minimum acceptance voltage — typically around 2.5V per cell. When that happens, the Panasonic charger blinks an error pattern and refuses to begin a charge cycle. The fix is a brief trickle pre-charge to bring each cell back above 3.0V before the charger switches to its normal CC/CV profile. If your charger supports a recovery or conditioning mode, use it; otherwise, a compatible charger with a wake-up function will bring the pack back to full acceptance voltage before proceeding.
