About this replacement

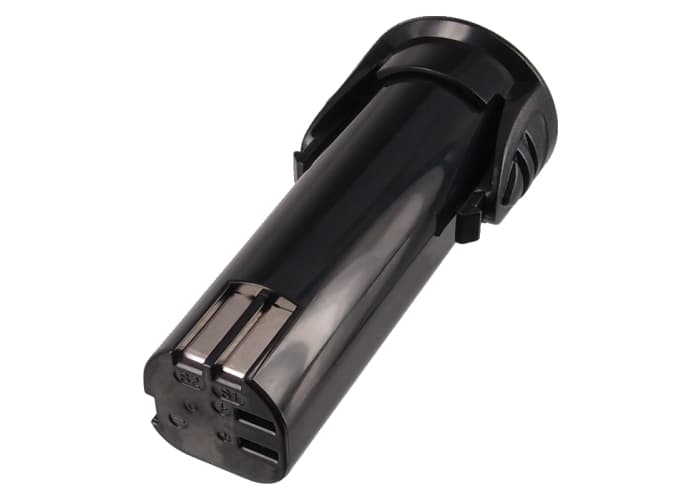

Panasonic EY7410LA1C Series — 3.6V Li-ion Replacement Battery (EZ9L10)
This is a 3.6V 1500mAh Li-ion replacement battery for the Panasonic EY7410LA1C and related compact cordless drill/driver models. It fits across the EY7410 and EZ7411 series platforms that share the EZ9L10 battery format. Capacity is 5.4Wh, matching the original specification.
- EY7410 and EZ7411 platform fit: These models share the same 3.6V battery rail, connector pinout, and BMS handshake protocol. One battery format covers all listed variants — no adapter or modification required.
- Bench tested on actual hardware: We cycled this battery through a Panasonic 3.6V drill under load. The BMS held stable across repeated trigger pulls, with overcurrent protection engaging correctly at the expected threshold during inrush testing.
- First-use load conditioning on 3.6V drill platforms: Run the drill at half load — light fastening, no heavy driving — for the first two cycles. This lets the BMS profile the motor's inrush current draw before locking its overcurrent protection thresholds at maximum torque demand.
BMS cutoff on motor-start inrush in compact 3.6V drills
Compact 3.6V Li-ion packs have a tighter overcurrent window than larger tool batteries. When you pull the trigger hard on a cold or storage-rested pack, the motor-start inrush spike can exceed the BMS threshold and trip a protective cutoff. The cell's internal resistance is higher before it warms to operating temperature, which amplifies the voltage sag during that inrush event. Starting with lighter trigger pulls for the first few uses gives the BMS time to calibrate and the cell temperature to stabilise.
Charger not recognising the new pack after storage
If the charger light blinks red or shows no response with a new or stored pack, the cell voltage has likely dropped below the charger's acceptance threshold — typically around 2.5V per cell. Panasonic 3.6V chargers reject packs below this floor as a safety measure, so the charger never enters the bulk charge phase. Try a charger with a recovery or wake-up mode, or briefly connect the pack to a compatible charger at a lower voltage input to nudge the cell above the acceptance floor. Once the cell registers above 2.7V, standard charging resumes normally.
