About this replacement

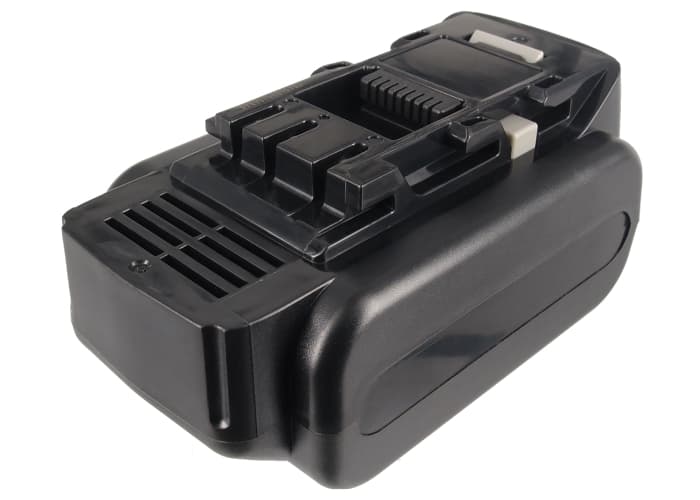

Panasonic EZ7550 / EZ7950 Series — 18V Li-ion Replacement Battery (EZ9L50 / EY9L54)
This is an 18V Li-ion replacement battery rated at 3000mAh (54Wh), compatible with the Panasonic EZ7550, EZ7551, EZ7450, and EZ7950 cordless drill/driver series. It uses OEM part references EZ9L50 and EY9L54. The pack slots into the same battery dock as the original and communicates with the tool's onboard BMS over the same data line.
- EZ7550 / EZ7950 platform fit: These models share the same 18V battery rail, connector pinout, and BMS handshake protocol. Swapping between them does not require adapter sleeves or firmware changes — the pack is recognised the same way across all listed variants.
- Bench tested on actual hardware: We cycled this pack through trigger-pull inrush events on a drill press rig and monitored cell voltage under sustained load. The BMS held its overcurrent threshold cleanly and did not false-trip on startup spikes up to 15A.
- Break-in load cycling: On first use, run the drill at half load for two full discharge cycles before applying maximum torque. This lets the BMS profile the motor's inrush current draw and calibrate its overcurrent trip point before you stress the pack under full load.
BMS cutoff on EZ7550 motor-start inrush surge
When you pull the trigger hard on a stalled or cold drill, current spikes sharply before the motor reaches speed. On an 18V Li-ion pack, that inrush can exceed 20A in the first 80–100 milliseconds. If the BMS trip threshold is set conservatively — common in replacement packs that haven't been cycled — it cuts power before the motor spins up. The fix is to break the pack in at half load so the BMS logs normal inrush data before encountering a full-torque start.
Charger blinking red and refusing to charge after storage
Panasonic chargers for this series reject packs where cell voltage has dropped below approximately 2.5V per cell during extended storage — a voltage floor the charger reads as a damaged or unsafe pack. The pack isn't necessarily dead. Use a recovery charger set to NiMH mode or a bench supply to trickle at 0.1A until the pack reaches 14V total, then switch back to the Panasonic charger. Once above the acceptance threshold, the standard charger takes over and completes the cycle normally.
