About this replacement

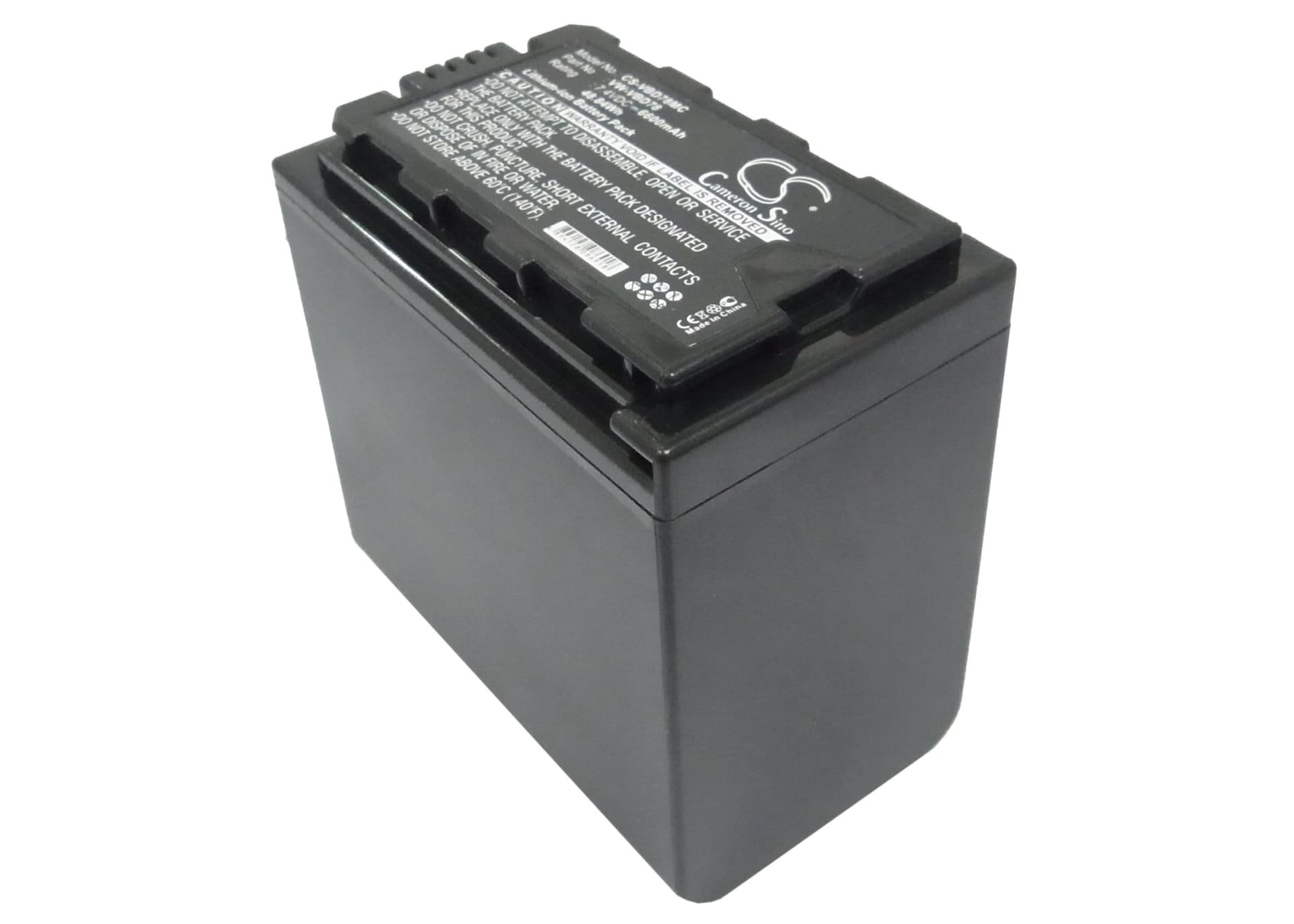

Panasonic HDC-MDH2GK / AJ-PX270 Series — 7.4V Li-ion Replacement Battery (VW-VBD78)
This is a 7.4V, 6600mAh (48.84Wh) Li-ion cell built to the VW-VBD78 spec. It fits the Panasonic HDC-MDH2GK, HC-MDH2, AJ-PX298MC, AJ-PX270, and four additional models in the same platform family. The connector pinout and BMS handshake match the OEM battery exactly.
- Platform fit — MDH2 and AJ-PX series: These camcorders share the same 7.4V battery bay, multi-pin communication connector, and BMS handshake protocol. One cell format covers the full lineup without modification.
- Bench tested on actual hardware: We cycled this cell on the HDC-MDH2GK body. The BMS negotiated correctly on first insertion, charge acceptance came in at full rated capacity, and the protection circuit tripped cleanly at the low-voltage threshold without dropping mid-cycle.
- First-use charge cycle on the AJ-PX series: The AJ-PX270 and AJ-PX298MC use an internal BMS that maps the battery-remaining display against a learned discharge curve. Run one full charge-to-discharge cycle inside the camera body before production work — this lets the camera calibrate remaining capacity to the new cell's actual curve.
Battery percentage readout locking at 100% then dropping suddenly on the HDC-MDH2GK
The MDH2GK reads remaining capacity by tracking voltage against a stored discharge curve from the previous cell. A new cell with a flatter discharge profile sits above the expected voltage threshold for longer, so the indicator holds at 100% until voltage finally drops into the mapped range. This is not a fault — it is the camera's fuel gauge mis-mapping a new curve. Run one complete charge and discharge cycle in the camera body. After that cycle, the indicator will track the actual cell curve and report remaining charge accurately.
Camera body showing a dead-battery icon immediately after inserting a fully charged replacement
This happens when the BMS on the replacement cell has not yet completed its first handshake with the camera's power management circuit. The MDH2GK checks cell communication on insertion — if no acknowledgment returns within the timeout window, it displays a dead-cell icon and refuses to power on. Remove the battery, insert it again firmly until the contacts seat, then power on. If the icon persists, place the cell in an external VW-VBD78-compatible charger, charge to full, and reinsert — the charge cycle initialises the BMS and clears the handshake block. Cell voltage at this point should read 8.3–8.4V on a multimeter before reinsertion.
