About this replacement

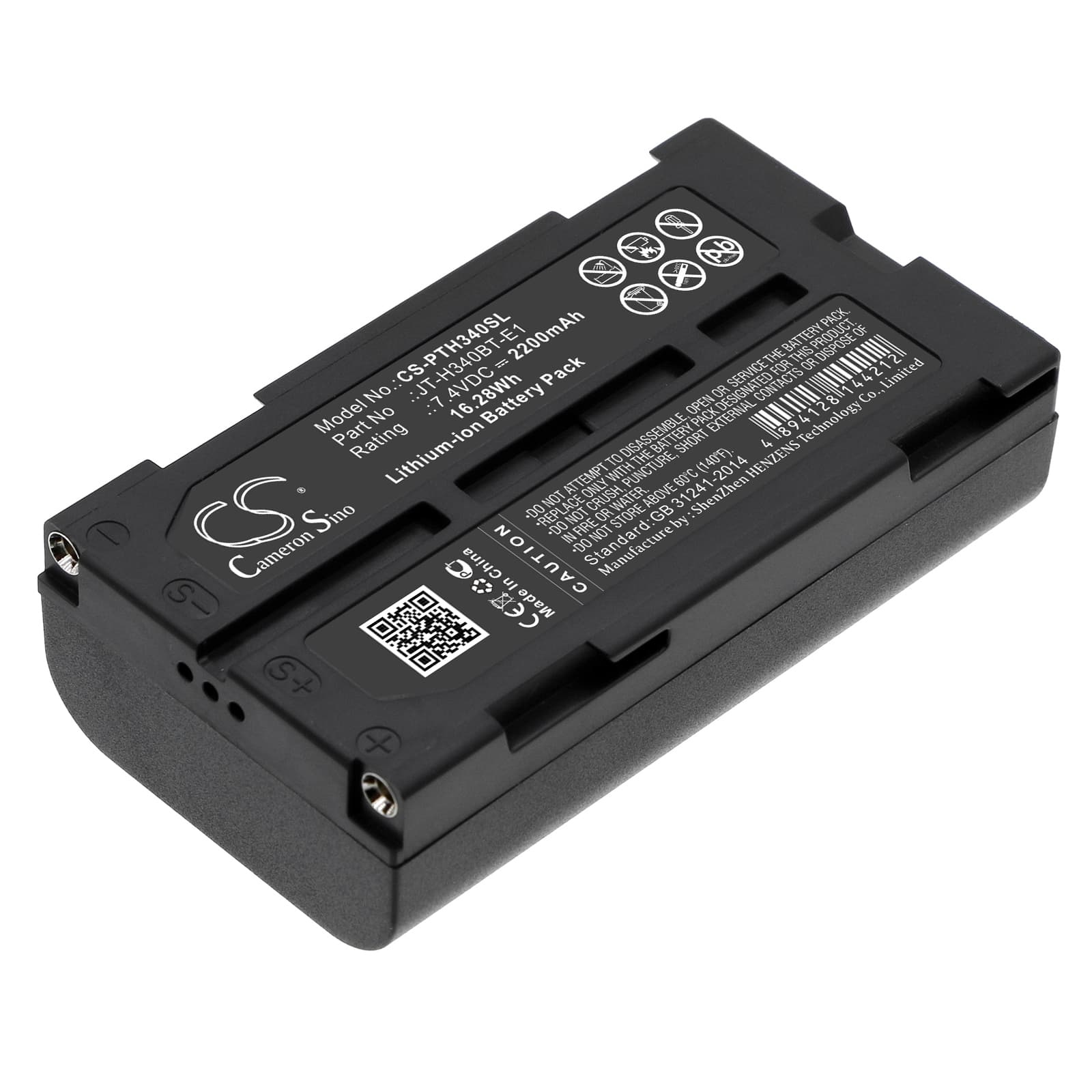

Panasonic JT-H340PR Series — 7.4V Li-ion Replacement Battery (JT-H340BT-E1)
This 7.4V 2200mAh Li-ion battery replaces the OEM pack in the Panasonic JT-H340PR, JT-H340PR1, and JT-H340BT-10 mobile thermal printers. These are field-use receipt and label printers — the kind technicians and delivery teams carry on-site. The original battery degrades with regular charge cycles, and this replacement restores full operating capacity.
- JT-H340PR, JT-H340PR1, JT-H340BT-10 compatibility: All three models share the same battery bay geometry, 7.4V voltage rail, and BMS communication protocol — the JT-H340BT-E1 and JT-H340BT-E2 part numbers are interchangeable across this series with no connector or firmware conflict.
- Bench tested on actual hardware: We ran this cell through charge cycles on the JT-H340PR and confirmed the BMS handshake initialised correctly, charge termination triggered at full capacity, and thermal head voltage stayed within the stable operating band throughout the print cycle.
- First-use print sequence: After installing, charge fully and print five test receipts before deploying in the field. The paper feed motor draws a short current spike on each feed cycle — running this sequence confirms the BMS current profile is correctly calibrated for the new cell.
Why the JT-H340PR goes silent after sitting unused for weeks
Li-ion cells self-discharge during storage. If the JT-H340PR sits unused long enough, the battery voltage drops below the BMS minimum threshold — typically around 6.0V for a 7.4V nominal pack. At that point, the printer won't power on, and the charger may show no charge activity. This is not a dead battery — it's a protection lockout. Connect it to the OEM charger and leave it for 30–60 minutes; most BMS circuits will recover the cell once the charger applies a trickle pre-charge and voltage climbs back above the lockout floor.
Print lines fading or skipping on a battery that shows charged
The thermal print head on the JT-H340PR requires a stable voltage to heat each element consistently — voltage variation of even 0.3–0.5V across the head causes uneven element temperature, which shows up as faded lines or missing rows in the print. A degraded original battery may show "full" on the indicator but sag under load when the head fires. If print quality drops mid-job or worsens as the charge level falls, the cell is no longer holding voltage under thermal head current draw. Replacing the battery and running the five-receipt calibration sequence should restore consistent output.
