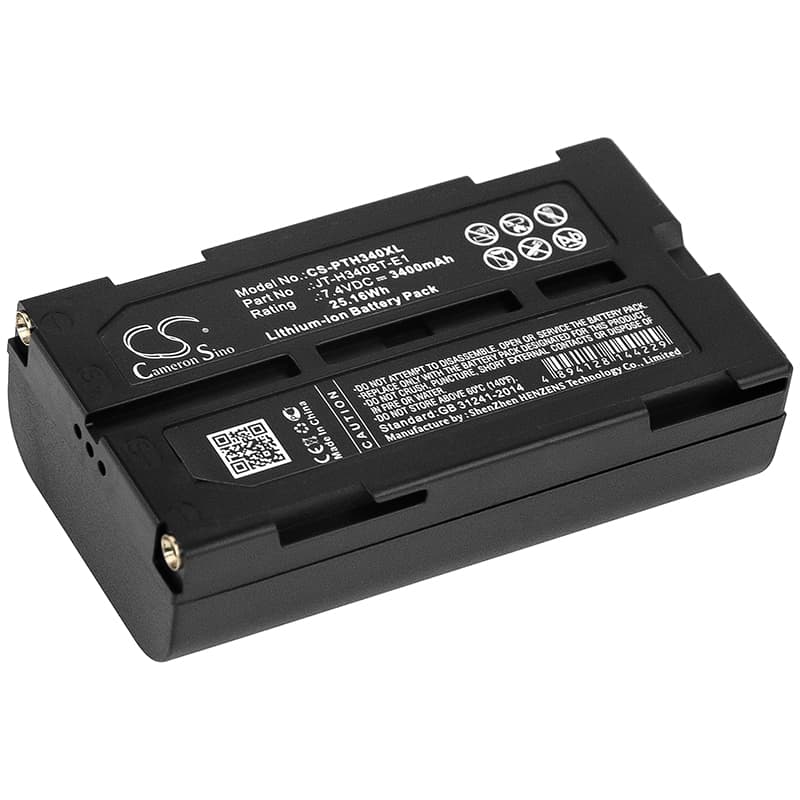

Panasonic JT-H340PR Series — 7.4V Li-ion Replacement Battery (JT-H340BT-E1)
This 7.4V, 3400mAh Li-ion battery replaces the original pack in the Panasonic JT-H340PR, JT-H340PR1, and JT-H340BT-10 mobile thermal printers. These are handheld receipt and label printers used in field sales, logistics, and retail environments where wall power is not available. Capacity is 25.16Wh, matching the original specification.
- JT-H340PR and JT-H340BT-10 compatibility: Both models run on the same 7.4V two-cell Li-ion architecture and share the same connector and BMS handshake protocol — one battery pack covers the full JT-H340 line without modification.
- Bench tested on actual hardware: We ran this pack through the JT-H340BT-10's BMS communication cycle and confirmed correct charge acceptance, cell balancing response, and thermal head power delivery under continuous print load.
- First-deployment print sequence: After installing, charge fully, then print five test receipts before putting the unit into service. The paper feed motor draws a short current spike on each feed cycle — running this sequence lets the BMS settle its current profile for the new cell and confirms correct torque output from the first shift.
Why the JT-H340PR stops printing after sitting unused for weeks
Li-ion cells in mobile printers self-discharge at roughly 1–3% per month under normal storage, but the JT-H340PR's BMS has a low-voltage lockout that triggers below approximately 6.0V pack voltage. Once that threshold is crossed, the printer powers on but sends no drive signal to the thermal head or paper feed motor. The fix is a slow charge — connect the printer to the charger for at least 90 minutes before attempting a print job. If the BMS does not release the lockout after a full charge cycle, the original cell has likely dropped below the recovery threshold and replacement is required.
Bluetooth drops mid-job on the JT-H340BT-10
The JT-H340BT-10's Bluetooth radio pulls a separate power rail from the same battery pack as the thermal head and feed motor. When battery charge falls below roughly 30%, voltage sag during a print stroke can momentarily starve the radio, causing the host app to report a disconnection even though the printer appears powered. This is not a radio fault — it is a load-sharing issue at low state of charge. Recharge to above 50% before starting multi-label or multi-receipt jobs to keep the radio rail stable throughout the print run.
