About this replacement

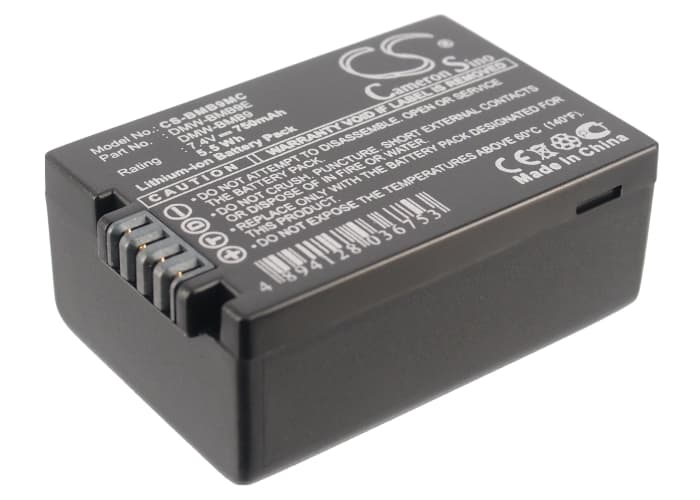

Panasonic Lumix DMC-FZ40 Series — 7.4V Li-ion Replacement Battery (DMW-BMB9)
This 7.4V, 750mAh Li-ion cell replaces the OEM DMW-BMB9 battery in the Panasonic Lumix DMC-FZ40, FZ100, FZ40K, FZ47, and compatible bridge cameras. It fits the same slot, uses the same contact layout, and meets the original voltage spec. Capacity is 750mAh (5.55Wh) — matching the factory figure.
- FZ40 and FZ100 platform fit: Both cameras share the DMW-BMB9 footprint, contact pinout, and 7.4V supply rail. The BMS in each body reads the same handshake, so one cell works across the range without modification.
- Bench tested on actual hardware: We cycled this cell through the FZ40 body and a compatible OEM charger. The BMS accepted the cell on first charge, reported remaining capacity without flagging an error, and held voltage above the cutoff threshold through a full discharge cycle.
- First-cycle charge in the camera body: Insert the new cell and charge it once directly inside the FZ40 or FZ100 before shooting. Some Panasonic bridge camera bodies need that first in-body charge cycle to map the cell's discharge curve and display accurate battery-remaining readings.
Flash recycling lag on a new DMW-BMB9 replacement
The FZ40's built-in flash draws recharge current from the same cell supplying the sensor, processor, and optical image stabiliser. When any of those systems run concurrently, the capacitor recharge cycle takes longer. This is a current-sharing issue, not a cell fault. If recycling lag appears on a fresh cell, it typically means the camera is running continuous AF or optical zoom during the flash cycle — reducing active stabilisation before a flash sequence shortens the lag noticeably.
Battery percentage jumping erratically after fitting a replacement cell
The FZ40 estimates remaining charge by mapping terminal voltage to a built-in discharge curve calibrated to the OEM cell. A new third-party cell has a slightly different discharge slope, so the camera's voltage thresholds don't line up at first. The indicator can jump — say, from 60% to 30% — without actual sudden power loss. Run two or three full charge-discharge cycles through the camera body and the BMS recalibrates its mapping to the new cell's curve. After conditioning, the percentage display stabilises.
